Description

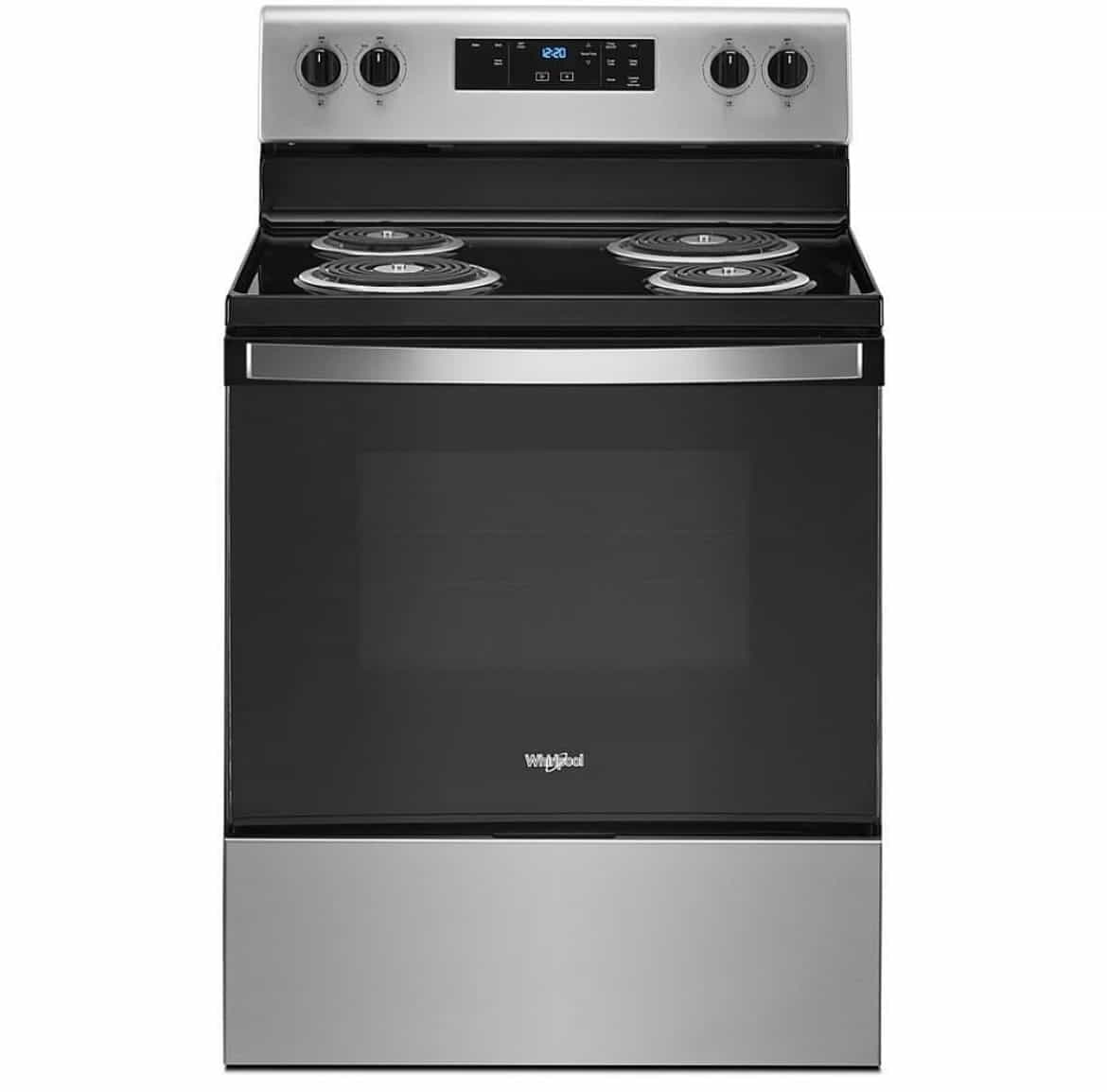

Whirlpool Electric Range 4.8 cu ft 30″ Width Stainless Steel YWFC3150SOJS
New Open Box
| Specification | Value |
|---|---|
| Capacity | 4.8 cu. ft. |
| Common Size | 30 in |
| Width | 29-7/8 in |
| Height | 47-7/8 in |
| Depth | 27-3/4 in |
| Depth (closed, excluding handles) | 25-313/1000 in |
| Depth (closed, including handles) | 28 in |
| Depth with Door Open 90° | 46-86/125 in |
| Cutout Width | 30 in |
| Cutout Height | 36 in |
| Cutout Depth | 24 in |
| Oven Interior Width | 24-1/2 in |
| Oven Interior Height | 18-1/8 in |
| Oven Interior Depth | 18-1/2 in |
| Net Weight | 136 lbs |
| Gross Weight | 151 lbs |
| Fuel Type | Electric |
| Range Type | Freestanding |
| Range Configuration | Freestanding, single oven |
| Cooktop Configuration | All burners |
| Cooktop Element Style | Coil |
| Number of Cooking Elements / Burners | 4 |
| Left Front Element Size | 8 in |
| Left Front Element Power | 2400 W |
| Left Front Element Type | Standard |
| Left Rear Element Size | 6 in |
| Left Rear Element Power | 1500 W |
| Left Rear Element Type | Standard |
| Right Front Element Size | 6 in |
| Right Front Element Power | 1500 W |
| Right Front Element Type | Standard |
| Right Rear Element Size | 8 in |
| Right Rear Element Power | 2400 W |
| Right Rear Element Type | Standard |
| Oven Cooking System | Thermal (non-convection) |
| Bake Element Power | 2400 W |
| Broiler Element Power | 3400 W |
| Broiler Location | Top center |
| Oven Cleaning Type | Adjustable self-cleaning |
| Hidden Bake Element | No |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Rack Type | Standard (both) |
| Number of Oven Lights | 1 |
| Oven Light Type | Incandescent |
| Oven Light Switch Location | Oven control |
| Oven Interior Color | Black |
| Drawer Type | Storage drawer |
| Door Type | Glass window |
| Door Removable | Yes |
| Oven Window Size | Extra large |
| Handle Type | Reach-through handle |
| Handle Material | Metal |
| Handle Color | Stainless steel |
| Cooktop Surface Material | Porcelain coated steel |
| Cooktop Surface Color | Black |

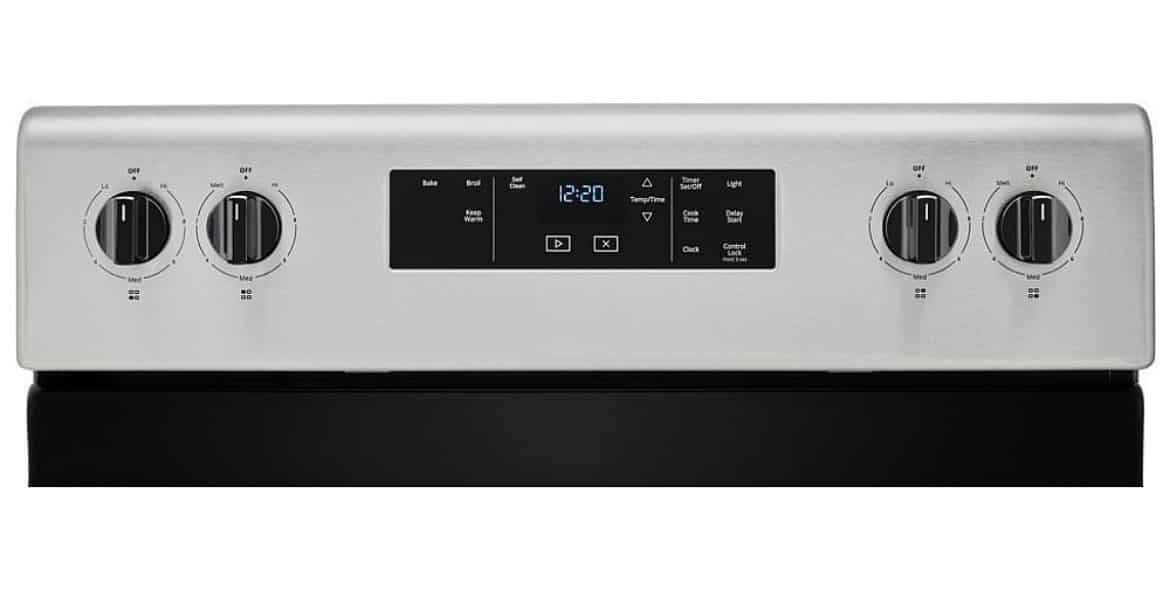

| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Control Knob Color | Black |
| Cooktop Control Knob Type | Plastic |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic touch |
| Oven Control Knob Color | Black |
| Oven Control Knob Type | Plastic |
| Display Type | LED |
| Display Color | Blue |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Power On Indicator Light | Yes |
| Griddle Included | N/A |
| Keep Warm Setting | Yes |
| Closed Door Broiling | Yes |
| Control Lock Mode | Yes |
| Upswept SpillGuard Cooktop | Yes |
| Oven Selections / Modes | Bake, Broil, Keep Warm, Warm Hold, Delay Start, Cook Time, Start Time, Stop Time, Timer, Clock, Control Lock, Sabbath Mode (where applicable) |
| Oven Automatic Shut-Off | No |
| Power Outage Compatible | No |
| Self Clean | Yes (adjustable self-cleaning technology) |
| Convection | No |
| Wi-Fi Enabled | No |
| Sabbath Mode | Yes (via oven selections; some reseller quick specs may list “No”) |
| ADA Compliant | No |
| UL Listed | Yes |
| CUL | No |
| Prop 65 | Yes (for U.S. markets) |
| Electrical Requirements | 40 A |
| Voltage | 120/240 V (listed as 120 V on some reseller spec summaries) |
| Power Cord Included | Yes (Canada); No (U.S. models typically ship without cord) |
| Approximate Connected Load | ~6900 W |
| Annual Energy Usage | 510 kWh/year (approximate) |
| Country of Origin | USA |
| Finish / Color | Stainless steel |
| Nominal Width | 30 in |
| Hood Recommended | Yes |
| Downdraft Ventilation | No |
| Storage Drawer | Yes |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
