| Specification |
Details |
| Brand |
Frigidaire Gallery |
| Model |
GCWD2767AD |
| Product Type |
Built-in double electric wall oven |
| Fuel Type |
Electric |
| Style |
Double wall oven |
| Installation Type |
Built-in |
| Finish |
Smudge-Proof Black Stainless Steel |
| Fingerprint Resistant |
Yes (Smudge-Proof finish) |
| Total Capacity |
7.6 Cu Ft |
| Upper Oven Capacity |
3.8 Cu Ft |
| Lower Oven Capacity |
3.8 Cu Ft |
| Capacity (Canadian IEC) |
3.8 Cu Ft each oven / 7.6 Cu Ft total (IEC-rated, Canada) |
| Width |
27 inches |
| Height |
50.88 inches (50 7/8 in) |
| Depth (cabinet) |
24.75 inches (24 3/4 in) |
| Depth With Door 90° Open |
45.75 inches (45 3/4 in) |
| Depth With Handle |
27.44–27.44 inches (approx. 27 7/16 in) |
| Nominal Width |
27 inches |
| Upper Oven Interior Height |
17 inches |
| Upper Oven Interior Width |
20.5 inches |
| Upper Oven Interior Depth |
18.75 inches |
| Lower Oven Interior Height |
17 inches |
| Lower Oven Interior Width |
20.5 inches |
| Lower Oven Interior Depth |
18.75 inches |
| Overall Product Weight |
Approx. 215 lbs |
| Minimum Cutout Height |
48.88 inches (48 7/8 in) |
| Maximum Cutout Height |
50.25 inches (50 1/4 in) |
| Minimum Cutout Width |
24.88 inches (24 7/8 in) |
| Maximum Cutout Width |
25.25 inches (25 1/4 in) |
| Recommended Cutout Depth |
24 inches minimum |
| Series |
Frigidaire Gallery |
| Product Line |
Double Wall Oven |
| Power Type |
Electric 240 V |
| Voltage Rating |
240 V |
| Amps @ 240 V |
40 Amps |
| Minimum Circuit Required |
40 Amps |
| Connected Load @ 240 V |
Approx. 9.0 kW |
| Power Supply Connection Location |
Top right (rear) |
| Oven Type (Both Ovens) |
Total Convection |
| Bake Element Power (Each Oven) |
2500 W (approx.) |
| Broil Element Power (Each Oven) |
4000 W (approx.) |
| Convection System |
Total Convection (fan + element, both ovens) |
| Cooking Modes (Total Convection) |
Air Fry, No Preheat, Slow Cook, Convection Bake, Convection Roast, Steam Bake, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate, standard Bake, Broil, Warm & Hold, Preheat, Cook Time, My Favorite, User Preferences |
| Air Fry |
Yes (both ovens, Total Convection) |
| Air Sous Vide |
Yes |
| Steam Bake |
Yes |
| Steam Roast |
Yes |
| Convection Bake |
Yes |
| Convection Roast |
Yes |
| Slow Cook |
Yes |
| Bread Proof |
Yes |
| Dehydrate |
Yes |
| Warm & Hold |
Yes |
| Fast / No Preheat |
Yes (No Preheat mode) |
| Self Clean |
Yes (self-clean cycles) |
| Steam Clean |
Yes (steam clean / rapid steam clean) |
| Cleaning Type |
Self Clean and Steam Clean |
| Hidden Bake Element |
Yes (both ovens) |
| Oven Interior Color |
Midnight Black |
| Number of Rack Positions (Each Oven) |
5 |
| Oven Racks (Total) |
3 racks in upper, 2 racks in lower (varies by configuration; typically 2 standard + 1 glide total shared) |
| Rack Types |
Standard racks and glide rack (ball-bearing / sliding) |
| Oven Lights |
Halogen |
| Oven Light Quantity |
2 x 40 W halogen (one per cavity, typical) |
| Door Type |
Drop-down doors (both ovens) |
| Oven Window |
Yes (large viewing windows) |

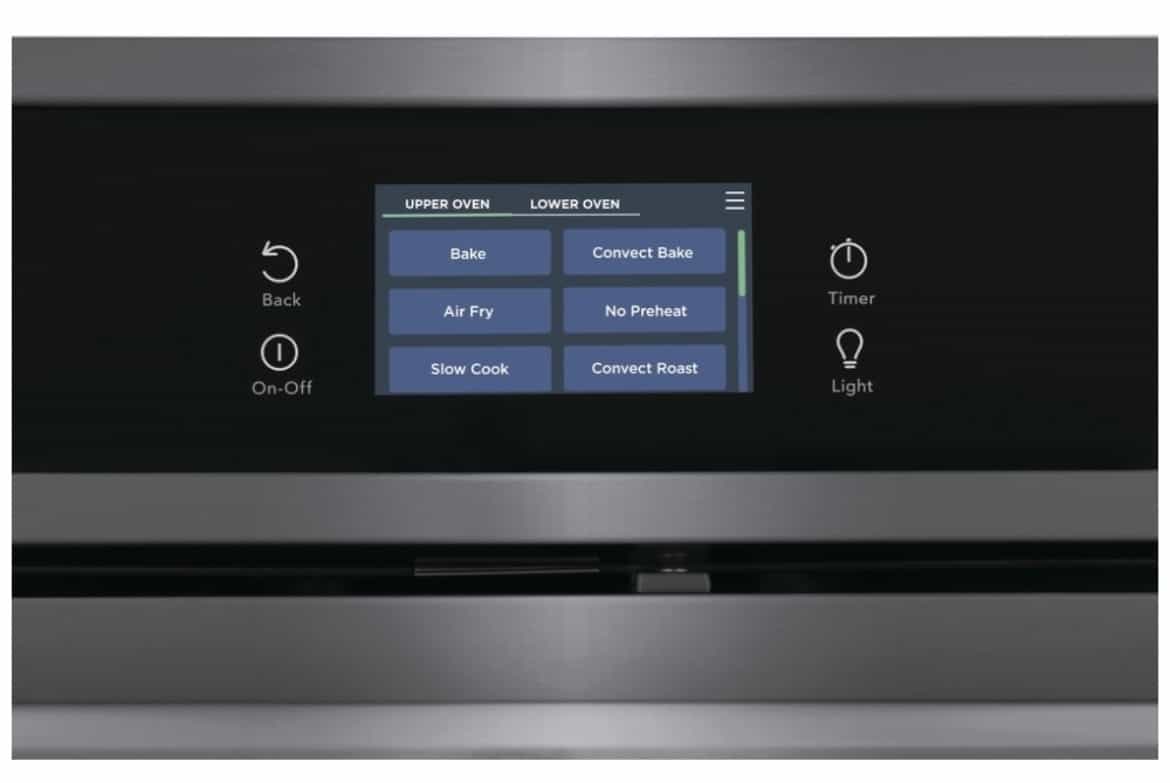

| Control Type |
Capacitive touch digital control panel |
| Display Type |
Capacitive touch with digital display |
| Display Interface Color |
White |
| Display Light Color |
White |
| Control Lock |
Yes |
| Clock |
Yes |
| Timer |
Yes (Timer On/Off) |
| Temperature Probe |
Yes (included) |
| Included Steam Tray |
Yes |
| Optional Air Fry Tray |
ReadyCook Air Fry Tray (sold separately; 27″ size) |
| Wi-Fi Connected |
No |
| Bluetooth |
No |
| Sabbath Mode |
Yes (Star-K certified) |
| Star-K Certification |
Yes |
| ADA Compliant |
No (for this double-oven model) |
| CSA Listed |
Yes |
| UL Listed |
Yes |
| RoHS |
Yes |
| Energy Star Rated |
No |
| Frigidaire Fit Promise |
Yes (cabinet cutout fit guarantee) |
| Cleaning / Care Features |
Self Clean, Steam Clean, hidden bake element, continuous bake or 12-hour energy-saving setting, Fahrenheit/Celsius selectable, silent control panel option |
| Color Options (Line) |
Black Stainless Steel (this model); stainless-steel variant is GCWD2767AF |
| Country-Specific Notes |
Canadian product spec sheets list 3.8 Cu Ft per oven / 7.6 Cu Ft total (IEC), which is used here when capacity differs from U.S. marketing values. |
