| Specification |
Details |
| Model |
JCB840DVWW |
| Product Type |

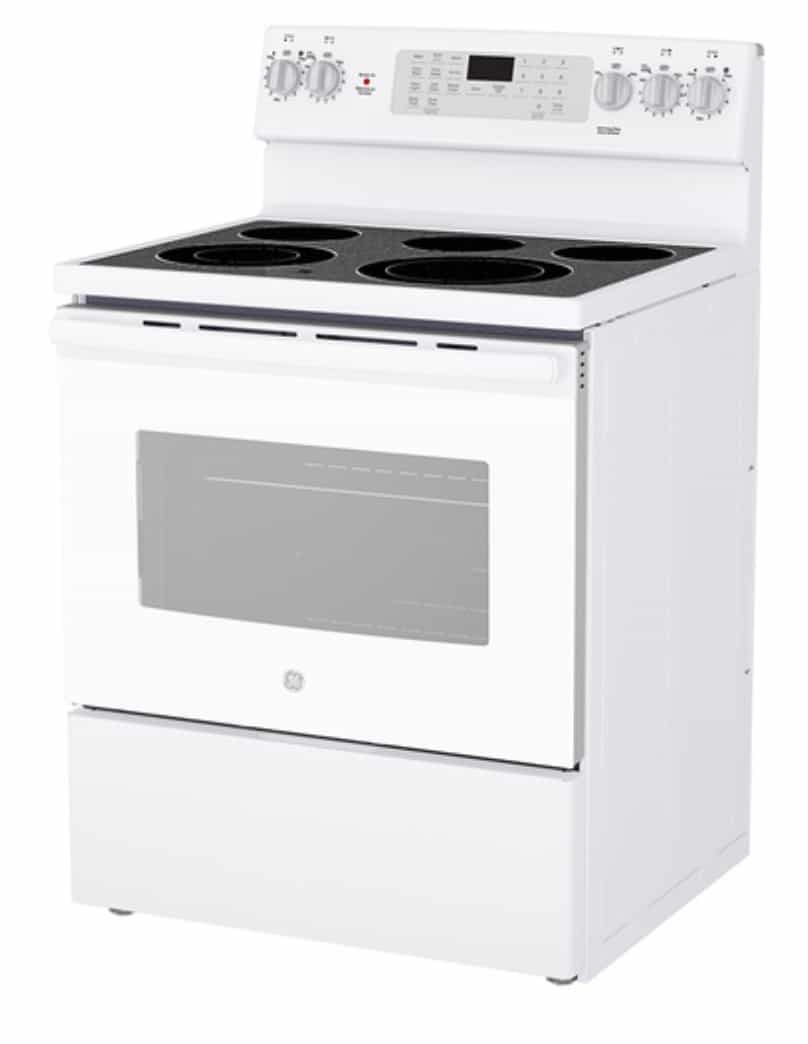

30″ Freestanding Electric Range with True European Convection and No-Preheat Air Fry |
| Capacity |
5.0 Cu Ft |
| Total Oven Capacity |
5.0 cu ft |
| Width |
30 inches (29.92″ nominal) |
| Height |
47.24 inches |
| Depth |
28.74 inches |
| Width (cm) |
76.0 cm |
| Height (cm) |
120.0 cm |
| Depth (cm) |
73.0 cm |
| Usable Oven Interior (H x W x D) |
18.7″ x 24″ x 20″ |
| Range Size |
30 in |
| Colour / Finish |
White |
| Handle Colour |
White |
| Appliance Type |
Single-oven electric range |
| Style / Format |
Free-standing / Standard |
| Installation Type |
Freestanding |
| Fuel Type |
Electric |

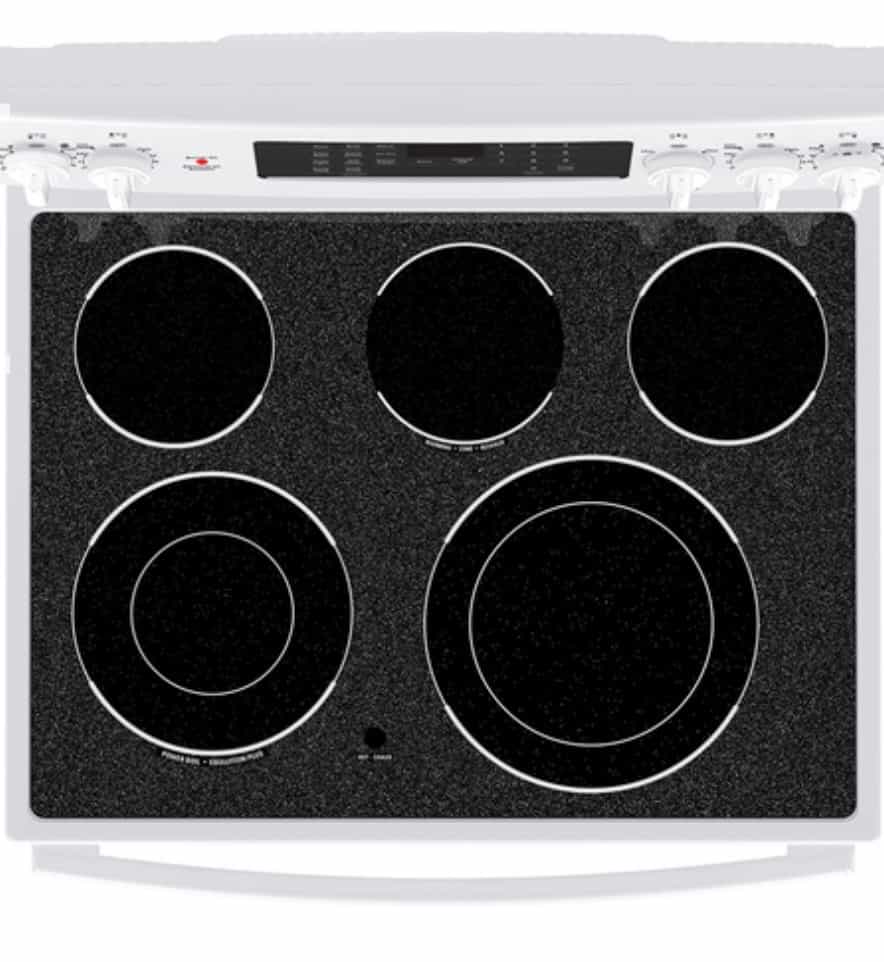

| Cooktop Type |
Smooth top (ceramic glass / vitrocéramique) |
| Number of Elements / Burners |
5 |
| Element – Front Left |
6″/9″ 3000 W |
| Element – Front Right |
9″/12″ 3000 W |
| Element – Rear Left |
6″ 1500 W |
| Element – Rear Right |
6″ 1500 W |
| Element – Centre Rear (Warming Zone) |
6″ 120 W warming zone |
| Number of Cooking Zones |
5 elements |
| Hot Surface Indicator |
Yes |
| Indicator Light – Heating Element On |
Yes |
| Oven Type |
Electric, single oven |
| Convection |
True European Convection (single-fan European element) |
| Convection Bake |
Yes |
| Convection Roast |
Yes |
| Convection Element Power |
1200 W |
| Bake Element Power |
2850 W |
| Broil Element Power |
3800 W |
| Hidden Bake Element |
Yes (concealed lower element) |
| Cleaning Type |
Self Clean with Steam Clean option |
| Self-Cleaning |
Yes, with steam clean option |
| Automatic Self-Clean Oven Door Lock |
Yes |
| Air Fry |
No-Preheat Air Fry (no preheating required) |
| Interior Oven Light |
Yes |
| Number of Oven Racks |
3 chrome racks |
| Number of Rack Positions |
6 |
| Drawer Type |
Storage drawer |
| Lower Storage Drawer |
Yes |
| Control Location |
Backsplash |
| Cooktop Control Type |
Knobs |
| Oven Control Type |
Digital / electronic touchpad |
| Control Type (overall) |
Digital (oven) and mechanical knobs (cooktop) |
| Display Type |
Electronic digital display |
| Clock |
Yes (digital clock) |
| Timer |
Yes |
| Delay Start |
Yes |
| Audible Preheat Signal |
Yes |
| Preheat |
Yes |
| Auto Shut-Off with Override |
Yes |
| Indicator Lights |
Yes (including hot surface indicator) |
| Certified Sabbath Mode |
No |
| Child Lock |
No |
| ADA Compliant |
No |
| C° or F° Programmable |
Yes (temperature unit selectable) |
| Smart Function |
No (not Wi-Fi / smart enabled) |
| Volts / Hertz |
208–240 V / 60 Hz |
| Amps |
Standard range circuit (per manufacturer spec, 208–240 V / 60 Hz) |
| Hertz (alt listing) |
60–62 Hz (varies by retailer listing; manufacturer: 60 Hz) |
| GTIN / UPC |
00818502001339 |
| Weight |
Approx. 189.8 lb |
| Number of Ovens |
1 |
| Double Oven |
No |
| Downdraft Ventilation |
No |
| Vent |
Standard rear oven vent (no external blower) |
| Warming Drawer |
No (warming zone on cooktop instead) |
| Adjustable Legs |
Yes |
| Rear Wheels |
No |
| Storage Drawer |
Yes |
| Hot Surface Indicator Lights |
Yes |
| Hidden Bake Elements |
Yes |
| No-Preheat Air Fry |
Yes (integrated in oven, no special tray required) |
| Cleaning Category |
Self-clean with steam clean (light soils) and high-heat self-clean |
| Oven Interior Light |
Yes |
| Rack Type |
Chrome racks |
| Number of Levels / Racks (alt listing) |
3 racks, 6 rack positions |
