Description

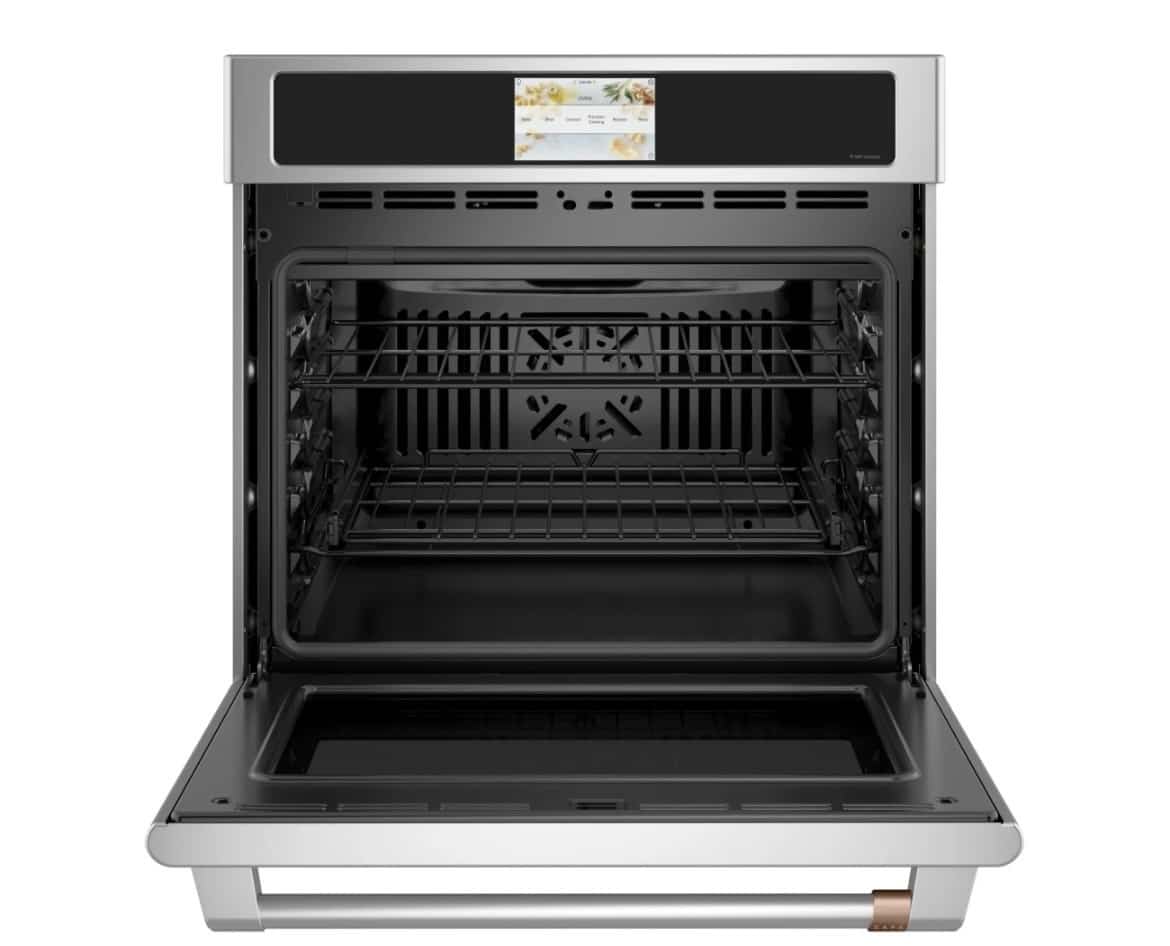

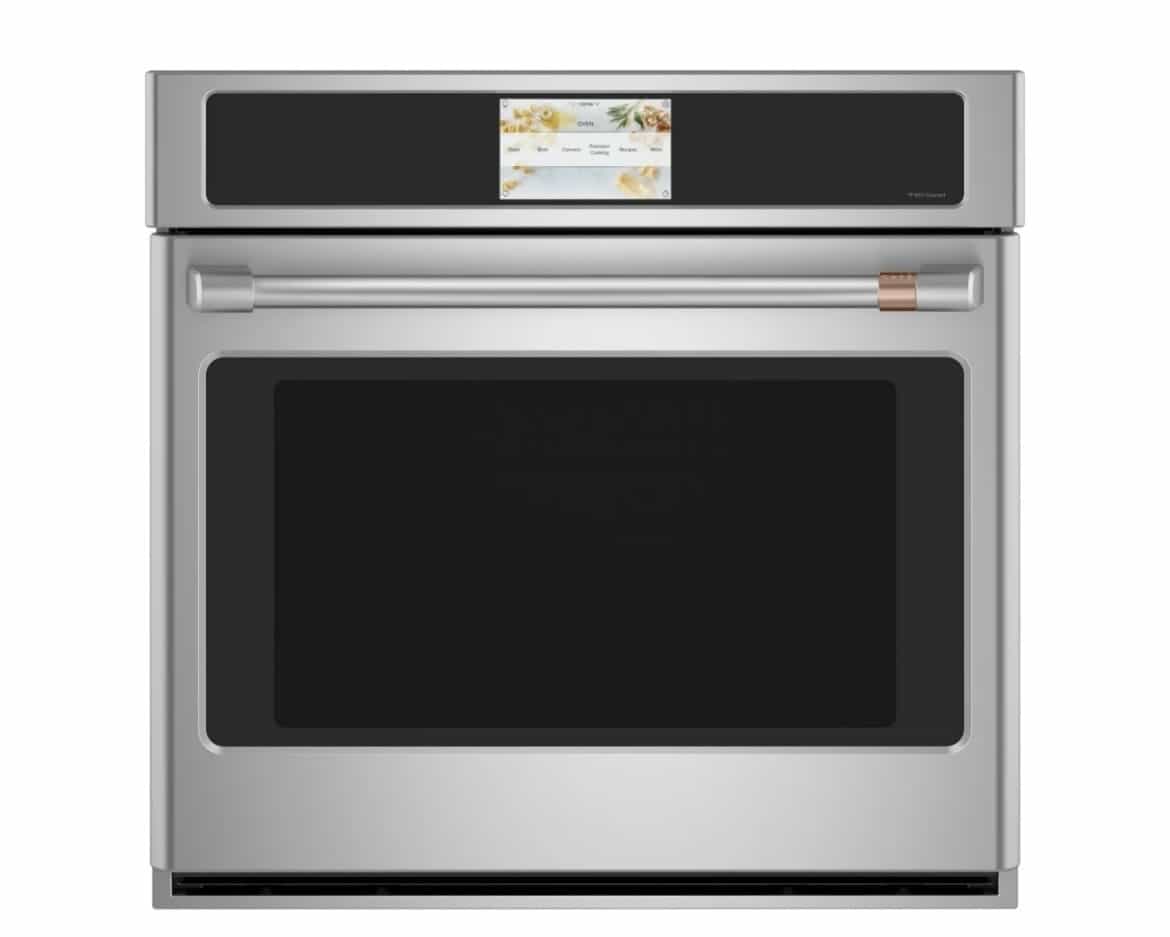

GE Cafe Single Wall Oven 30″ Width CTS70DP2NS1
Key Spec
| Specification | Value |
|---|---|
| Brand | Café |
| Model | CTS70DP2NS1 |
| Product Type | Single Electric Wall Oven |
| Style | Built-in, Professional Series |
| Fuel Type | Electric |
| Capacity | 5.0 cu ft |
| Total Oven Capacity | 5.0 cu ft |
| Oven Type | Convection; Standard (True European Convection with Direct Air) |
| Colour | Stainless Steel |
| Color Appearance | Stainless Steel |
| Handle Color | Brushed Stainless |
| Handle Design | Café Pro Style; Customizable |
| Door Panel Type | Glass |
| Oven Door Features | Big View Oven Window; Closed-door broiling |
| Width | 29.75 inches |
| Height | 28.63 inches |
| Depth | 26.75 inches |
| Depth with Door Open 90° | 47.75 inches |
| Cabinet Width (Minimum) | 30 inches |
| Cutout Width | 28.63 inches (approx. 28-5/8″) |
| Cutout Height | 27.31 inches (approx. 27-5/16″) |
| Cutout Depth | 23.5 inches |
| Oven Interior Width | 25 inches |
| Oven Interior Height | 17.38 inches |
| Oven Interior Depth | 20.25 inches |
| Width Class | 29″ or more (fits 30″ opening) |
| Net Weight | 161 lb |
| Approximate Shipping Weight | 177 lb |
| Voltage | 208/240 V |
| Frequency | 60 Hz |
| Amperage | 20 A |
| Electrical Requirements | 208/240 V; 60 Hz; 20 A |
| KW Rating at 240 V | 4.2 kW |
| KW Rating at 208 V | 3.2 kW |
| Bake Wattage | 2850 W |
| Broil Wattage | 4300 W |
| Convection Wattage | 2400 W |
| Bake Element | 10-pass |
| Broil Element | 10-pass |
| Cooking System | True European Convection with Direct Air |
| Convection | Yes |
| Convection Cooking | Yes |
| Convection Bake | Yes |
| Convection Bake Multi-Rack | Yes |
| Convection Broil Hi/Lo | Yes |
| Convection Roast | Yes |
| Thermal Bake | Yes |
| Thermal Broil Hi/Lo | Yes |
| Hot-Air Frying / Air Fry | Yes |
| Warm Mode / Keep Warm | Yes |
| Proof Mode | Yes |
| Broil | Yes |
| Hidden Bake Element | Yes |
| Self-Cleaning | Yes |
| Cleaning Type | Self Clean with Steam Clean |
| Steam Clean Option | Yes |
| Self-Clean Oven Door Lock | Yes |
| Control Type | 7″ Full-Color LCD Touch Screen |
| Display | Yes (full-color touch LCD) |
| Digital Clock | Yes |
| Timer | Yes |
| Kitchen Timer | Yes |
| Clock | Yes |
| C° or F° Programmable Temperature | Yes |
| Control Lock | Yes |
| Safety Lock | Yes |
| Delay Start / Delay Time | Yes |
| Delay Bake/Start | Yes |
| Cook Time | Yes |
| 12-Hour Shut-Off Capability | Yes |
| Audible Preheat Signal | Yes |
| Auto Recipe Conversion / Automatic Convection Conversion | Yes |
| Preheat | Yes |
| Interior Lighting | 2 halogen interior oven lights; concealed halogen lighting |
| Oven Interior Finish | Black gloss finish |
| Oven Interior Lights | 2 halogen lights |
| Rack Positions | 6 stamped rack positions |
| Total Number of Oven Racks | 2 |
| Oven Racks | 1 self-clean roller rack; 1 self-clean heavy-duty flat rack |
| Glide / Roller Rack | Yes (1 self-cleaning roll-out rack) |
| Wi-Fi | Yes |
| Built-In WiFi | Yes, powered by SmartHQ app |
| Smart Home WiFi | Yes |
| Smart Compatible | Yes |
| Connected Capabilities | Amazon Alexa; The Google Assistant; IFTTT; Nest; Drop; Innit |
| App Capable | Yes (Café Appliances Kitchen / SmartHQ app) |
| Voice Controlled | Yes (via smart assistants) |
| Precision Cooking Modes | Yes |
| Scan-to-Cook | Yes |
| Reheat / Reheat via App | Yes (via precision modes / app) |
| ADA Compliant | Yes |
| Sabbath Mode | Yes (Certified Sabbath Mode) |
| Notification Type | Sound |
| Installation Options | Above warming drawer; undercounter; under cooktop; side-by-side; under built-in Advantium; under built-in microwave |
| Undercounter Installable | Yes |
| Approved for Outdoor Use | No |
| Wall Oven Type | Single Wall Oven |
| Appliance Fit Width | 30 inches |
| GTIN / EAN | 0084691842231 |
| UPC (implied) | 084691842231 |
| Included Accessories | Brushed Stainless Steel handle set (Pro Style) |
| Optional Accessories | Air Fry Basket (JXAFTRAY1VSS); UXWORXR30 30″ Never Scrub Roller Rack; WB18T10578 72″ Electrical Conduit; WB18T10581 60″ Electrical Conduit; WB48X10056 Large Broiler Pan |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
