Description

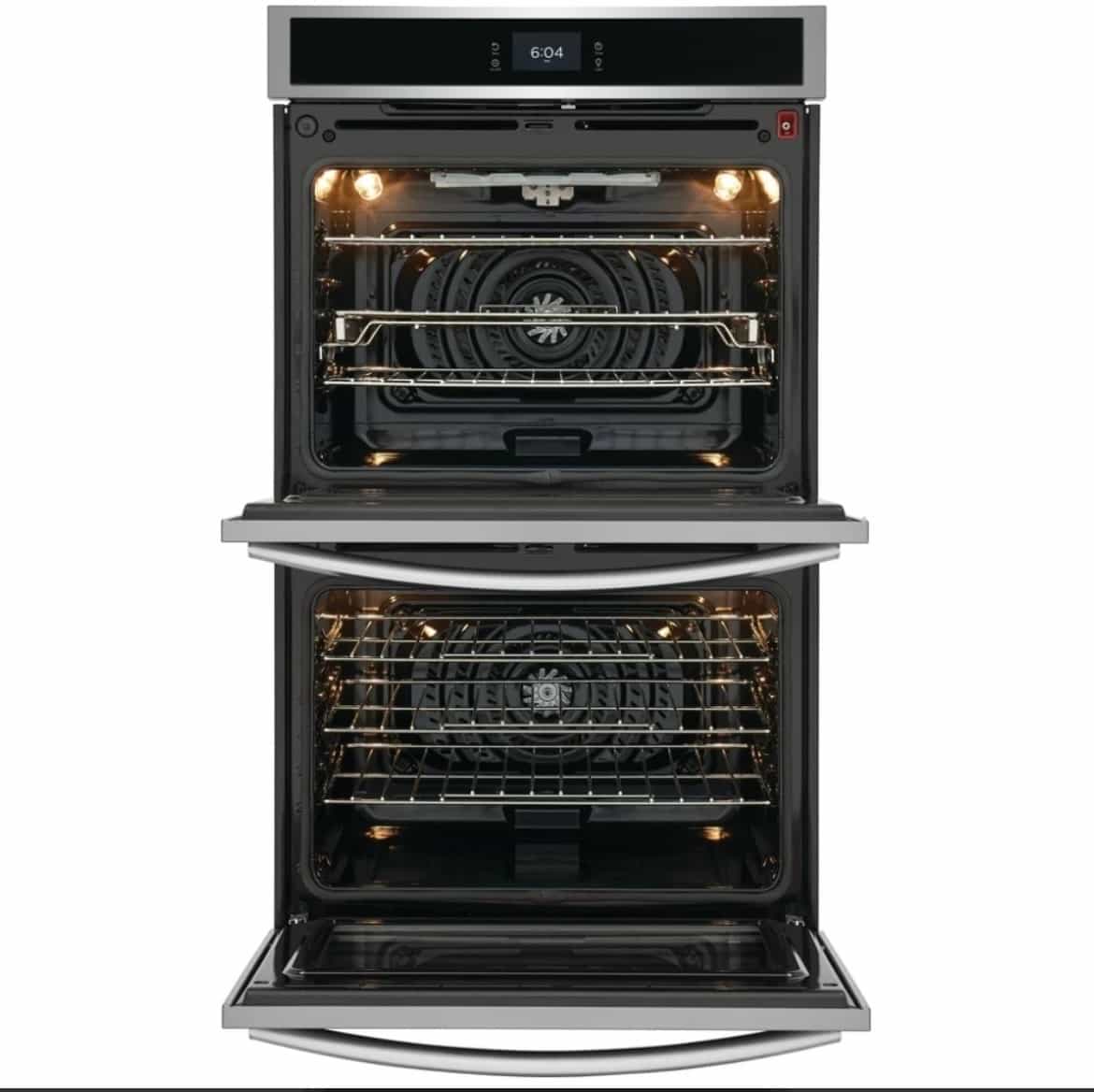

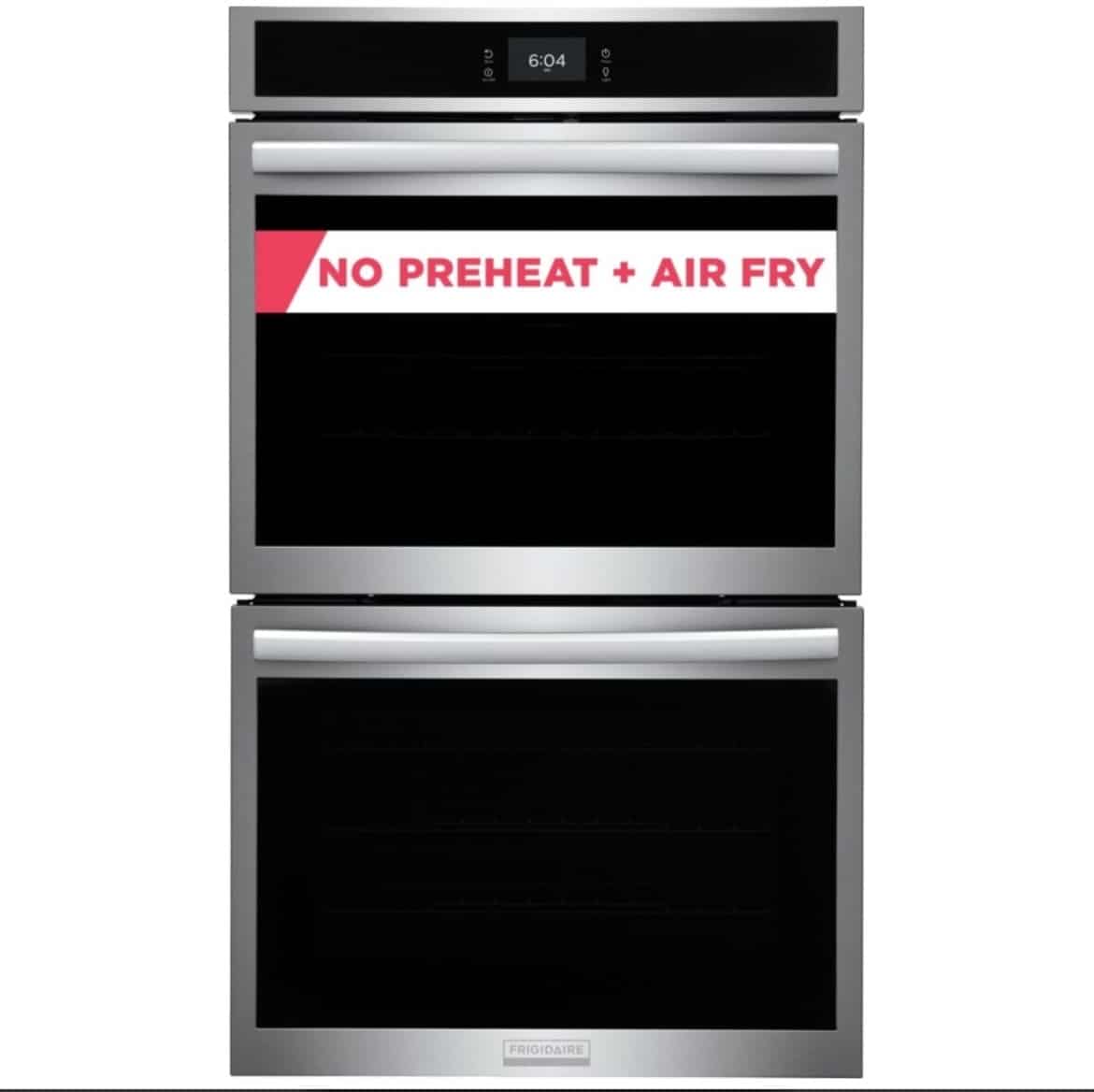

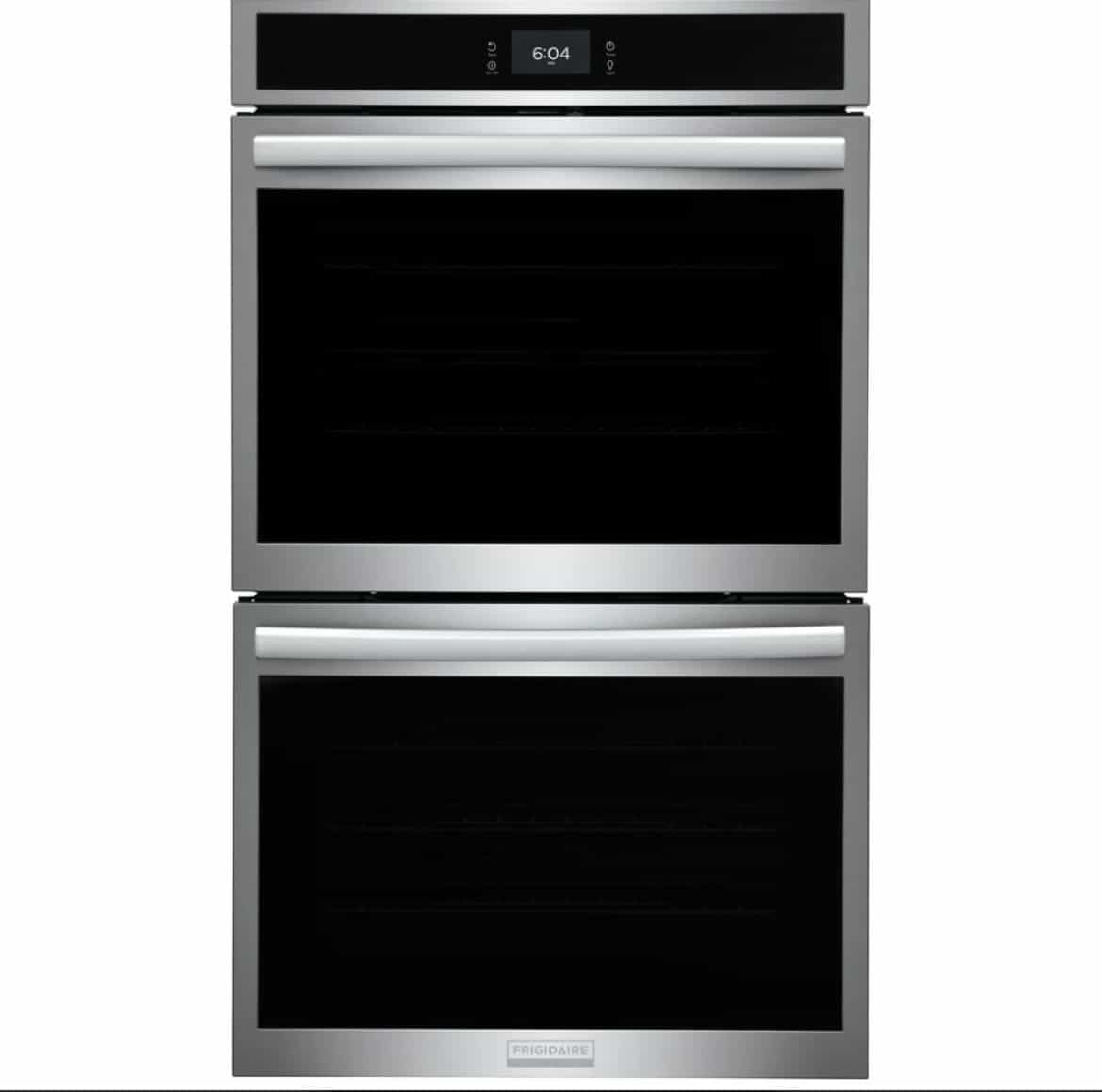

Frigidaire Gallery Double Wall Oven 30″ width, GCWD3067AF
New Open Box
| Specification | Value |
|---|---|
| Product Type | 30″ Double Electric Wall Oven with Total Convection |
| Product Line | Double Wall Oven |
| Series | Frigidaire Gallery |
| Model | GCWD3067AF |
| Fuel Type | Electric 240V |
| Installation Type | Built-In |
| Size | 30″ nominal width |
| Finish / Color | Smudge-Proof® Stainless Steel |
| Handle Color | Stainless Steel |
| Door Panel Type | Glass |
| Door Style | Drop Down |
| Fingerprint Resistant | Yes |

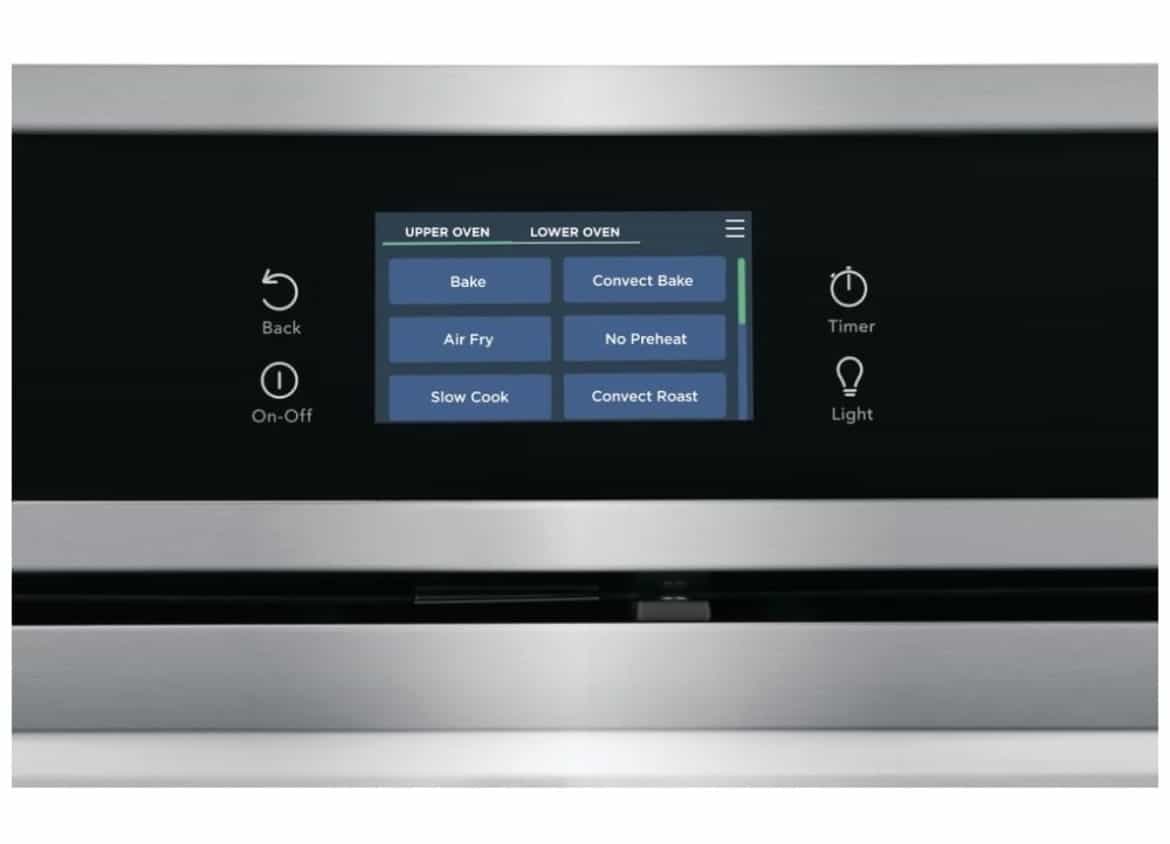

| Control Type | 4.3″ full-color capacitive touch digital control panel |
| Clock | Yes |
| Viewing Window | Yes |
| Capacity & Interior | |
| Total Capacity | 10.6 Cu Ft |
| Upper Oven Capacity | 5.3 Cu Ft |
| Lower Oven Capacity | 5.3 Cu Ft |
| Upper Oven Interior Height | 18 1/8 inches |
| Upper Oven Interior Width | 25 1/5 inches |
| Upper Oven Interior Depth | 19 7/8 inches |
| Lower Oven Interior Height | 18 1/8 inches |
| Lower Oven Interior Width | 25 1/5 inches |
| Lower Oven Interior Depth | 19 7/8 inches |
| Interior Color | Midnight Black |
| Total Number of Oven Racks | 6 (5 standard, 1 glide) |
| Upper Oven Racks | 3 |
| Lower Oven Racks | 3 |
| Oven Rack Handles | Yes |
| Interior Oven Lights | 4 halogen (2 upper, 2 lower) |
| External Dimensions | |
| Width | 29 7/8 inches |
| Height | 50 3/4 inches |
| Depth | 25 3/16 inches |
| Depth to Handle | 27 3/5 inches |
| Depth with Door 90° Open | 48 3/16 inches |
| Exterior Width (rounded) | 29.88 inches |
| Exterior Depth (rounded) | 25.19 inches |
| Exterior Height (rounded) | 50.75 inches |
| Cutout Dimensions | |
| Minimum Cutout Width | 28 1/2 inches |
| Maximum Cutout Width | 29 inches |
| Minimum Cutout Height | 48 7/8 inches |
| Maximum Cutout Height | 50 1/4 inches |
| Cutout Width (range) | 28.5 to 29 inches |
| Cutout Height (range) | 48.88 to 50.25 inches |
| Cooking Systems & Modes | |
| Cooking System | Total Convection; Standard |
| Convection | Yes |
| Air Fry | Yes |
| Air Sous Vide | Yes |
| Steam Oven | Yes |
| Steam Bake | Yes |
| Steam Roast | Yes |
| Slow Cook | Yes (as low as 100°F) |
| Bake | Yes |
| Broil | Yes |
| Convection Bake | Yes |
| Convection Roast | Yes |
| Bread Proof | Yes |
| Dehydrate | Yes |
| Keep Warm | Yes |
| Perfect Turkey | Yes |
| No Preheat / Fast Preheat / Quick Preheat | Yes |
| Controls & Options | |
| Kitchen Timer | Yes |
| Cook Time / Timed Cook | Yes |
| Delay Start | Yes |
| Delay Clean | Yes |
| Self-Clean Options | 2, 3, and 4 hour cycles |
| Steam Clean / Rapid Steam Clean | Yes |
| Oven Lock-Out / Control Lock | Yes |
| Child Lock | Yes |
| My Favorite | Yes |
| Oven Light (control) | Yes |
| Cancel / Clear Off | Yes |
| Heating Elements & Performance | |
| Bake Element Wattage (per oven) | 2,500 Watts |
| Broil Element Wattage (per oven) | 4,000 Watts |
| Broiling Temperature Range | 400°F to 550°F |
| Hidden Bake Element | Yes (hidden element baking system) |
| Temperature Probe | Yes |
| Approved for Under-Counter Installation | Yes |
| Electrical & Power | |
| Voltage Rating | 240 Volts / 60 Hz |
| Amps @ 240 Volts | 40 Amps |
| Minimum Circuit Required | 40 Amps |
| Connected Load @ 240V | 9 kW |
| Power Supply Connection Location | Top Left |
| Smart & Connectivity | |
| WiFi Enabled | No |
| Smart Compatible | No |
| Certifications & Compliance | |
| Sabbath Mode | Yes (Star-K Certified) |
| ADA Compliant | Yes (per manufacturer spec for wall oven) |
| CSA Listed | Yes |
| UL Listed | Yes |
| RoHS | Yes |
| Prop 65 Label | Yes |
| Frigidaire Fit Promise | Yes |
| Energy & Efficiency | |
| ENERGY STAR Certified | No |
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
