Description

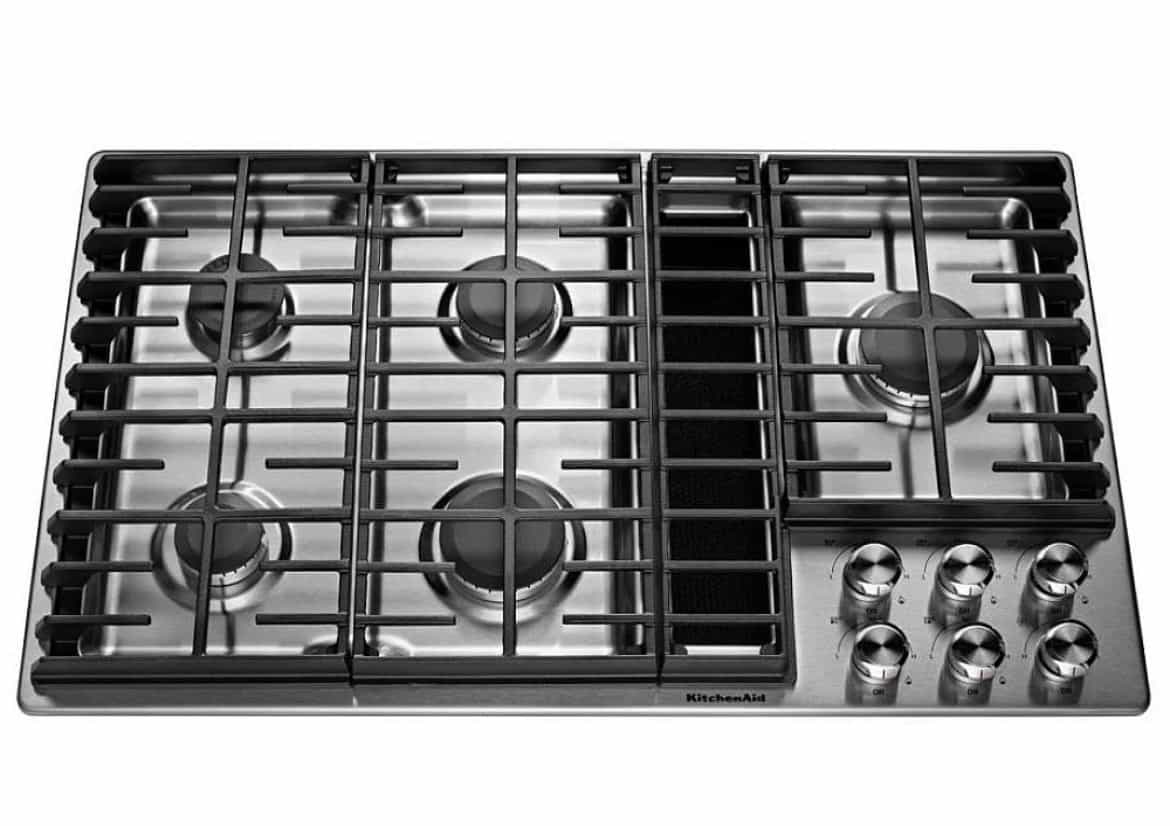

KitchenAid Gas downdraft Cooktop 36″ Width 5 burner KCGD506GSS
| Specification | Value |
|---|---|
| Brand | KitchenAid |
| Model | KCGD506GSS |
| Type | Gas Downdraft Cooktop, Built-In / Drop-In |
| Fuel Type | Natural Gas (LP Convertible) |
| Cooktop Type | Downdraft |
| Number of Burners | 5 |
| Burner Type | Sealed Burners |
| Left Front Burner Power | 10,000 BTU |
| Left Front Burner Type | Sealed Burner |
| Left Rear Burner Power | 5,000 BTU |
| Left Rear Burner Type | 5K BTU Even-Heat™ Simmer Burner |
| Right Rear Burner Power | 17,000 BTU |
| Right Rear Burner Type | Sealed Burner / Professional Burner |
| Center Front Burner Power | 15,000 BTU |
| Center Front Burner Type | Sealed Burner / Professional Burner |
| Center Rear Burner Power | 12,500 BTU |
| Center Rear Burner Type | Sealed Burner |
| Highest Burner Output | 17,000 BTU |
| Number of Grates | 3 |
| Grate Details | Full-Width, Continuous, Cast Iron, Matte Finish |
| Downdraft Vent | Yes |

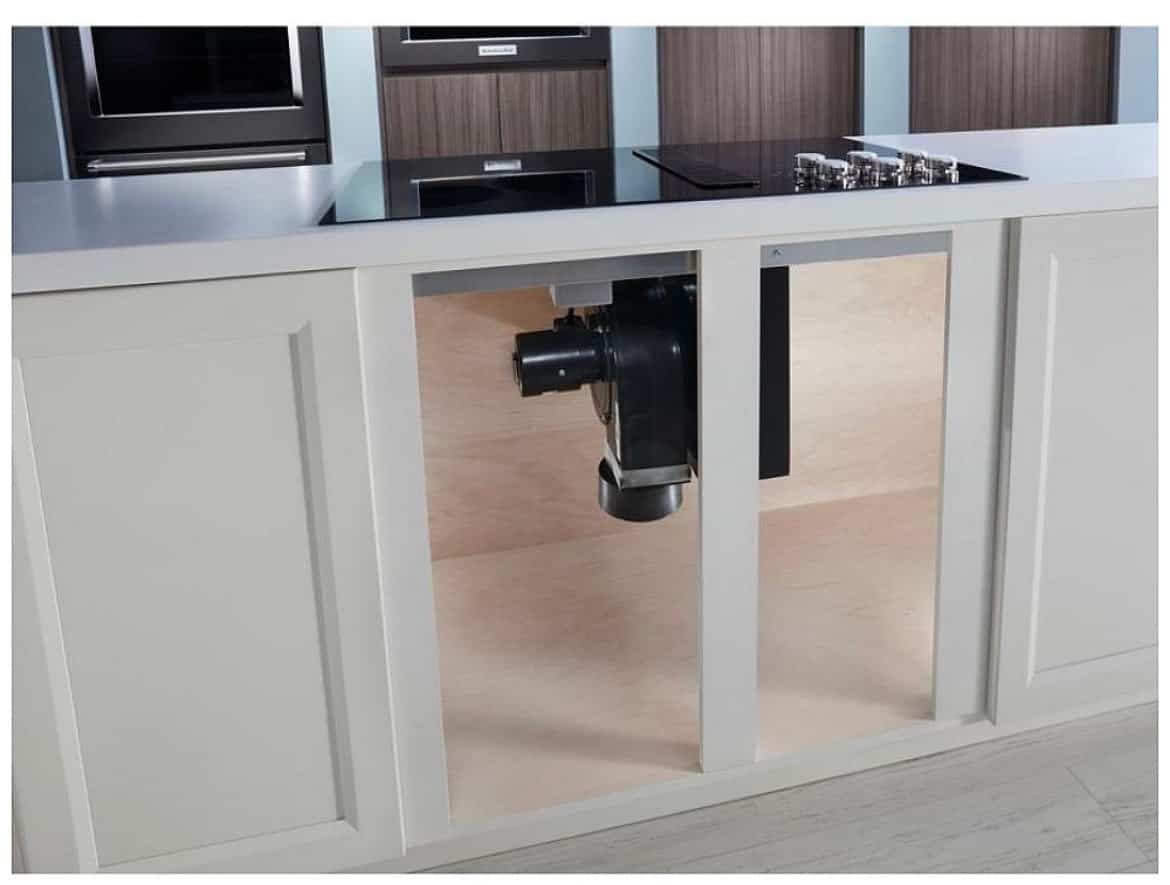

| Downdraft Ventilation Features | Integrated ventilation, convertible to duct-free with optional kit |
| CFM Motor Class | 300 CFM |
| Number of Vent Speeds | 3 |
| Ignition Type | Flame-Sensing™ Re-Ignition, Electronic Ignition and Automatic Re-Ignition |
| Control Type | Knobs |
| Control Location | Right Side / Right Front (top) |
| Infinite Heat Controls | Yes |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Cooktop Surface Material | Stainless Steel |
| Cooktop Surface Color | Color Coordinated Stainless Steel |
| Surface Features | Stainless Steel Surface, Stainless Steel Knobs, Full-Width Cast-Iron Grates |
| Digital Display | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Automatic Pan Detection | No |
| Power Outage Compatible | Yes |
| Installs Over Built-In Oven | No |
| LP Convertible | Yes (LP Conversion Kit Included) |
| Special Features | Downdraft Ventilation, 5K BTU Even-Heat™ Simmer Burner, Even-Heat Melt Burner, Melt Cap |
| Common Size | 36 in (91.44 cm) |
| Width | 36 inches |
| Depth | 21 1/2 inches |
| Height (overall product) | 18 7/16 inches |
| Cutout Width | 34 3/4 inches (approx. 88.26 cm) |
| Cutout Depth | 19 15/16 inches (approx. 50.64 cm) |
| Net Weight | 92 lbs (41.73 kg) |
| Gross / Shipping Weight | 97 lbs (44 kg) |
| Shipping Carton Width | 41.5 inches |
| Shipping Carton Height | 23.78 inches (approx. 23 13/16 in) |
| Shipping Carton Depth | 26.38–26.44 inches |
| Electrical Requirements | 120 Volts, 60 Hz, 15 Amps |
| Power Cord Included | Yes |
| Approximate Wattage | 1800 W (from 120 V × 15 A max circuit) |
| ADA Compliant | No |
| UL Listed | Yes |
| Prop 65 | Standard (Cancer and Reproductive Harm warning for CA residents) |
| Smart / WiFi Enabled | No |
| Grill / Griddle / French Top | No integrated grill, griddle, or French top |
| Power Boost | No |
| Included Accessories | LP Conversion Kit |
| Finish / Color | Stainless Steel |
| UPC | 883049415062 |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
