Description

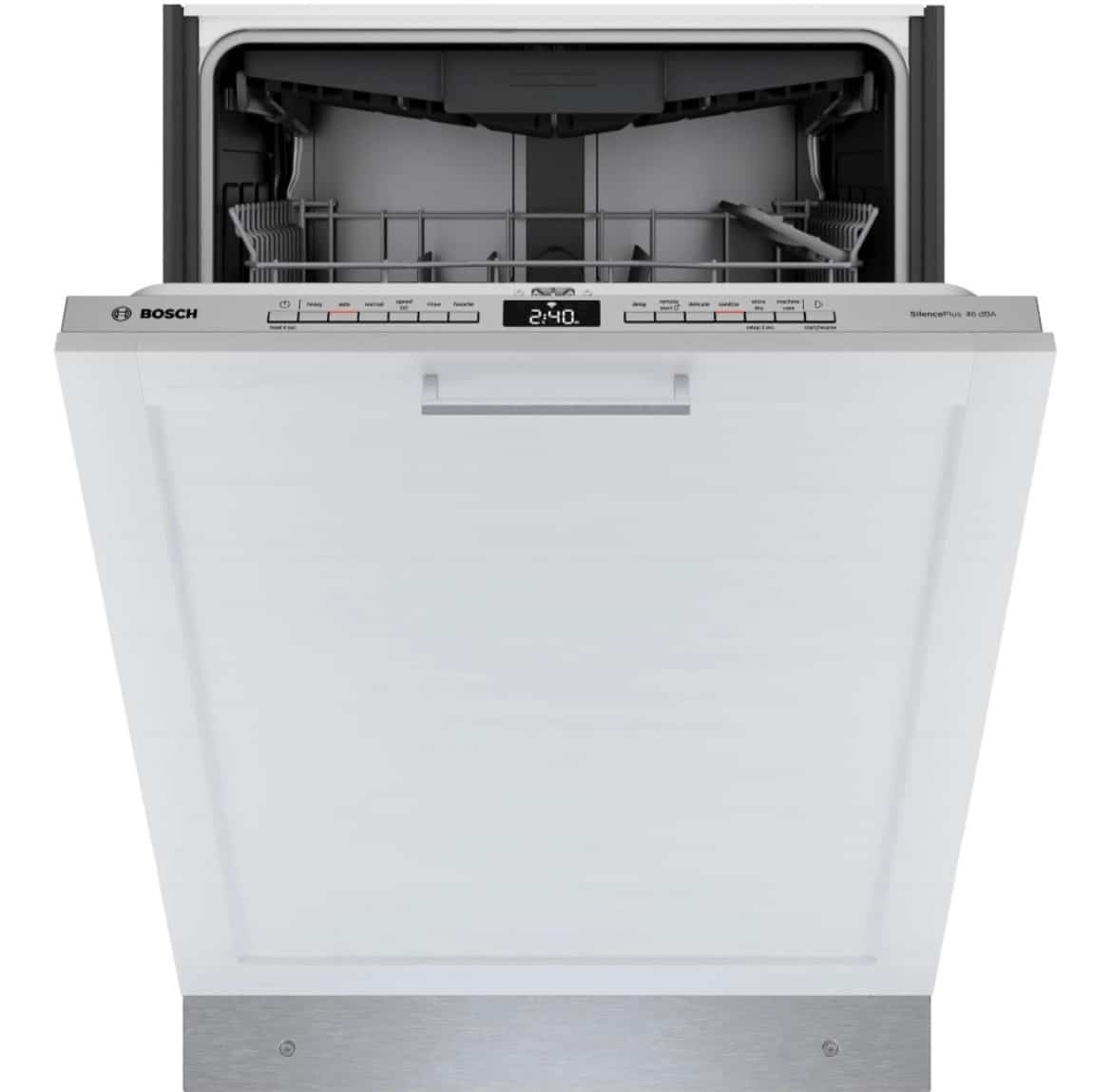

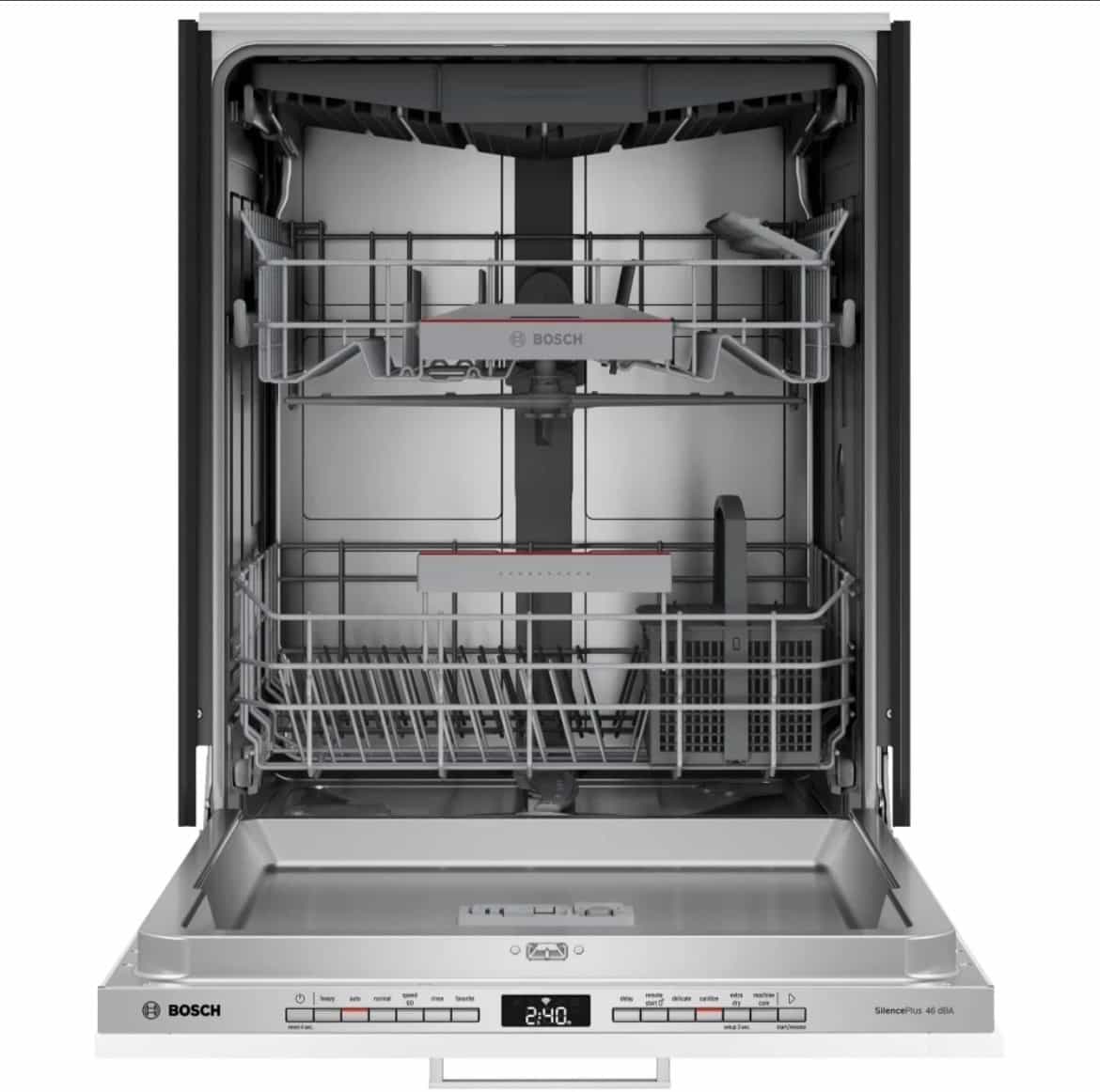

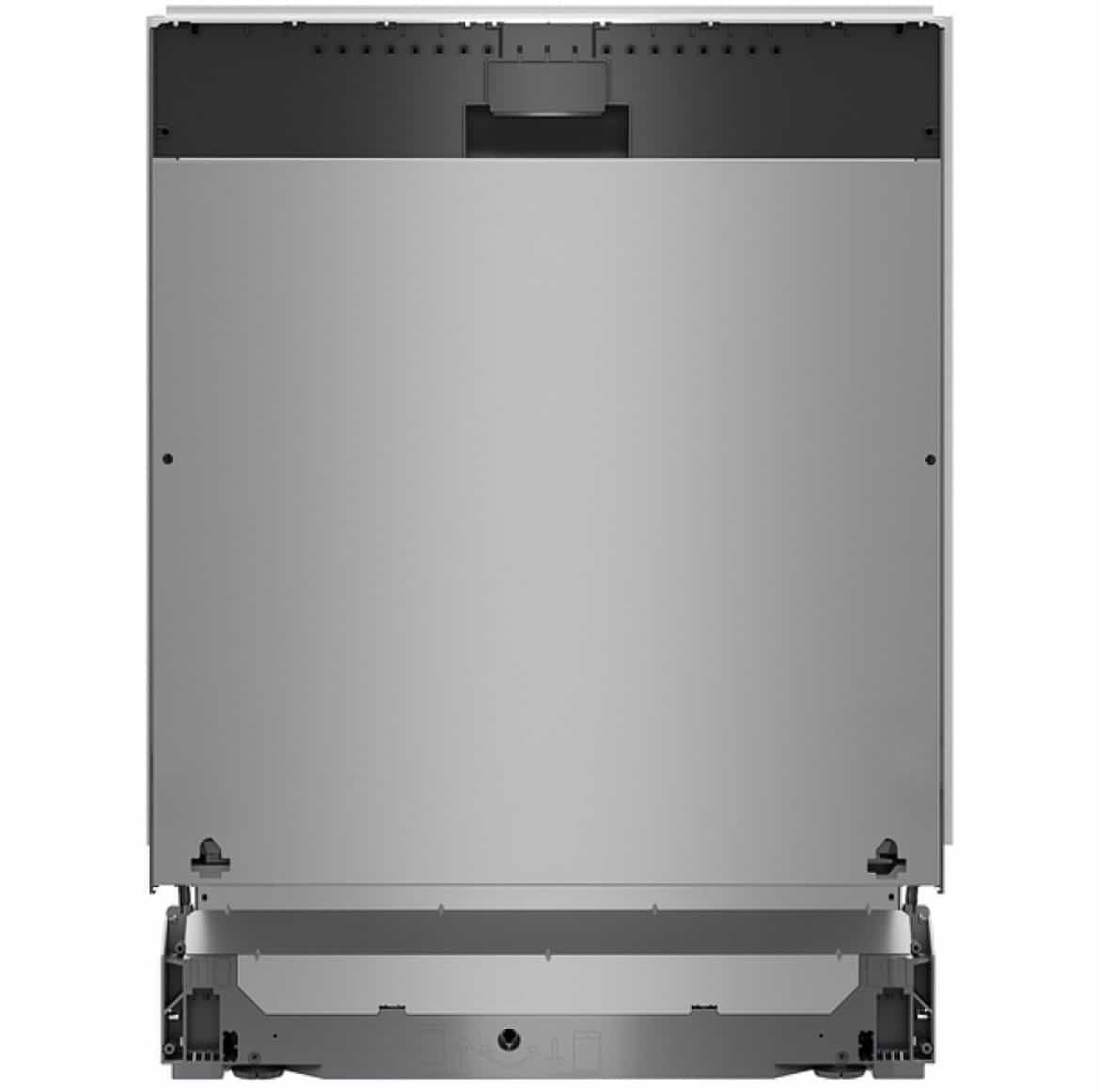

Bosch 300 Series Dishwasher 24″ Width 46 dB Custom Panel Ready SHV53D73UC
| Specification | Value |
|---|---|
| Brand | Bosch |
| Model | SHV53D73UC |
| Series | 300 Series |
| Product Type | Built-In Dishwasher |
| Dishwasher Style | Top Control |
| Installation Type | Built-In |
| Panel Ready | Yes |
| Custom Panel Compatible | Yes |
| Exterior Width | 24 inches |
| Width | 23 9/16 inches |
| Height | 33 7/8 inches |
| Minimum Height | 33 7/8 inches |
| Maximum Height | 35 inches |
| Depth | 21 5/8 inches |
| Cutout Width | 24 inches minimum to 24 1/4 inches maximum |
| Cutout Height | 34 1/16 inches minimum to 36 7/16 inches maximum |
| Cutout Depth | 24 inches |
| Required Toe Panel Height | 3 5/8 inches minimum to 8 3/4 inches maximum |
| Toe Panel Width | 23 1/8 inches minimum to 23 3/8 inches maximum |
| Panel Width | 23 1/8 inches minimum to 23 3/8 inches maximum |
| Panel Height | 27 3/4 inches minimum to 30 1/2 inches maximum |
| Recommended Panel Thickness | 3/4 inch |
| Maximum Panel Width Depending on Cabinet Design | 24 inches |
| Recommended Panel Weight | 7 lbs to 22 lbs |
| Place Settings | 15 |
| Number of Racks | 3 |
| Third Rack | Standard 3rd Rack |
| Rack Adjustability | RackMatic |
| Wash Cycles | 6 |
| Noise Level | 46 dBA |
| Tub Material | Stainless Steel |
| Control Type | Fully Integrated / Top Control |
| Wi-Fi Enabled | Yes |
| Smart Compatible | Yes |
| Home Connect | Yes |
| Wash System | PrecisionWash |
| Drying System | PureDry |
| Leak Protection System | 24/7 AquaStop Plus |
| Water Softener | Yes |
| Five-Level Wash | Yes |
| Concealed Water Heating Element | Yes |
| InfoLight | Yes |
| NSF Certified Sanitize Option | No |
| Anti-Fingerprint Finish | No |
| Child Lock Button Suspension | No |
| Water Usage Per Cycle | 3.2 gallons |
| Electrical Rating | 120 V |
| Frequency | 60 Hz |
| Power Rating | 1440 W |
| Fuse | 12 A |
| Minimum Water Pressure | 7.25 psi |
| Maximum Water Pressure | 145 psi |
| Minimum Inlet Rate | 2.6 gal/min |
| Water Temperature | Cold Water |
| Maximum Hot Water Temperature | 140 °F |
| Maximum Weight | 132 lbs |
| Adjustable Feet | Yes |
| Power Cord Included | Yes |
| Power Cord Type | 3-prong plug |
| Drain Hose Included | Yes |
| Drain Hose Length | 79 inches |
| Maximum Drain Hose Extension | 155 3/4 inches |
| Pre-Connected Inlet Hose | Yes |
| Pre-Connected AquaStop Inlet Hose | Yes |
| Electrical Power Cord Length | 47 1/4 inches |
| Water Inlet Hose Length | 59 inches |
| Drain Hose Length at Rear Connection | 66 3/4 inches |
| Required Cabinet Wall Cutout Diameter | 2 1/2 inches |
| Required Cabinet Wall Cutout Height from Floor | 7 inches |
| Drain Loop Height | 33 inches minimum to 43 inches maximum above cabinet floor |
| Country of Manufacture | Germany |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
