Description

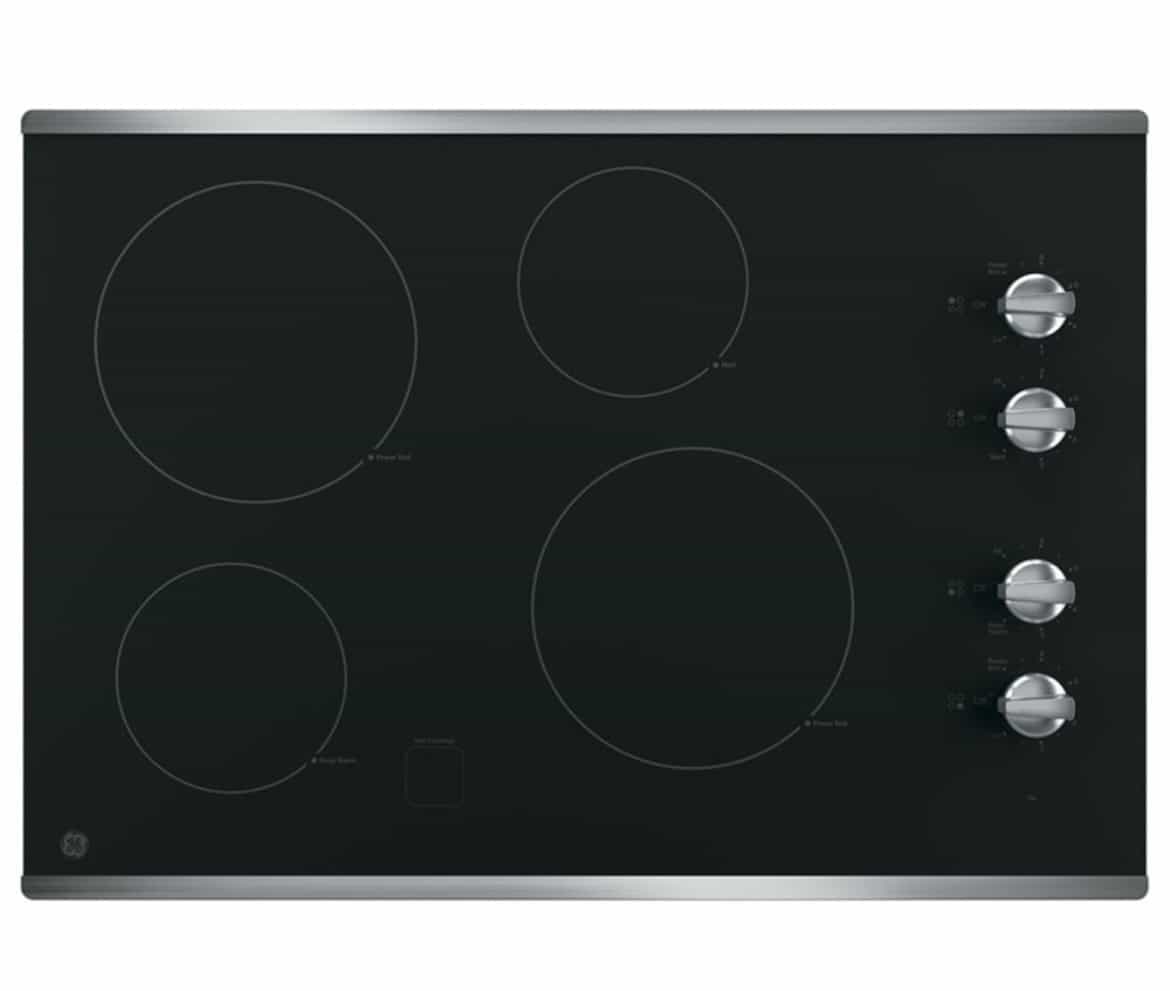

GE Electric Cooktop 30″ Width Stainless Steel JP3030SWSS
New Open Box
Key Spec
| Specification | Value |
|---|---|
| Model | JP3030SWSS |
| Product Type | Built-in electric cooktop |
| Cooktop Type | Radiant smoothtop |
| Fuel Type | Electric |
| Finish / Color | Stainless steel trim with black ceramic glass surface |
| Cooktop Surface | Black ceramic glass |
| Control Type | Knob (infinite switch) |
| Control Location | Right side |
| Dishwasher Safe Knobs | Yes |
| Number of Elements / Burners | 4 radiant elements |
| Element – Left Front | 6″ 1200 W |
| Element – Left Rear | 8″ 2500 W Power Boil |
| Element – Right Front | 8″ 2500 W Power Boil |
| Element – Right Rear | 6″ 1200 W |
| Power Boil Elements | Two 8″ 2500 W elements |
| Simmer / Melt Setting | Yes, dedicated melt setting |
| Keep Warm Setting | Yes, on 6″ element |
| Warming Zone | Yes (via Keep Warm setting on 6″ element) |
| Hot Surface Indicator Lights | 4 hot surface indicator lights |
| Surface Element “On” Indicator Light | Yes |
| Stainless Steel Trim | Yes |
| ADA Compliant | Yes |
| Downdraft Ventilation | No |
| Induction | No (radiant electric) |
| Wi-Fi / Smart Features | No |
| Voltage | 208 / 240 V |
| Frequency | 60 Hz |
| Electrical Requirements | 208/240 V; 60 Hz; 40 A |
| Recommended Circuit Breaker (Amps) at 240 V | 40 A |
| Recommended Circuit Breaker (Amps) at 208 V | 30 A |
| Max. Connected Load (kW) at 240 V | 7.4 kW |
| Max. Connected Load (kW) at 208 V | 5.6 kW |
| Max. Current Draw (Amps) at 240 V | 30.8 A |
| Max. Current Draw (Amps) at 208 V | 26.7 A |
| Overall Width | 29.87–29.88 inches |
| Overall Depth | 21.00 inches |
| Overall Height | 4.00 inches |
| Cooktop Size (Nominal) | 30 inches |
| Cabinet Width (Minimum) | 30 inches |
| Cutout Width | 28.50 inches |
| Cutout Depth | 19.63 inches (19 5/8″) |
| Cutout Height | 4.00 inches |
| Product Weight | Approx. 37 lb (≈16.8 kg) |
| Approximate Shipping Weight | Approx. 43 lb (≈19.5 kg) |
| UPC | 084691948773 |
| Optional Accessories | Filler / trim kit JXTR32B |
| Cooktop Features (Summary) | Four radiant elements; two 8″ 2500 W Power Boil; two 6″ 1200 W; Keep Warm setting; Melt setting; hot surface indicator lights; cooktop “on” indicator; dishwasher-safe knobs |
-
-
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
