| Specification |
Value |
| Product Type |
Custom hood insert / cabinet insert smart range hood |
| Brand Series |
GE Profile / Café compatible smart insert hood |
| Finish / Color |
Stainless Steel |
| Material |
Steel with premium baffle stainless steel filters |
| Style |
Custom insert, under‑cabinet / built‑in |
| Design Style |
Custom, minimalist / statement compatible |
| Cabinet Width |
30 in |
| Class Width |
30 in |
| Overall Width |
28.25 – 28.38 in (varies by retailer rounding) |
| Overall Depth |
19.25 in |
| Overall Height |
12 in |
| Duct Diameter |
8 in round |
| Venting Type |
Convertible (ducted to outside or recirculating) |
| Vent Location |
Top |
| Mounting Type |
Under cabinet / built‑in custom insert |
| Blower Included |
Yes, internal blower |
| Maximum Airflow (Boost) |
610 CFM (adjustable down to approx. 370 or 290 CFM depending on configuration) |
| Maximum Airflow (High, rated) |
430 CFM (vertical venting rating used by some spec sheets) |
| Airflow Settings |
4 fan speeds (including boost) |
| CFM / Sones Rating (High) |
Approx. 288–430 CFM / 4.9–9.5 sones (varies by rating method and retailer) |
| Noise Level (Sones) |
4.9 – 9.5 sones (standard – high, depending on spec source) |
| Wi‑Fi |
Built‑in Wi‑Fi Connect (SmartHQ) |
| Smart Compatibility |
App capable, Wi‑Fi capable, smart compatible |
| Connected Capabilities |
Amazon Alexa, Google Home (via SmartHQ) |
| Chef Connect / Technologies |
Chef Connect Wi‑Fi (syncs with compatible ranges) |
| Remote Control |
Included (wireless remote for hood functions) |

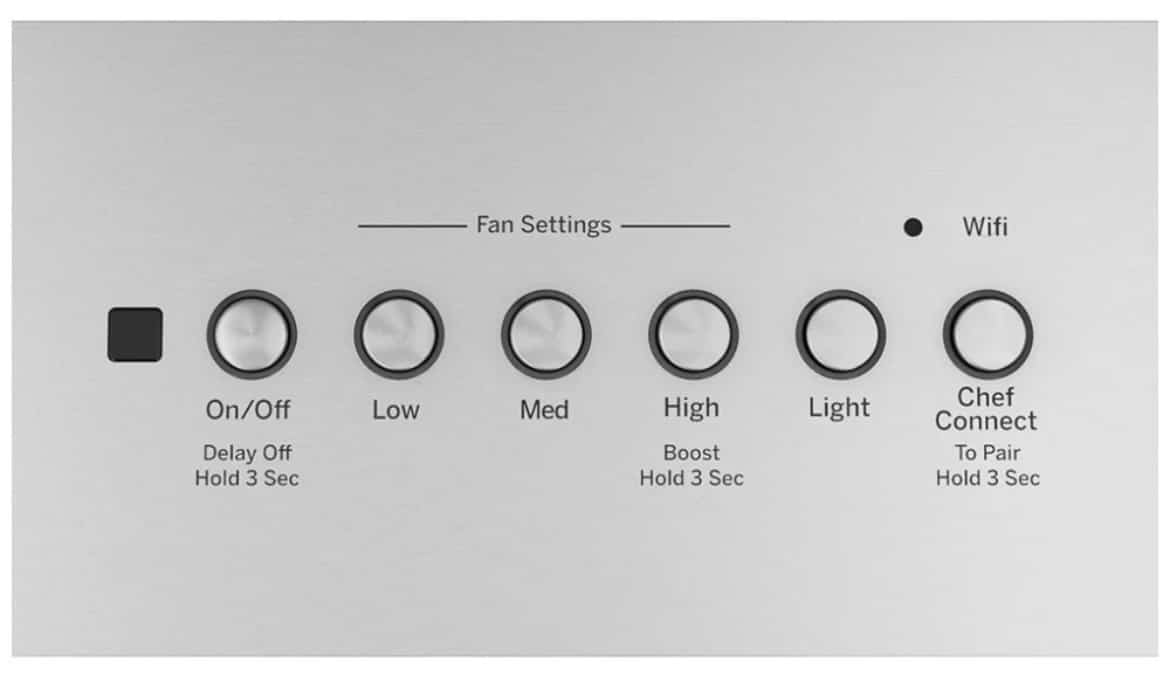

| Control Type |
Backlit electronic controls (up‑front) |
| Control Features |
Delay off, heat sensor, on indicator light |
| Indicator Lights |
“ON” indicator |
| Range Hood Features (summary) |
Wi‑Fi capable, smart compatible, ductless capable (with kit), charcoal filter capable, app capable |
| Cooktop Lighting |
3 LED modules, dimmable |
| Light Controls |
On / Off / Night |
| Light Bulb Type |
LED |
| Filter Type |
Premium baffle stainless steel filters; charcoal filter for recirculation |
| Filter Features |
Removable, dishwasher‑safe filters |
| Dishwasher‑Proof Filters |
Yes |
| Grease Filter Type |
Baffle |
| Charcoal Filter |
Model UXCF91 (for recirculating installations) |
| Exhaust Options |
Recirculating or vented to outside |
| Ducting Information |
8″ round duct, vertical venting |
| Product Type (manufacturer classification) |
Custom hood insert / custom designer insert |
| Electrical Requirements |
120 V; 60 Hz; 2.9 A (typical) |
| Voltage |
120 V |
| Frequency |
60 Hz |
| Amp Rating |
Approx. 2.9–3.0 A (varies slightly by spec sheet) |
| Watts |
Approx. 331 W (where listed) |
| Power Cord |
Hard‑wire standard; optional JXHC1 power cord kit |
| Optional Accessories |
JXHC1 power cord kit; UXN70 recirculation kit |
| Included Accessories |
Remote control; stainless steel baffle filters; LED modules |
| Net Weight |
Approx. 40 lb (about 18.1 kg) |
| Approximate Shipping Weight |
Approx. 50 lb (about 22.7 kg) |
| Shipping Width |
33.5 in |
| Shipping Height |
17.3 in |
| Shipping Depth |
24.4 in |
| Positioning |
Stationary insert |
| ADA Compliant |
Varies by listing (some list Yes, some No) |
| ENERGY STAR Certified |
No |
| Smart Home Options |
Alexa, Google Home (via SmartHQ app) |
| Wi‑Fi Enabled |
Yes |
| Remote Monitoring / Control |
Yes, via SmartHQ app and included remote |
| Range Hood Type |
Insert / custom insert |
| Ventilation Type |
Ducted or ductless (with recirculation kit) |
| Noise Level Category |
Standard – high (per sones ratings) |
