Description

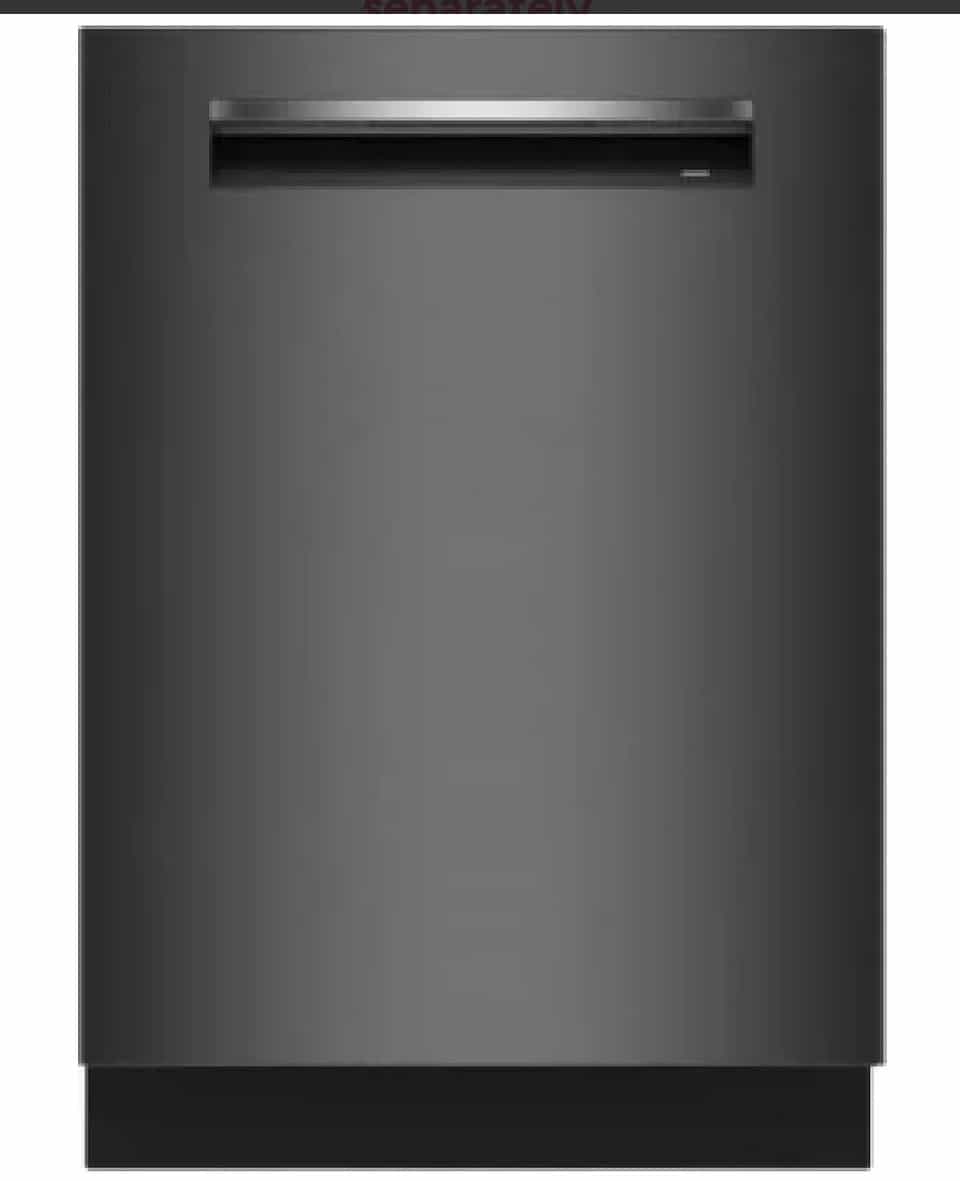

Bosch 800 Series Dishwasher 24″ width 42 dB 3 Loading Racks SHX78CM4N
New Open boxed
| Specification | Value |
|---|---|
| Brand | Bosch |
| Series | 800 Series |
| Model | SHX78CM4N |
| Product Type | Built-in dishwasher (built-under) |
| Color / Finish | Black Stainless Steel / Brushed black steel anti-fingerprint |
| Capacity: Place Settings | 16-place settings |
| Width: Inches | 23 9/16 in (approx. 23.56 in) |
| Height: Inches | 33 7/8 in (approx. 33.87–33.88 in) |
| Depth: Inches (cabinet / without handle) | 23 3/4 in (approx. 23.75 in) |
| Depth: Inches (with handle) | 25 1/2 in (some retailers list 25.5 in) |
| Depth: Inches (with door open) | 47.5–48 1/4 in (varies slightly by retailer) |
| Required Cutout (H x W x D) | 33 7/8 in x 24 in x 24 in |
| Common Dishwasher Size | 24 in |
| Tub Material | Stainless steel |

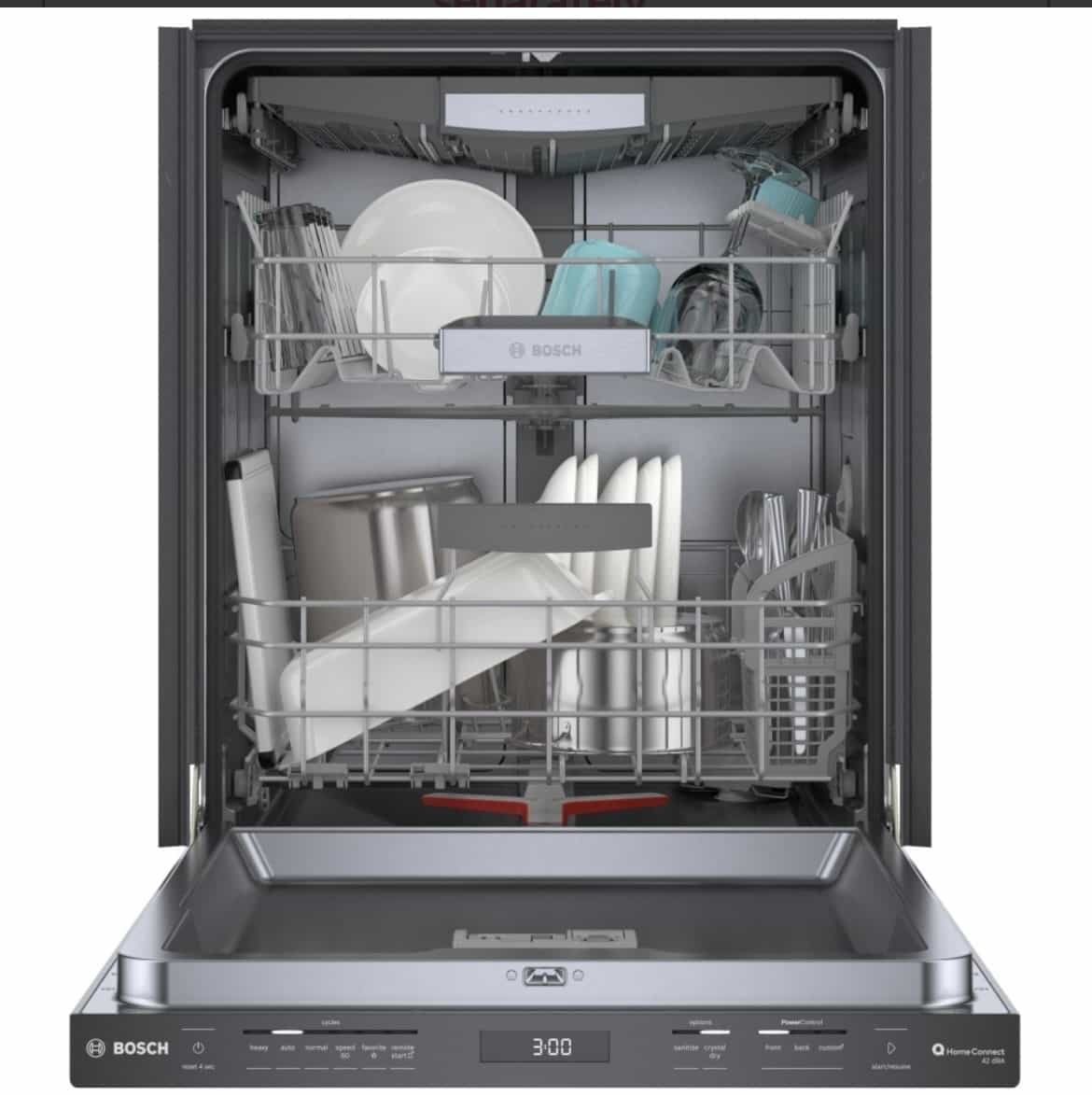

| Number of Racks | 3 (includes Flexible 3rd rack) |
| 3rd Rack System | Flexible 3rd rack |
| Rack Adjustability | RackMatic adjustable middle rack (up to 9 positions) |
| Rack System | EasyGlide rack system on all three racks |
| Sound Rating | 42 dBA |
| Energy Star Certified | Yes |
| Annual Energy Use | Approx. 240 kWh/year |
| Water Use per Cycle | Approx. 3.2 gallons per cycle |
| Number of Programs / Cycles | 5 wash programs on unit; 5 + 3 additional cycles via Home Connect (total 8) |
| List of Programs (Canada / manufacturer) | Auto, Favorite, Heavy, Normal, Speed 60 |
| List of Programs (other listings) | Intensive, Auto 53–60°C, Eco, Quick L, Custom program |
| Number of Options | 4 on-unit options + 2 additional via Home Connect |
| Special Functions / Options | CrystalDry, Remote Start, Sanitize, ZoneControl Front, ZoneControl Back, ZoneControl Custom |
| Drying System (marketing) | CrystalDry technology |
| Drying System (technical) | Zeolite, inherent heat |
| Leak Protection | 24/7 AquaStop leak protection system (some Canadian/US retail listings) |
| Water Protection with Warranty – Aquastop | No (per some spec sheets; leak protection present but not Aquastop warranty) |
| Soil-Sensing Capability | Yes (PrecisionWash with PowerControl wash system) |
| Silence Level Description | Extremely quiet – EcoSilence Drive |

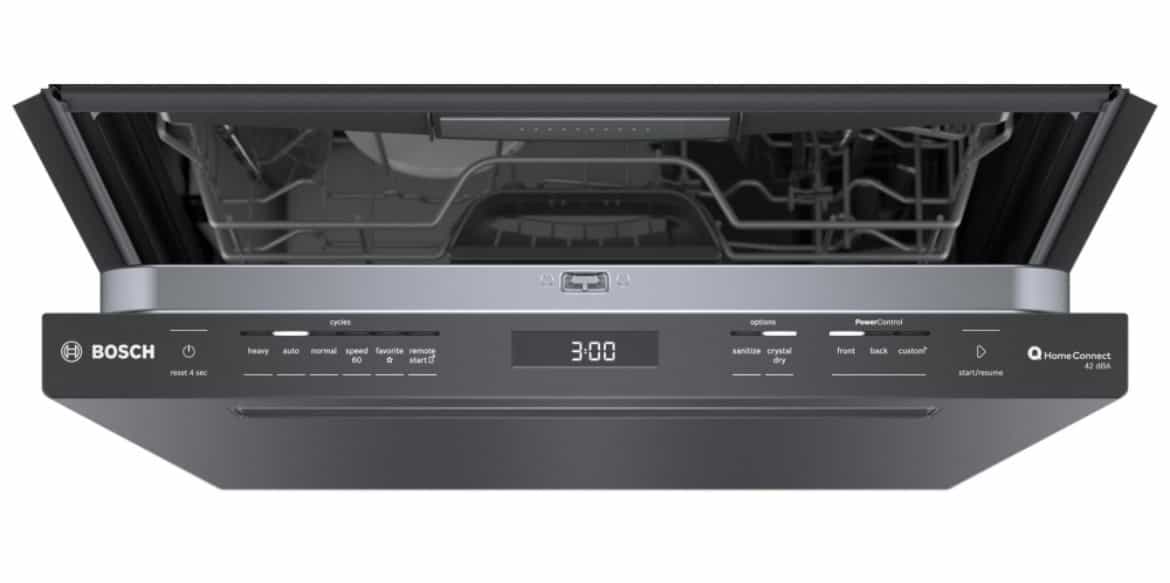

| Control Type | Electronic touch controls |
| Control Location | Top control (hidden when door closed) |
| Display | Yes |
| Program Status Indication | Program status light; InfoLight red beam on floor |
| Program Status Light Color | Red |
| Delay Start | Yes (up to 24 hours) |
| Interior Light | No |
| Control Lock / Child Lock | Control lock: Yes; Child safety lock flag: False on some spec sheets |
| Water Softener | No |
| NSF Certified (Sanitize) | Yes |
| Connectivity | Wi‑Fi enabled with Home Connect |
| Home Connect Features | Remote monitoring and control; additional cycles and options via app |
| Works With | Amazon Alexa, Google Assistant, SmartThings (via Home Connect) |
| Installation Type | Built-under, built-in |
| ADA Compliant | No |
| Removable Top | No |
| Adjustable Feet | Yes – all from front |
| Power Cord Length | 67 in |

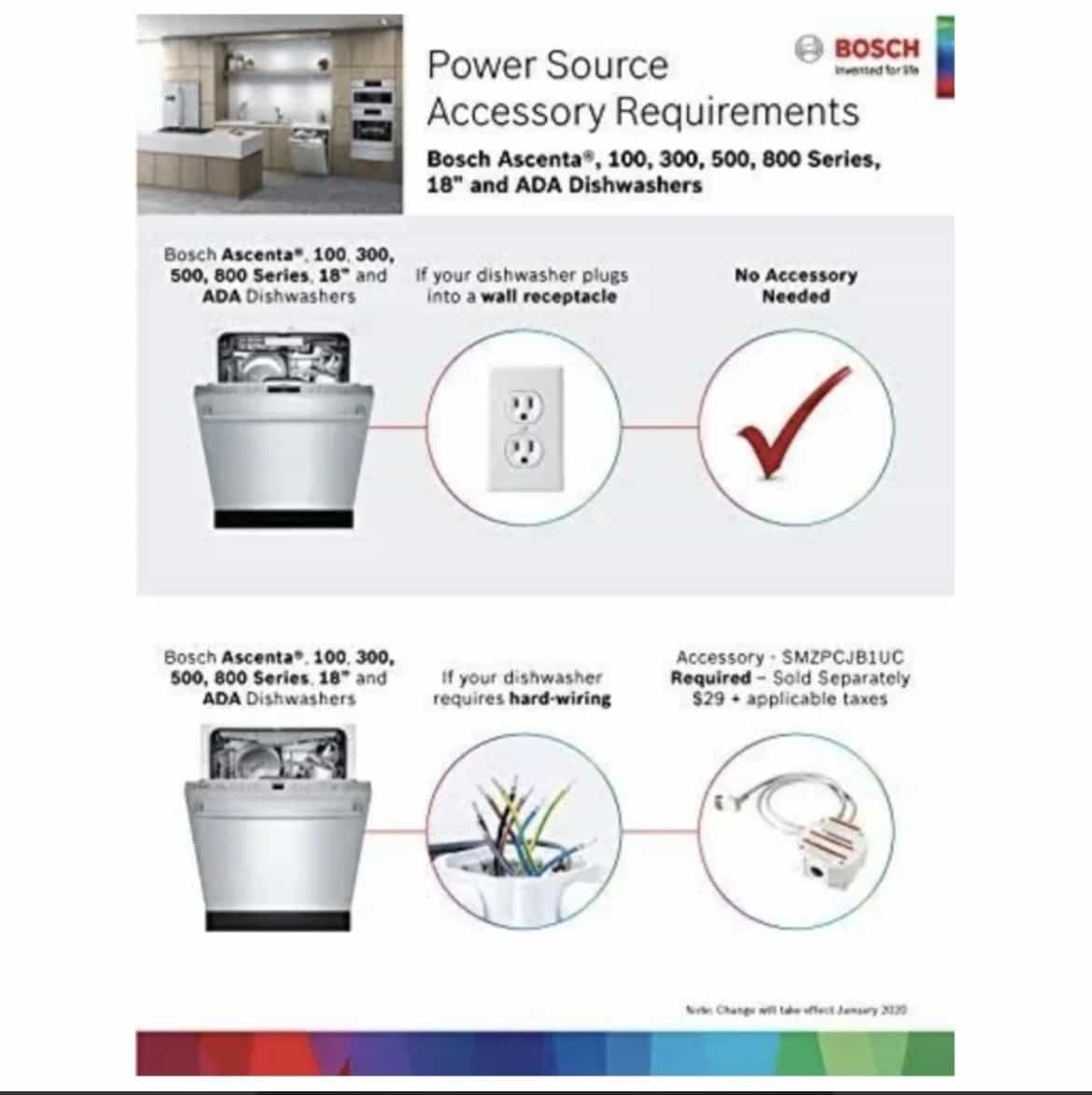

| Electrical Requirements | 120 V, 60 Hz, 12 A |
| Connection Rating | 1440 W |
| Plug Type | NEMA 5-15P |
| Total Annual Water Consumption | Approx. 688 (typical spec listing; units often L/year) |
| Place Setting Capacity (EnergyStar listing) | 13 (EnergyStar database for SHX78CM** family) |
| Door Panel Options | Not possible (fixed panel) |
| Handle Type | Bar handle |
| Fingerprint Resistant | Yes (Black Inox / anti-fingerprint finish) |
| Concealed Heating Element | Yes |
| Number of Wash Levels | 5-level wash |
| InfoLight | Yes (red floor beam) |
| EmotionLight / Sidelight | No |
| Appliance Dimensions (H x W x D) | 33 7/8 in x 23 9/16 in x 23 3/4 in |
| Net Weight | Approx. 92–96 lb (varies slightly by listing) |
| Gross / Shipping Weight | Approx. 101 lb |
| UPC | 825225966166 (plus related UPCs in SHX78CM** family) |
| Market | United States and Canada |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
