Description

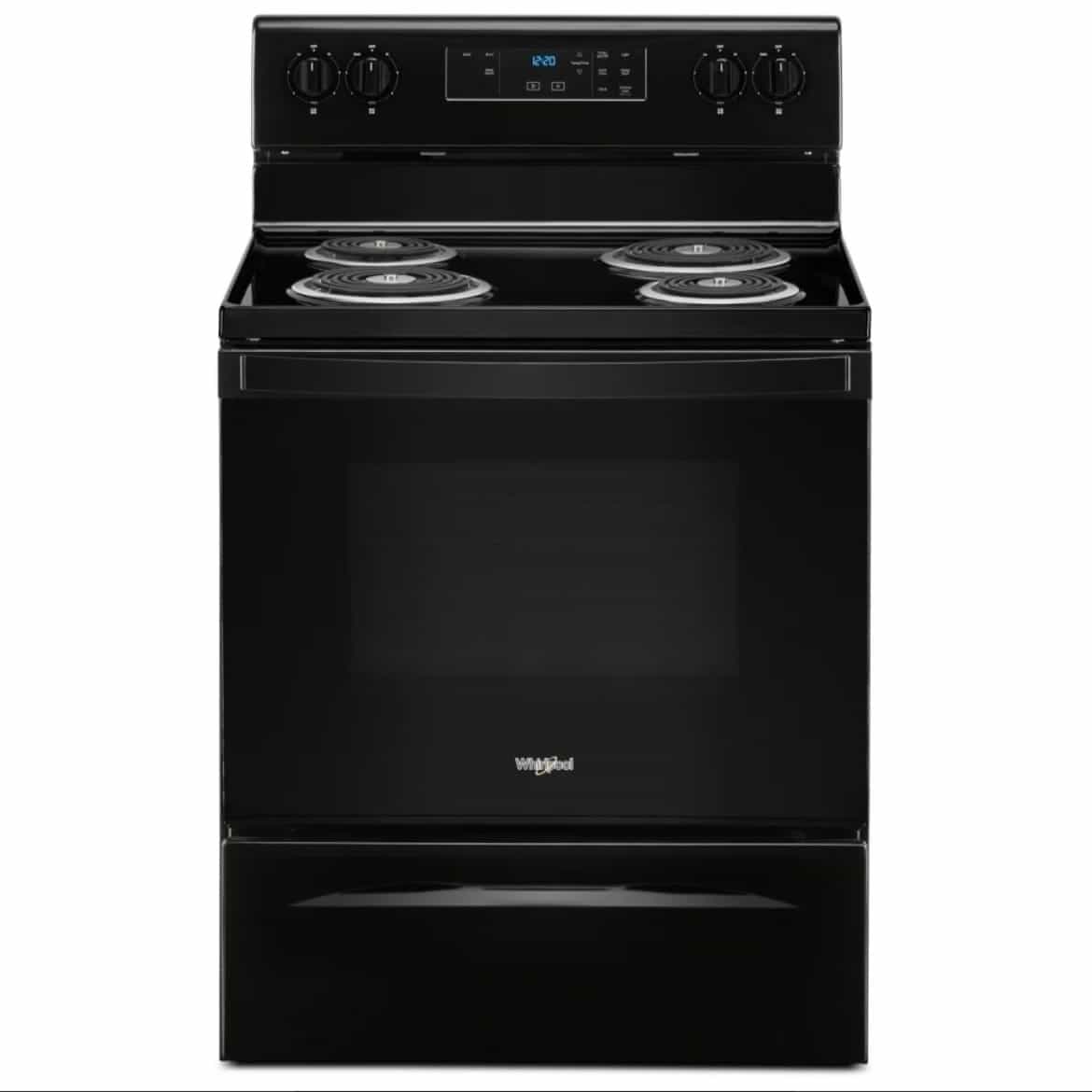

Whirlpool Electric Range 4.8 cu ft 30″ Width 4 Burners YWFC150MOJB
| Specification | Value |
|---|---|
| Capacity | 4.8 Cu Ft |
| Width | 29.88 inches |
| Height | 47.88 inches |
| Depth | 28 inches |
| Depth (without handle) | 25.31 inches |
| Depth (with handle) | 28 inches |
| Cutout Width | 29.88 inches |
| Width Class | 30 inches |
| Product Weight | 136 lb (approx. 62 kg) |
| General | |
| Brand | Whirlpool |
| Model | YWFC150M0JB |
| Product Type | Freestanding Electric Range |
| Fuel Type | Electric |
| Color | Black |
| Range Configuration | Freestanding |
| Oven Configuration | Single Oven |

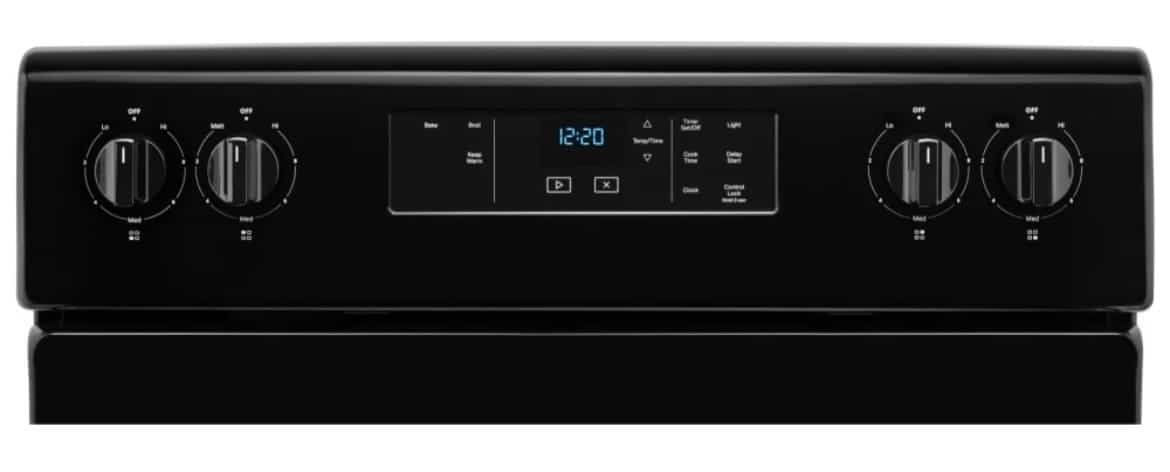

| Control Location (Cooktop & Oven) | Backguard |
| Control Type | Electronic touch oven controls with knobs |
| Front Control | No |
| Handle Type | Reach-through handle |
| Handle Material | Metal |
| Handle Color | Black |
| Door Type | Glass window |
| Oven Window | Large EasyView window |
| Drawer Type | Storage drawer |
| Electrical | |
| Voltage | 240 V |
| Frequency | 60 Hz |
| Amperage | 40 A |
| Power Cord Included | Yes (per some Canadian retailers; cord type may vary by region/installer) |
| Energy Consumption | Approx. 542 kWh/year |
| Cooktop | |

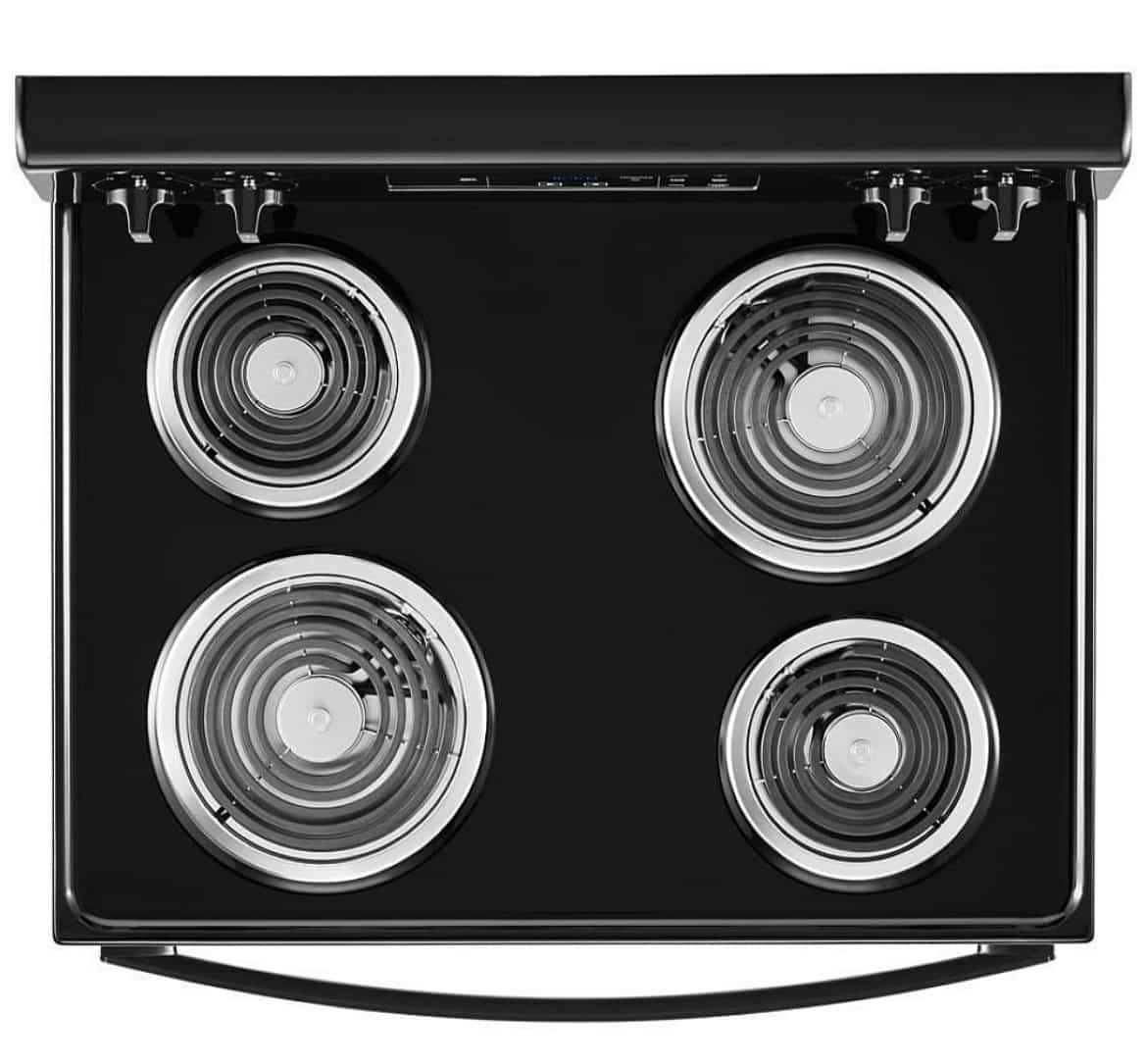

| Cooktop Type | Coil, electric |
| Cooktop Surface Material | Porcelain coated steel |
| Cooktop Surface Design | Upswept SpillGuard cooktop with raised edges |
| Number of Elements | 4 |
| Element Type | Coil |
| Left Front Element Size / Power | 8 in / 2400 W |
| Left Rear Element Size / Power | 6 in / 1500 W |
| Right Front Element Size / Power | 6 in / 1500 W |
| Right Rear Element Size / Power | 8 in / 2400 W |
| Expandable / Dual / Triple Elements | No |
| Maximum Element Power | 2400 W |
| Hot Surface Indicator Light | Yes |
| Heating Element On Indicator Light | Yes |
| Griddle Included | No |
| Power Outage Compatible | No |
| Oven | |

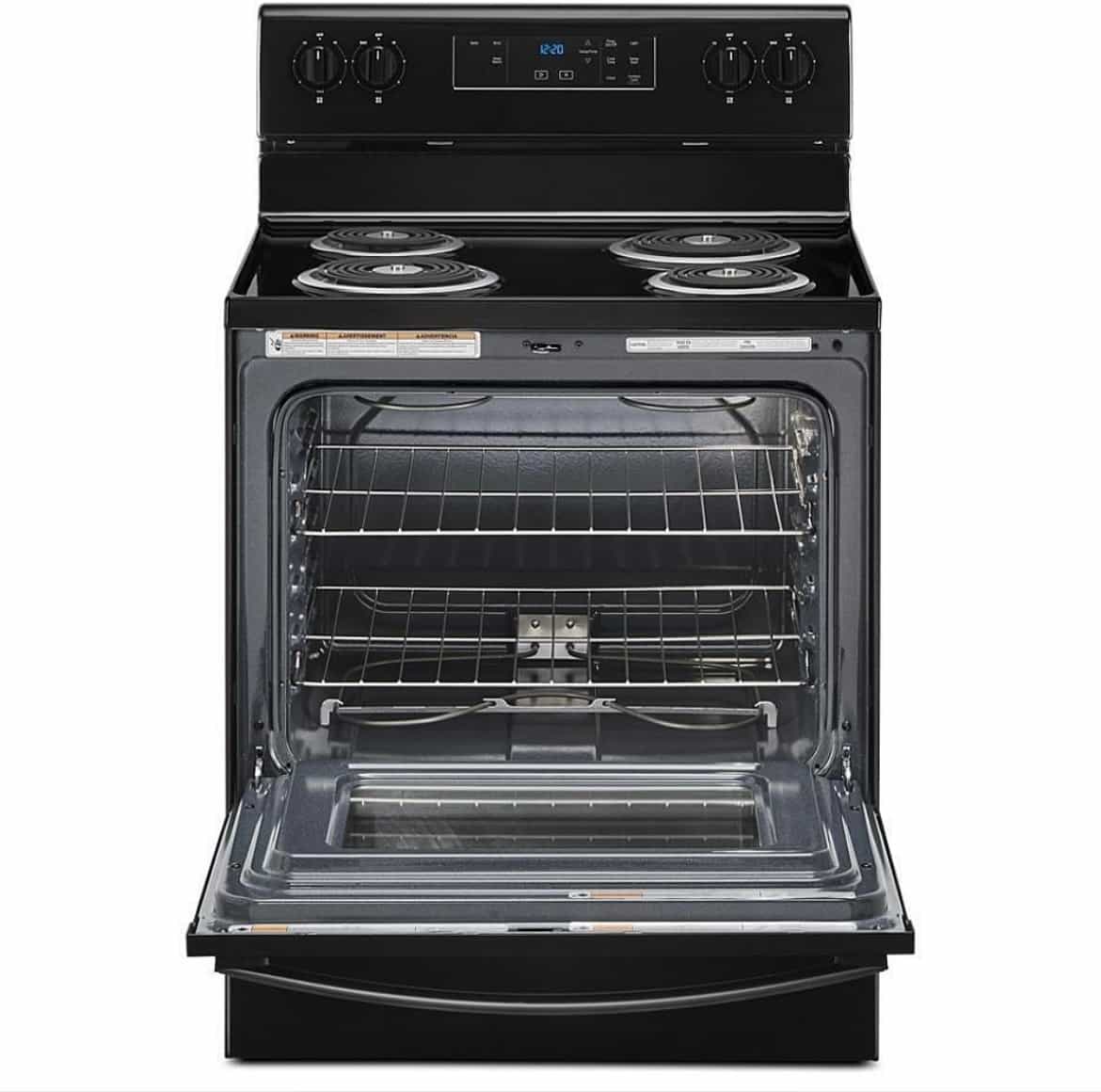

| Oven Capacity | 4.8 Cu Ft |
| Oven Cooking System | Thermal (non-convection) |
| Bake Element Power | 2400 W |
| Broil Element Power | 3400 W |
| Broiling Type | Closed door broiling |
| Self-Cleaning | No (manual clean) |
| Number of Oven Racks | 2 |
| Rack Positions | 5 |
| Oven Interior Color | Black |
| Oven Light | 1 interior light |
| Oven Interior Depth | 18.5 inches (approx.) |
| Oven Interior Width | 24.5 inches (approx.) |
| Oven Interior Height | Approx. 18.3 inches (from some retailer specs) |
| Oven Cooking Modes | Bake, Broil, Keep Warm |
| Oven Cleaning Type | Standard/manual |
| Features & Functions | |
| Keep Warm Setting | Yes |
| Timer | Yes |
| Delay Start / Delay Bake | Yes |
| Cook Time / Stop Time | Yes (cooking time and stop time options) |
| Audible Signal | Yes |
| Control Lock | Yes (oven control lock to prevent unintended use) |
| Sabbath Mode | Yes |
| Clock | Yes (electronic) |
| Digital Display | Yes (blue LED display on some retailer descriptions) |
| Favorite Setting | No |
| Food Temperature Probe | No |
| Glide/Rollout Racks | No |
| Half/Split Rack | No |
| Hidden Bake Element | No |
| Double Oven | No |
| Safety | |
| Control Lock (Oven Lockout) | Yes |
| Door Lock (Self-Clean Lock) | No separate self-clean door lock (no self-clean cycle) |
| Hot Surface Indicator | Yes |
| Heating Element On Indicator | Yes |
| Certifications & Compliance | |
| UL Listed | Yes |
| ADA Compliant | No |
| CUL | No (per US spec sheet; Canadian units sold under YWFC150M0JB meet Canadian requirements) |
| Prop 65 | Applies in California (US models) |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
