| Specification |
Value |
| Product |

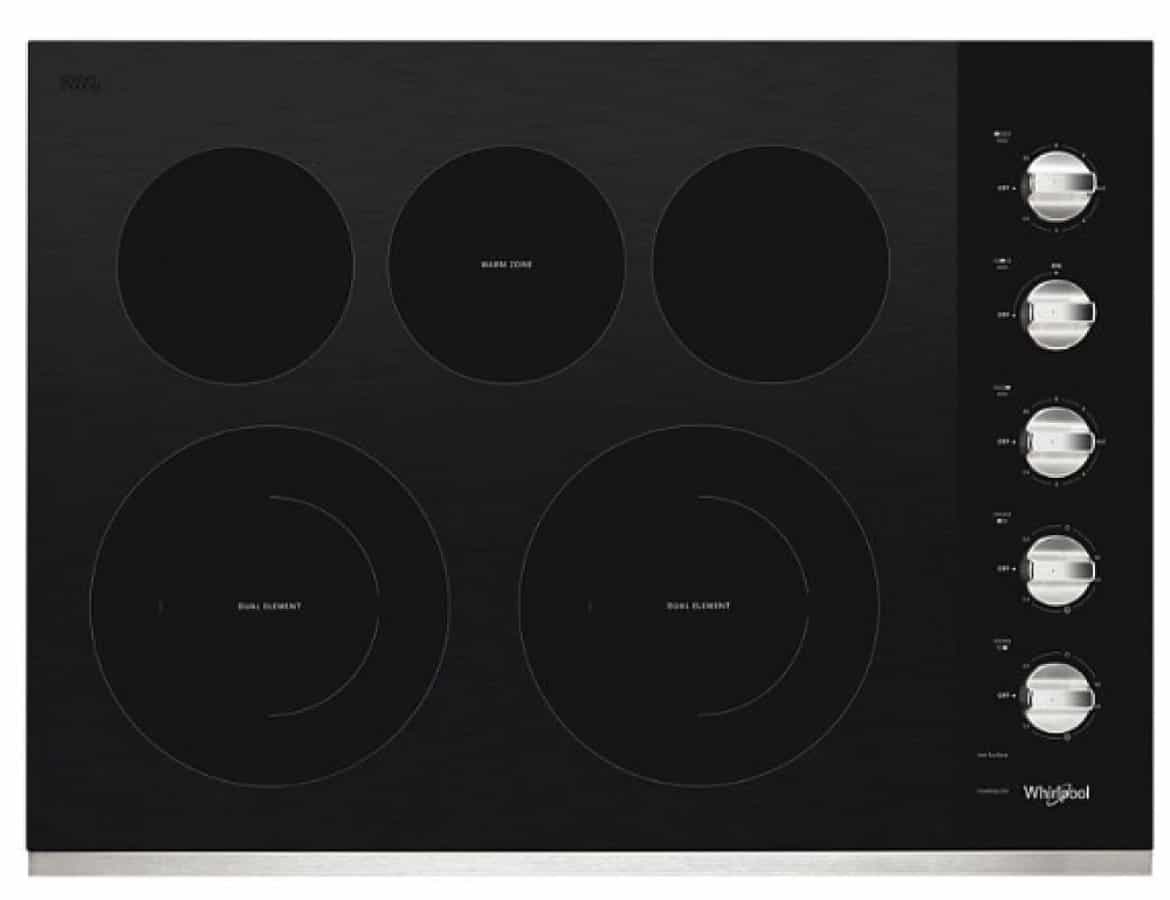

Whirlpool 30-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements |
| Model |
WCE77US0HS |
| Fuel Type |
Electric |
| Cooktop Type |
Standard Smoothtop / Ceramic Glass Radiant |
| Number of Elements / Burners |
5 |
| Element Type |
Radiant Elements |
| Center Rear Element Type |
Warming |
| Left Front Element Type |
Dual Radiant |
| Right Front Element Type |
Dual Radiant |
| Left Rear Element Type |
Standard Radiant |
| Right Rear Element Type |
Standard Radiant |
| Center Rear Element Size |
6 inches (Warm Zone) |
| Left Rear Element Size |
6 inches |
| Right Rear Element Size |
6 inches |
| Left Front Element Size |
6 / 10 inches (Dual) |
| Right Front Element Size |
6 / 10 inches (Dual) |
| Center Rear Element Power |
100 W |
| Left Rear Element Power |
1200 W |
| Right Rear Element Power |
1200 W |
| Left Front Element Power |
3000 W / 1900 W (Dual) |
| Right Front Element Power |
3000 W / 1900 W (Dual) |
| Highest Element Output |
3000 W |
| Warm Zone Element |
Yes (Center Rear 6″ / 100 W) |
| FlexHeat Dual Radiant Elements |
2 (Left Front and Right Front) |
| Number of Cooking Element-Burners |
5 |
| Cooktop Surface Material |
Glass / Ceramic Glass |
| Cooktop Surface Color |
Black |
| Surface Features |
Easy-wipe ceramic glass cooktop |

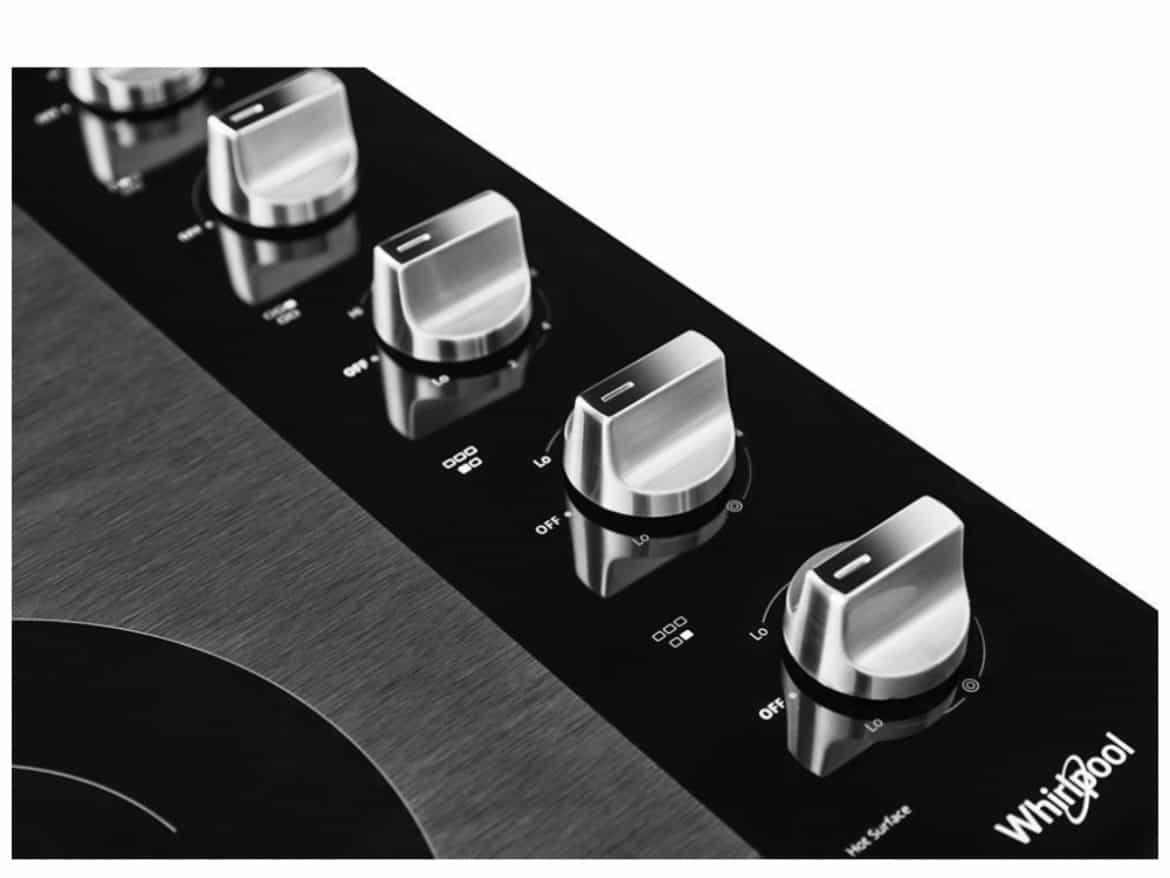

| Control Type |
Knobs, Infinite Heat Controls |
| Control Location |
Right Side |
| Knob Color |
Stainless Steel |
| Knob Type |
Dishwasher-safe plastic |
| Heating Element On Indicator Light |
Yes |
| Hot Surface Indicator Light |
Yes |
| Automatic Pan Detection |
No |
| Power Boost |
No |
| Digital Display |
No |
| WiFi Connected |
No |
| Smart Appliance |
No |
| Works with Alexa |
No |
| Works with Google Assistant |
No |
| Downdraft Ventilation |
No |
| Hood Recommended |
Yes |
| Induction |
No |
| Gas Conversion Kit Included |
No |
| LP Convertible |
No |
| Pan Presence Sensor |
No |
| Ignition Type |
Automatic Electronic (electric radiant) |
| Commercial Use Approved |
No |
| Smart Compatible |
No |
| Energy Star Certified |
No |
| ADA Compliant |
Yes (ADA Height and Operation Compliant) |
| Prop 65 |
Standard warning for California residents |
| Color / Finish |
Stainless Steel Trim |
| Color Family |
Stainless Steel |
| Type |
Built-in Electric Cooktop |
| Nominal Width |
30 inches |
| Common Size |
30 inches (76.2 cm) |
| Width |
30.81 inches (30 13/16 in / 78.26 cm) |
| Depth |
22.88 inches (22 7/8 in / ~58.1 cm) |
| Height |
5.25 inches (5 1/4 in / 13.34 cm) |
| Appliance Fit Width |
30 inches (approx. 78 cm) |
| Cutout Width |
29.06 inches (29-1/16 in / 73.82 cm) |
| Cutout Width Min |
29.06 inches (29-1/16 in) |
| Cutout Width Max |
29.56 inches (29-9/16 in / 75.09 cm) |
| Cutout Depth |
20.38 inches (20-3/8 in / 51.75 cm) |
| Cutout Depth Min |
20.38 inches (20-3/8 in) |
| Cutout Depth Max |
20.56 inches (20-9/16 in / 52.23 cm) |
| Shipping Width |
35 inches (carton) |
| Shipping Depth |
25 inches (carton) |
| Shipping Height |
9.25 inches (carton) |
| Net Weight |
41 lb (18.6 kg) |
| Gross / Shipping Weight |
46 lb (20.87 kg) |
| Voltage |
208 / 240 V |
| Frequency |
60 Hz |
| Amperage |
40 A |
| 208 V Compatible |
Yes |
| Power Cord Included |
No |
| Energy Rating (where listed) |
258 (site-specific listing) |
| Safety Features |
Hot Surface Indicator Light |
| Key Features |
5-Element Cooktop, FlexHeat Dual Radiant Elements, Warm Zone Element, Easy-to-clean ceramic glass surface |
| Wall Oven Compatible |
Yes, can be installed over a built-in wall oven |
| Combination Match with Whirlpool Ovens |
Compatible with select Whirlpool wall ovens (e.g., WOS11EM4, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS51ES4, WOS52EM4, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS97EC0, WOS97ES0, WOSA2EC0) |
