Description
KitchenAid Electric Cooktop Downdraft. 30″ Width KCED600GBL
New Open Box
| Specification | Value |
|---|---|
| Brand | KitchenAid |
| Model | KCED600GBL |
| Product Type | Built-in Electric Cooktop with Integrated Downdraft Ventilation |
| Fuel Type | Electric |
| Cooktop Type | Downdraft, Smoothtop Radiant |
| Number of Elements / Burners | 4 |
| Element Type | Radiant (Smoothtop) |
| Control Type | Knobs |
| Control Location | Right Side |
| Surface Material | Pure Color Ceramic-Glass |
| Surface Color | Black |
| Color / Finish Name | Black |
| Stainless Steel Knobs | Yes |
| CookShield Finish for Glass Surface | Yes |

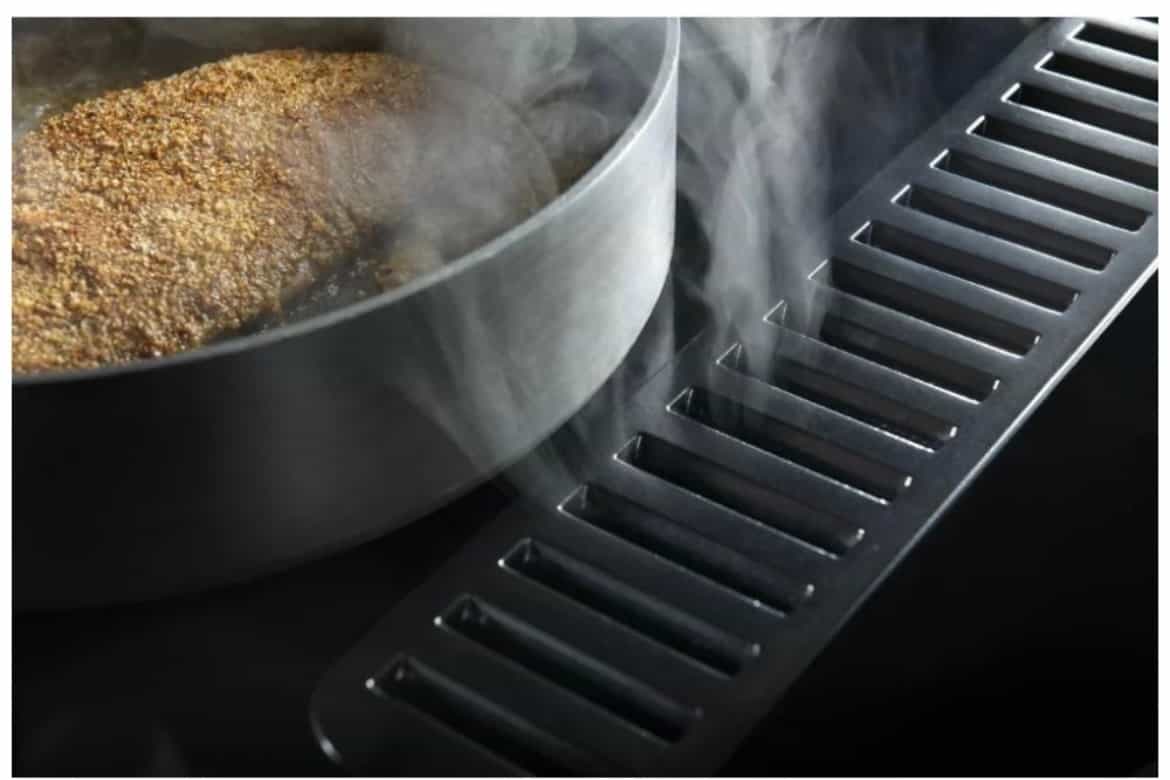

| Downdraft Venting | Yes (Integrated) |
| Downdraft Ventilation Type | Exhausts outside or convertible to duct-free recirculating (duct-free kit sold separately) |
| CFM Motor Class | 300 CFM |
| Fan Speeds | 3-speed fan control |
| Convertible to Duct-Free Ventilation | Yes (with optional kit) |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Power-On Indicator Light | Yes |
| Digital Display | No |
| Power Boost | No |
| Melt Setting | Yes (on 6″ Even-Heat™ element) |
| Simmer Capability | Yes (multiple simmer settings on 10″ Even-Heat™ Ultra element) |
| Power Boil / High-Output Capability | Yes (Ultra Power™ Double-Ring element and 10″ Even-Heat™ Ultra element) |
| Wi-Fi | No |
| Smart Home Compatible | No |
| Commercial Use Approved | No |
| Ignition Type | Automatic Electronic (for controls / power) |
| Induction | No (radiant electric) |
| LP / Propane Convertible | No (electric cooktop) |
| Installs Over Built-In Oven | No (per manufacturer spec) |
| Power Outage Compatible | No |
| Width | 30.87 inches (approx. 30 7/8″) |
| Depth | 22.06 inches (22 1/16″) |
| Height (cooktop above counter) | 3.63 inches (3 5/8″) |
| Cutout Width | 28.75–28.88 inches (28 3/4″–28 7/8″ typical) |
| Cutout Depth | 21.13 inches (21 1/8″) |
| Class Width | 30″ cooktop |
| Product Weight | 50 lb (22.68 kg) |
| Shipping Weight | Approx. 62 lb (28.1 kg) |
| Shipping Width | 35.13 inches |
| Shipping Height | 23.81 inches |
| Shipping Depth | 26.44 inches |
| Voltage | 240 V (120/240 V compatible on some Canadian spec sheets; typically 220–240 V supply) |
| Frequency | 60 Hz |
| Amperage | 40 A |
| Minimum Circuit Required | 40 A dedicated circuit |
| Left Front Element Type | 10″ Even-Heat™ Ultra element with Simmer setting |
| Left Front Element Size | 10 inches |
| Left Front Element Power | 3,200 W |
| Left Rear Element Type | 6″ Even-Heat™ element with Melt setting |
| Left Rear Element Size | 6 inches |
| Left Rear Element Power | 1,300 W |
| Right Front Element Type | Single round element |
| Right Front Element Size | 6 inches |
| Right Front Element Power | 1,200 W |
| Right Rear Element Type | 9″/6″ Ultra Power™ Double-Ring round element (dual-stacked) |
| Right Rear Element Size | 9 inches / 6 inches |
| Right Rear Element Power | 3,000 W (9″) / 1,400 W (6″) |
| Even-Heat™ Technology | Yes – 10″ Even-Heat™ Ultra element and 6″ Even-Heat™ element |
| Ultra Power™ Double-Ring Element | Yes – 9″/6″ Ultra Power™ Double-Ring round element |
| Number of Cooking Zones | 4 |
| Cooktop Features | Hot-surface indicator, heating-on indicator, dual element, downdraft ventilation, CookShield finish, stainless steel knobs |
| ADA Compliant | No |
| UL Listed | Yes |
| Sabbath Mode | No |
| Manufacturer Warranty (Base) | 1-year limited parts and labor (typical KitchenAid manufacturer warranty) |
| Retailer-Listed Warranty Variations | Some retailers list extended or promotional warranties (e.g., up to 5-year limited parts and labor); actual coverage depends on point of purchase. |
| UPC | 883049415925 |
| GTIN | 00883049415925 |
| Appliance Fit Width | 30 inches |
| Width Class (Retailer Classification) | 30″ (some Canadian retailers may list width class differently, but physical width is ~30.87″) |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
