| Specification |
Value |
| Brand |
Samsung |
| Model |

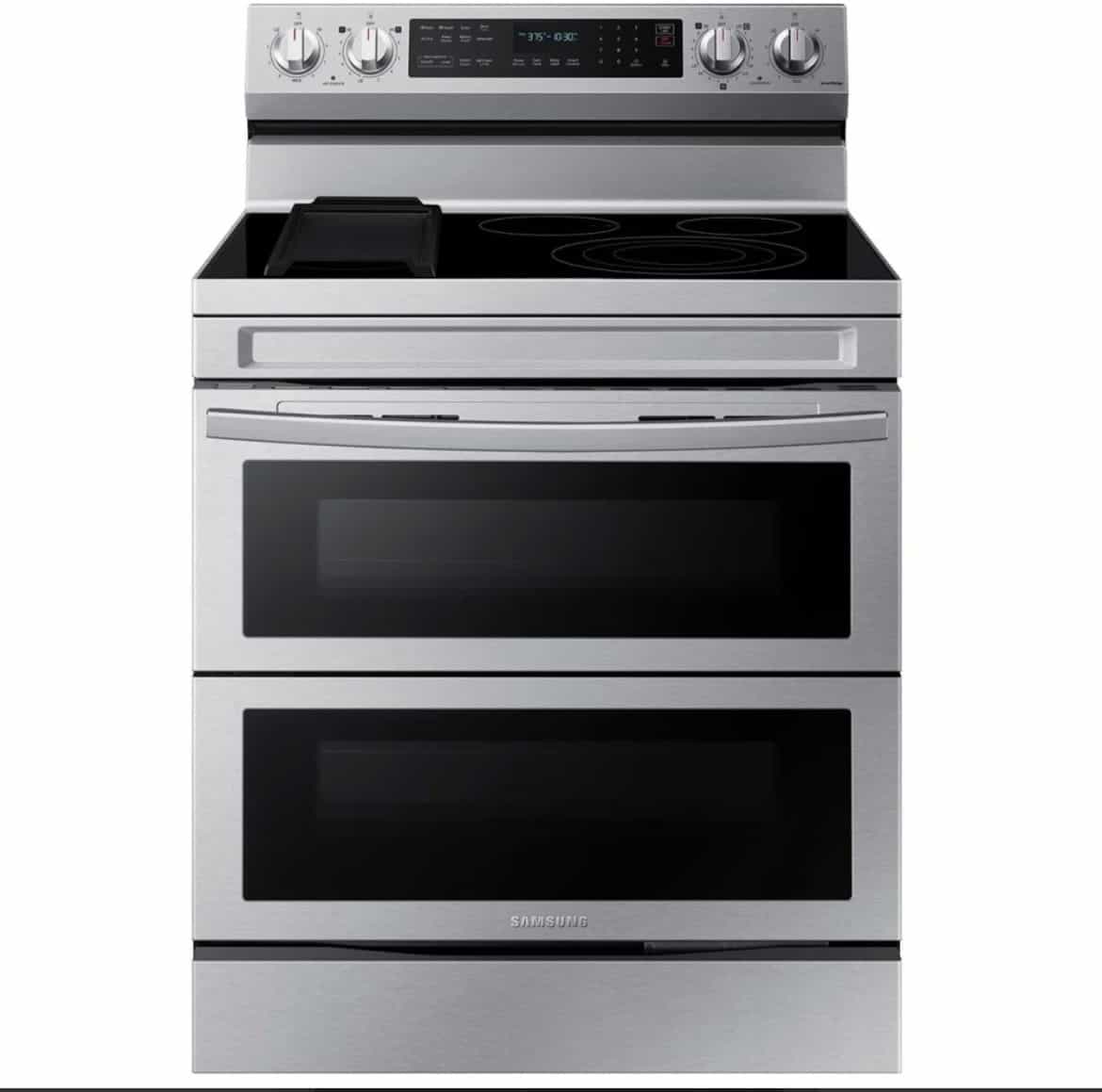

NE63A6751SS / NE63A6751SS/AA |
| Product Type |
Freestanding Electric Range |
| Configuration |
Flex Duo™ (single cavity with removable divider for double-oven use) |
| Fuel Type |
Electric |
| Color |
Fingerprint Resistant Stainless Steel |
| Door Panel Type |
Glass |
| Cavity Type |
Flex Duo |
| Range Style |
Freestanding, rear control |
| Cooktop Type |
Smoothtop / Glass-ceramic |
| Surface Type |
Ceramic glass |
| Fingerprint Resistant Finish |
Yes |
| Capacity |
| Total Oven Capacity |
6.3 cu ft |
| Upper Oven Capacity (with divider) |
3.4 cu ft |
| Lower Oven Capacity (with divider) |
2.7 cu ft |
| Drawer Capacity |
Approx. 1.0 cu ft (storage drawer) |
| Dimensions & Weight |
| Width |
29 15/16 in (approx. 29.94 in / 29.96 in nominal 30 in) |
| Depth (cabinet to front, including handle) |
28 11/16 in (approx. 28.68–28.69 in) |
| Depth (without handle) |
Approx. 26.44 in |
| Height (overall, adjustable) |
46 5/16 – 47 1/16 in (approx. 46.31–47.06 in) |
| Depth with Door Open 90° |
49 1/4 in (approx. 49.25 in) |
| Oven Interior Width |
24 13/16 in |
| Oven Interior Height |
22 7/16 in |
| Oven Interior Depth |
19 3/4 in |
| Product Weight |
Approx. 192 lb (86–87 kg) |
| Shipping Width |
Approx. 33.03–33.06 in |
| Shipping Height |
Approx. 50.56–50.59 in |
| Shipping Depth |
Approx. 30.28–30.31 in |
| Shipping Weight |
Approx. 213–215 lb |
| Electrical & Power |
| Power Supply |
240 / 208 V, 60 Hz |
| Minimum Circuit Requirement |
40 A |
| Power Source |
Hardwired, 4‑wire or 3‑wire range connection (per local code) |
| Bake Element Power |
Approx. 3000 W |
| Broil Element Power |
Approx. 4200 W |
| Convection Heater Element Power |
Approx. 1300 W |

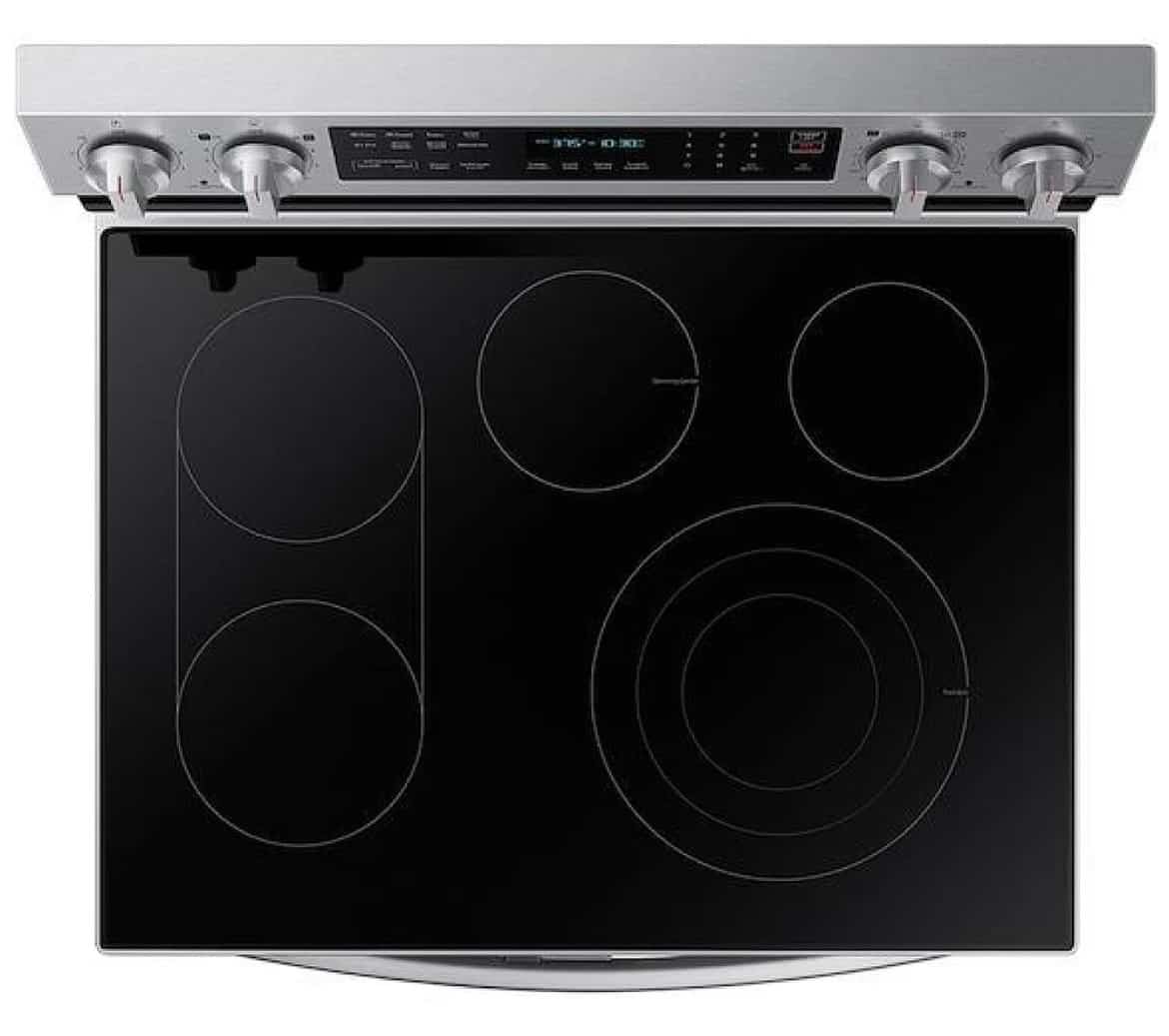

| Cooktop Configuration |
| Total Number of Burners / Elements |
5 |
| Right Front Element |
6″/9″/12″ Triple Ring, 3000 W |
| Right Rear Element |
6″ Single, 1200 W |
| Left Front Element |
Bridge-capable, 1800 W (up to 2600 W with bridge) |
| Left Rear Element |
Bridge-capable, 1800 W |
| Center Element |
Warming Center, 100 W |
| Induction |
No (radiant electric) |
| Hot Surface Indicator Light |
Yes |
| Cooktop Material |
Glass-ceramic |
| Cooktop Surface Style |
Glass-top / smoothtop |

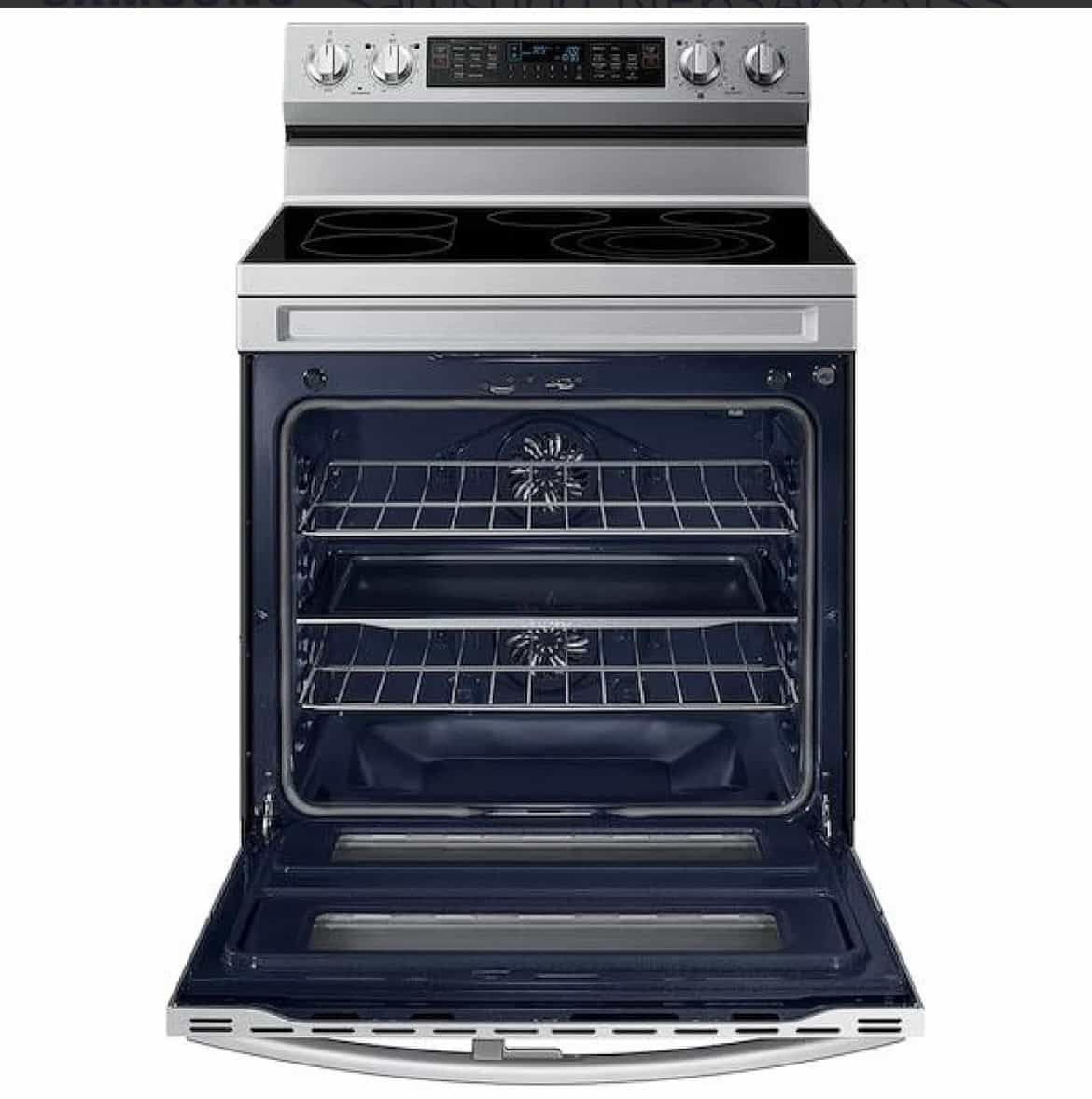

| Oven Features |
| Cooking System |
Convection+ (True Convection with fan element) |
| Convection Bake |
Yes |
| Convection Roast |
Yes |
| Convection+ |
Yes |
| Double Oven Option |
Yes, with removable Flex Duo™ divider |
| Air Fry |
Yes, No‑Preheat Air Fry |
| Air Fry Tray Included |
Yes |
| Bake |
Yes |
| Variable Broil |
Yes, Low–High |
| Keep Warm |
Yes |
| Bread Proof / Proofing |
Yes |
| Dehydrate |
Yes |
| Total Number of Racks |
2 |
| Rack Type |
2 wire racks |
| Number of Rack Positions |
7 |
| Oven Light |
Incandescent, typically 1–2 × 40 W |
| Interior Light Type |
Incandescent |
| Oven Window |
Wide view window |
| Hidden Bake Element |
Yes |
| Soft Close Door |
Yes |
| Removable Door |
Yes |
| Controls & Display |
| Oven Controls |
Touch controls |
| Cooktop Controls |
Stainless knobs / dials |
| Display Type |
Digital display |
| Display Color |
Ice Blue |
| Clock |
Yes |
| Kitchen Timer |
Yes |
| Delay Start / Delay Bake |
Yes |
| Control Lock / Child Lock |
Yes |
| Temperature Control |
Electronic, with digital temperature display |
| Convection Auto Conversion |
Yes |
| Smart & Connectivity |
| Wi‑Fi Connectivity |
Yes |
| SmartThings App Support |
Yes |
| Voice Control |
Yes, compatible with Bixby, Amazon Alexa, Google Assistant |
| Favorite Cook / Smart Recipes |
Accessible via SmartThings app |
| Cleaning & Care |
| Self Clean |
Yes |
| Steam Clean |
Yes |
| Oven Cleaning Type |
Steam & Self Clean |
| Delay Clean Option |
Yes (via self-clean scheduling) |
| Storage Drawer |
Yes |
| Drawer Type |
Storage (not warming) |
| Safety & Certifications |
| Child Safety Lock |
Yes |
| Control Lockout |
Yes |
| Hot Surface Indicator |
Yes |
| Sabbath Mode |
Yes |
| Star‑K Certification |
Yes |
| ADA Compliant |
No |
| Anti‑Tip Bracket Included |
Yes |
| Included Accessories |
| Air Fry Tray |
Included |

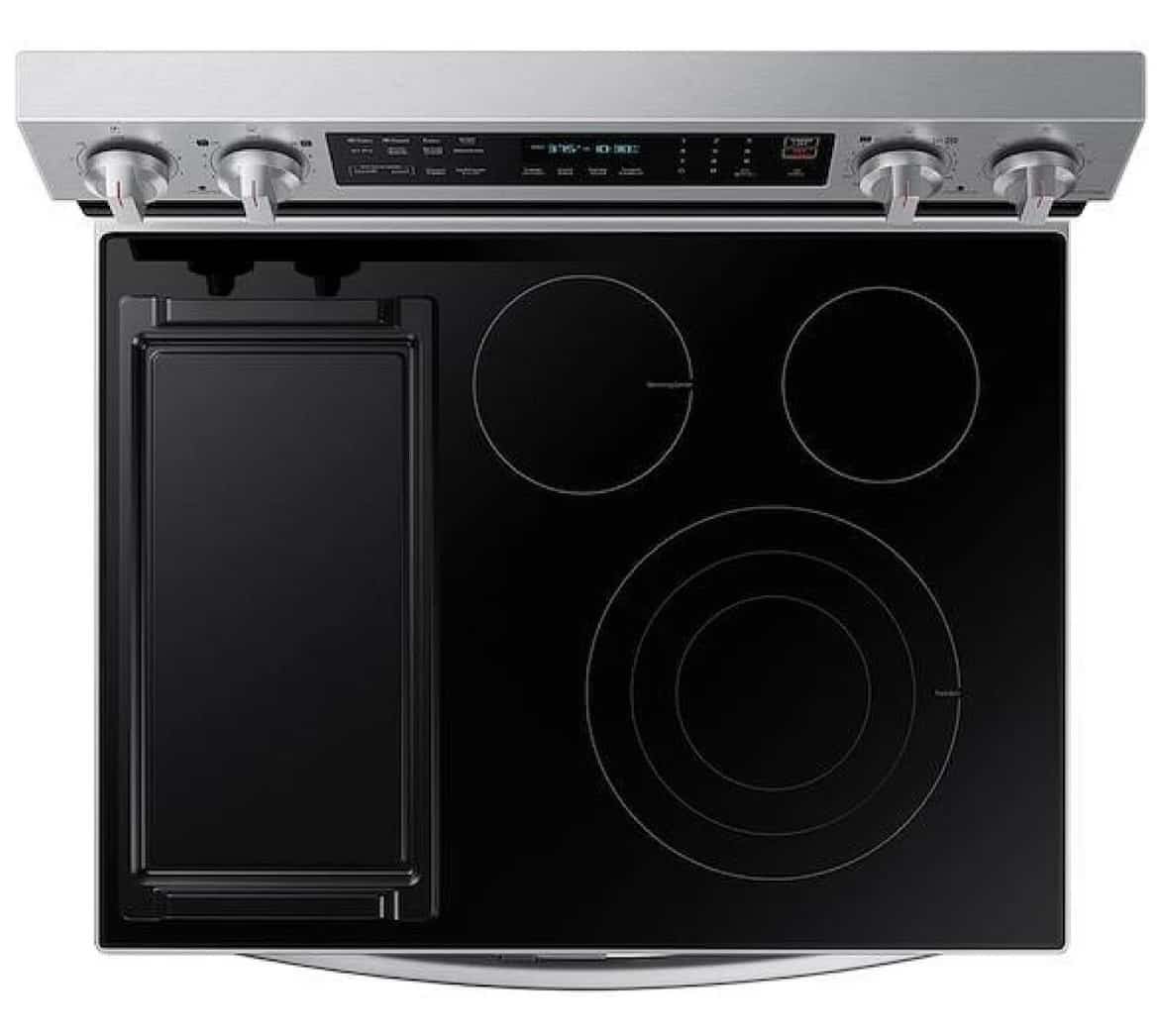

| Removable Nonstick Griddle |
Included (aluminum griddle) |
| Flex Duo Divider |
Included |
| Anti‑Tip Device |
Included |
| Racks |
2 wire racks |
