Description

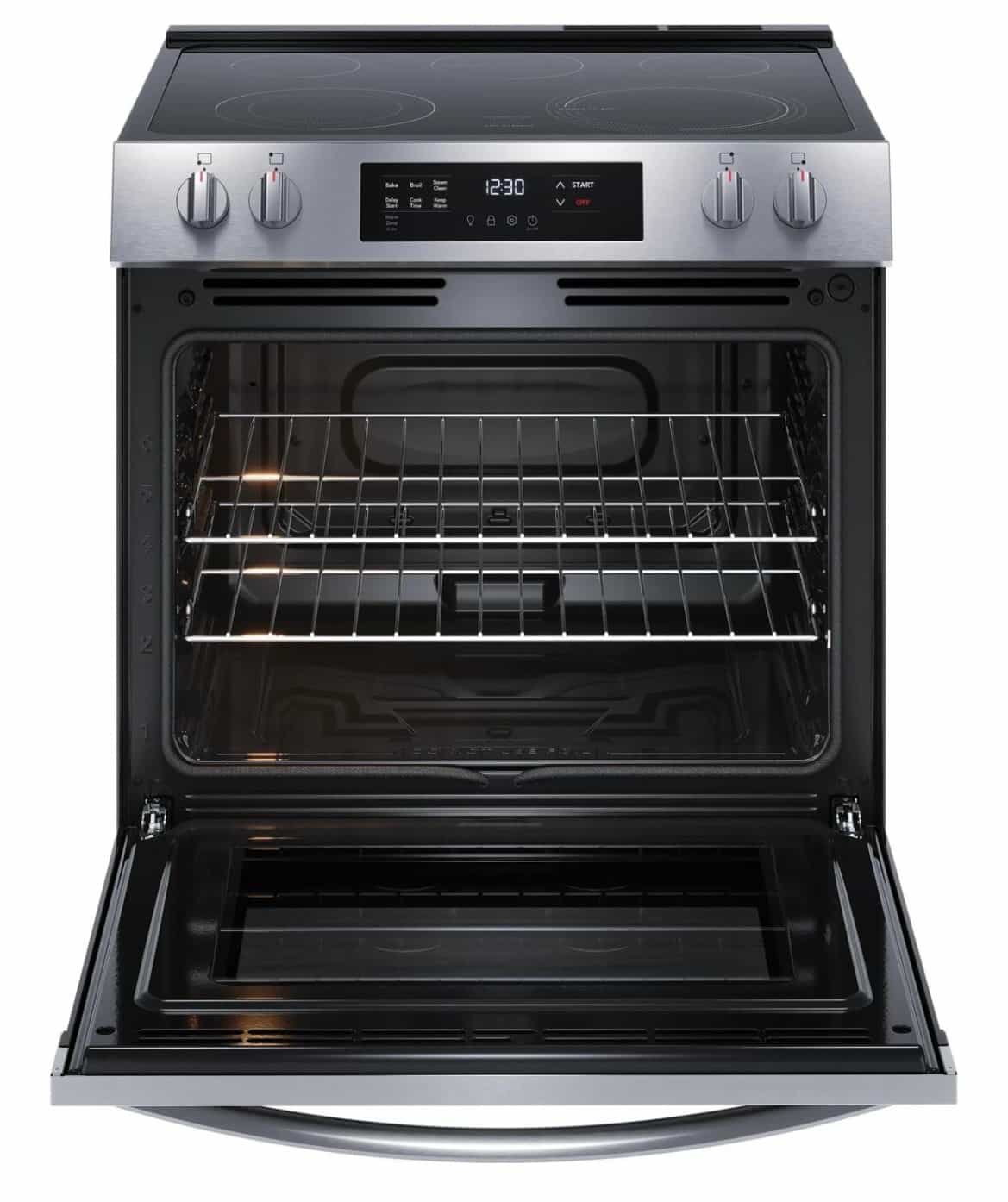

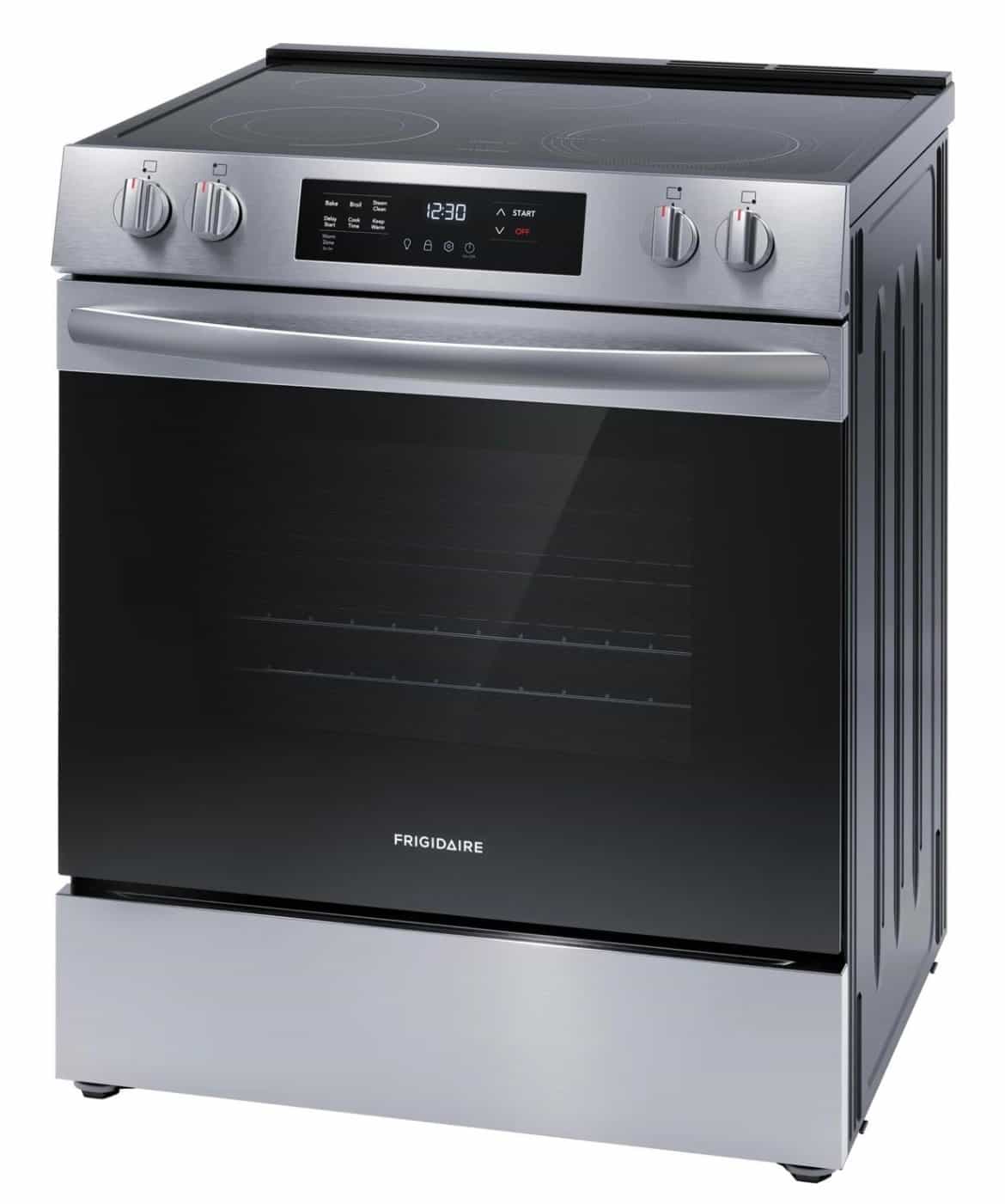

Frigidaire Range Slide In 5.3 cu ft 30″ Width FCFE306CAS
| Specification | Value |
|---|---|
| Capacity | 5.3 Cu Ft |
| Width | 30 inches |
| Height | 36.4 inches |
| Depth | 26 inches |
| Depth with Door Open 90° | 47.31 inches |
| Height (minimum) | 35.37 inches |
| Height (maximum) | 36.38 inches |
| Width (cm) | 76.2 cm |
| Height (cm) | 92.41 cm |
| Depth (cm) | 66.04 cm |
| Product Weight | 150 lbs (approx. 68 kg) |
| Fuel Type | Electric |
| Range Type | Slide-In / Freestanding style electric range |
| Colour / Finish | Stainless Steel |

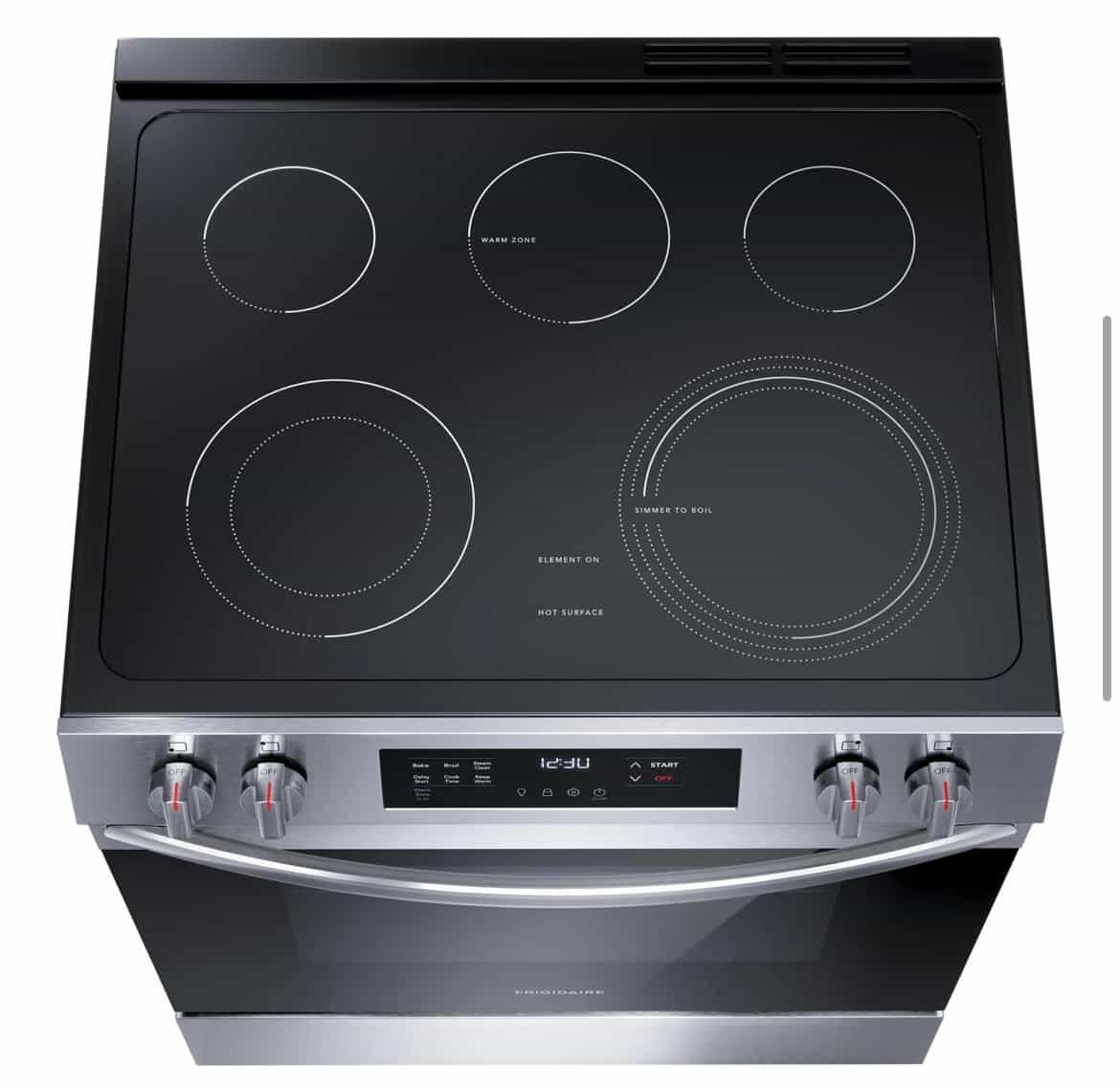

| Cooktop Surface Type | Smoothtop glass / radiant |
| Number of Elements / Burners | 5 |
| Right Front Element Size / Power | 9 in, 3200 W (EvenTemp™) |
| Right Rear Element Size / Power | 6 in, 1200 W |
| Left Front Element Size / Power (small) | 6 in, 1400 W |
| Left Front Element Size / Power (large) | 9 in, 3000 W (SpaceWise® Dual Expandable) |
| Left Rear Element Size / Power | 6 in, 1200 W |
| Center Rear Element (Warming Zone) | 100 W |
| Cooktop Features | EvenTemp™ cooktop, SpaceWise® Dual Expandable Element, Warming Zone, Hot Surface Indicator, Element On Indicator, Control Lockout |
| Oven Capacity | 5.3 Cu Ft |
| Number of Ovens | Single |
| Oven Programs | Bake, Broil, Keep Warm, Delayed Bake |
| Bake Element Power | 2500 W, 8-pass, hidden bake element |
| Broil Element Power | 3000 W, 4-pass |
| Oven Interior Height | 18 1/8 inches |
| Oven Interior Width | 25 3/16 inches |
| Oven Interior Depth | 19 7/8 inches |
| Number of Racks | 2 |
| Total Rack Positions | 6 |
| Oven Light | Halogen |
| Oven Cleaning Method | Steam Clean (30-minute) and Self-Clean (3-hour cycle, where listed) |
| Drawer Type | Storage drawer (Store-More™ style) |
| Control Type (Cooktop) | Knobs |
| Control Type (Oven) | Electronic touchpad with digital temperature display |
| Display Type | Membrane-style electronic display |
| Clock / Timer | Yes |
| Delay Start / Delay Bake | Yes |
| Control Lock / Lockout | Yes |
| Temperature Units | Programmable in °F or °C |
| Sabbath Mode | No |
| Wi-Fi Connectivity | No |
| Voltage | 240 V |
| Amperage | 40 A |
| Total Cooktop Wattage (approx.) | Up to 13,000 W combined |
| ADA Compliant | Yes (in some listings); treated as ADA compliant where installed per guidelines |
| Installation Type | Slide-in style electric range designed for 30-inch cutout |
| Appliance Fit Width | 30 inches |
| UPC | 012505514302 |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
