Description

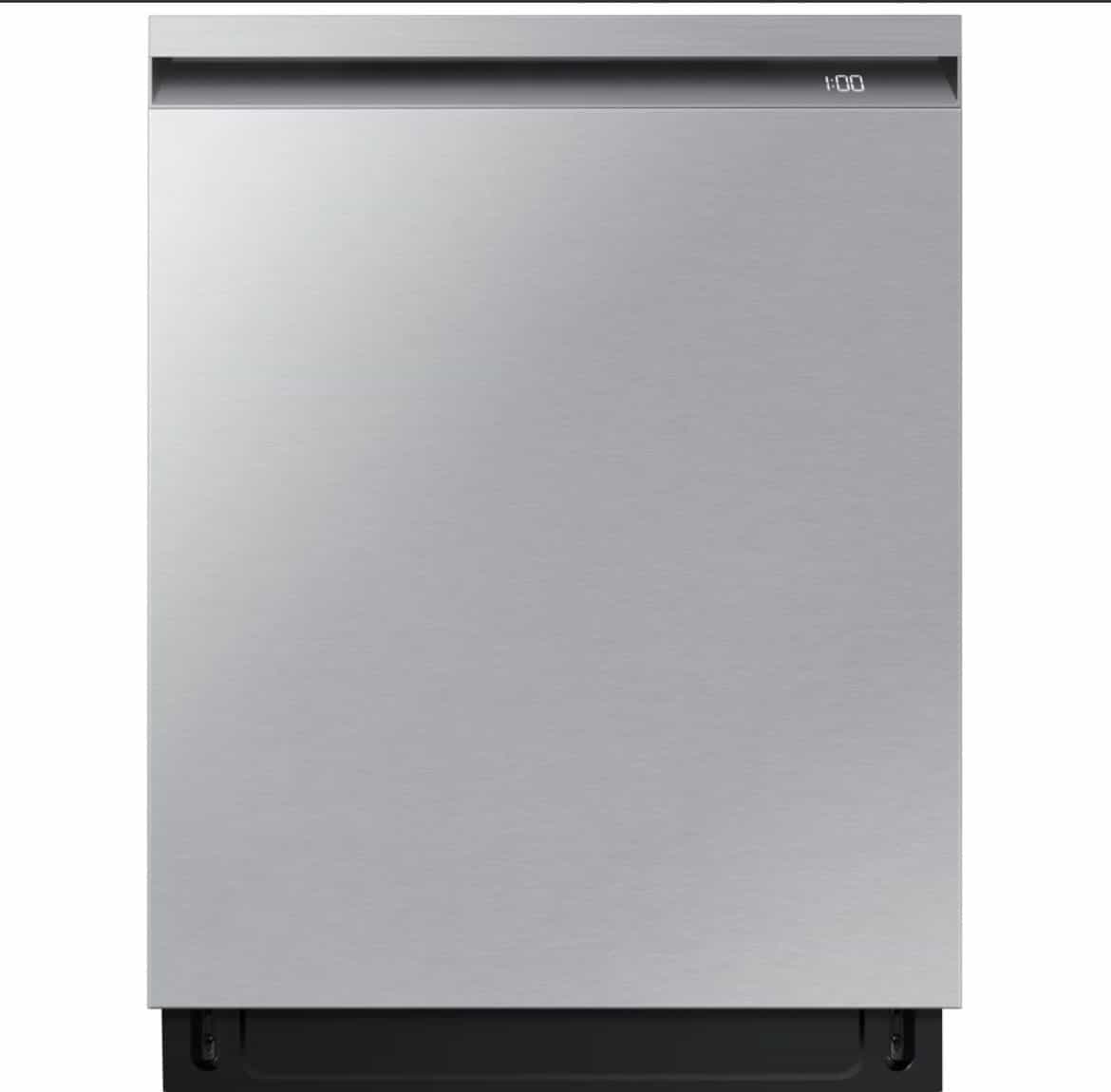

Samsung Bespoke Dishwashers 24″ Width 42 dB 3 Loading Racks Stainless Steel DW80B7070US
New Open Box
| Specification | Value |
|---|---|
| Capacity (Place Settings) | 15 place settings |
| Width | 23 7/8 inches |
| Width (decimal) | 23.875 inches |
| Product Height | 33 7/8 inches |
| Product Height (decimal) | 33.9 inches |
| Product Height with Legs Extended (Max Height) | 35 inches |
| Height (Range for Installation) | 33.875 – 35 inches |
| Depth (cabinet / excluding door curvature) | 23 7/8 inches |
| Product Depth (overall) | 24.8 inches |
| Depth (decimal) | 25 inches |
| Actual Depth Excluding Handle | 25 inches |
| Actual Depth Including Handle | 25 inches |
| Actual Depth with Door Open | 55 inches |
| Actual Width | 23.875 inches |
| Cutout Width (Min) | 24 inches |
| Cutout Depth (Min) | 24 inches |
| Cutout Height (Min) | 34.1 inches |
| Cutout Height (Max) | 35.3 inches |
| Product Weight | 91.5 lbs |
| Shipping Weight | 98 lbs |
| Shipping Dimensions (W x H x D) | 26″ W x 35″ H x 29.5″ D |
| Install Type | Built-under / Built-in |
| Size Class | 24″ T |
| Appliance Type | Built-in dishwasher |
| Color / Finish | Fingerprint Resistant Stainless Steel (STS) |
| Handle Type | Pocket / Recessed handle |
| Door Panel Type | Solid |
| Control Type | Hidden touch (top control, fully integrated) |
| Display Position | Front |
| Display Color | White |
| Front Cycle Progress Indicator | Yes |
| Tub Material | STSS (stainless steel) |
| Rack Coating Material | Nylon |
| Number of Place Settings | 15 |

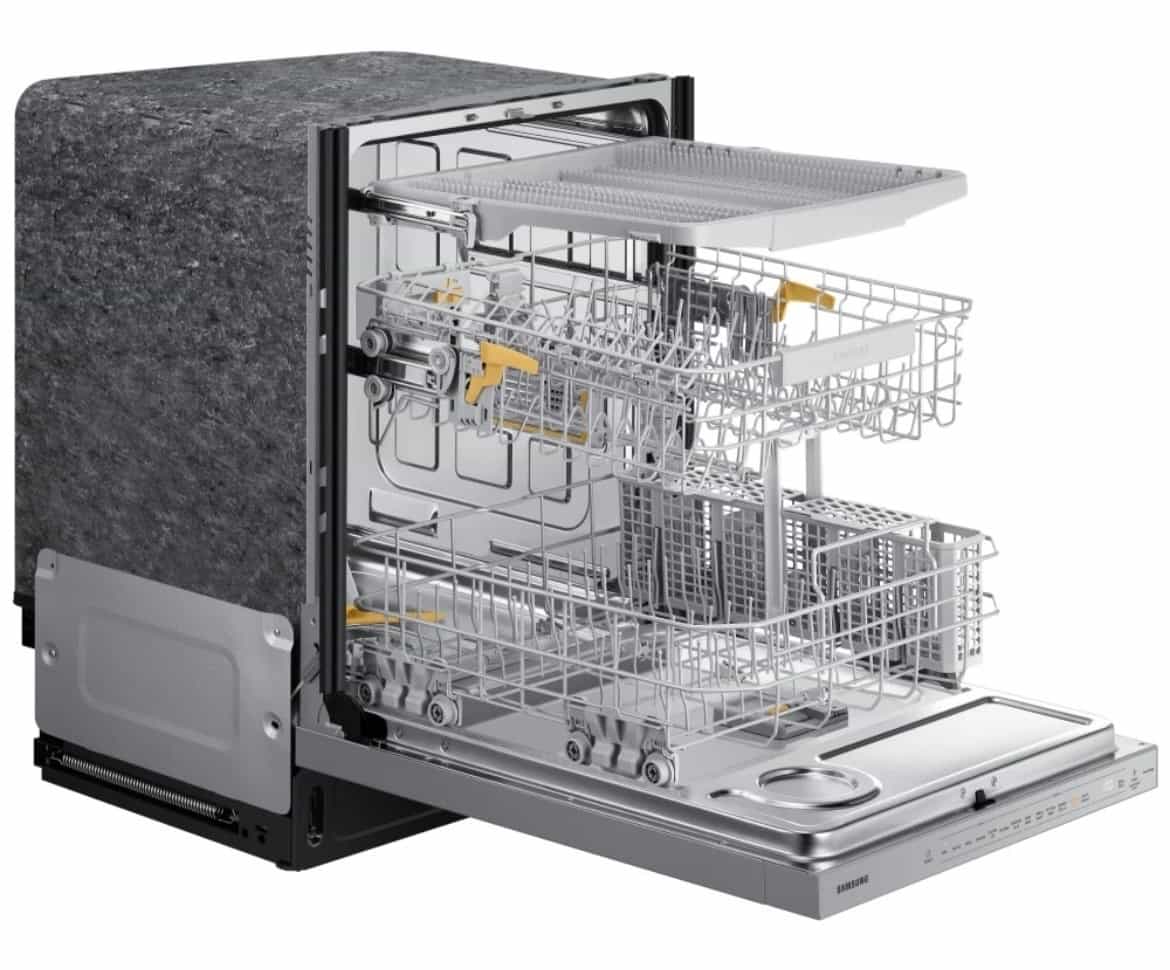

| Third Rack | Yes (cutlery tray / 3rd rack) |
| Cutlery Basket | Yes (2-piece silverware basket) |
| Upper Rack Adjustable Height | Yes (one-touch) |
| Upper Rack Basket Handle | Plastic |
| Upper Rack Adjustable Tines | 1 row adjustable |
| Upper Rack Cup Shelf | Foldable (plastic) |
| Upper Rack Soft Rail (Glide Rail) | Yes |
| Lower Rack Basket Handle | Yes |
| Lower Rack Maximum Vertical Loading Dimension | 13 1/2 inches |
| Lower Rack Adjustable Tines | Yes |
| Lower Rack Removable Tines | Yes |
| Lower Rack Fold Down Tines | Yes |
| Lower Rack 2-Piece Silverware Basket | Yes |
| 1/2-Rack Wash Option | Yes (Half Load) |

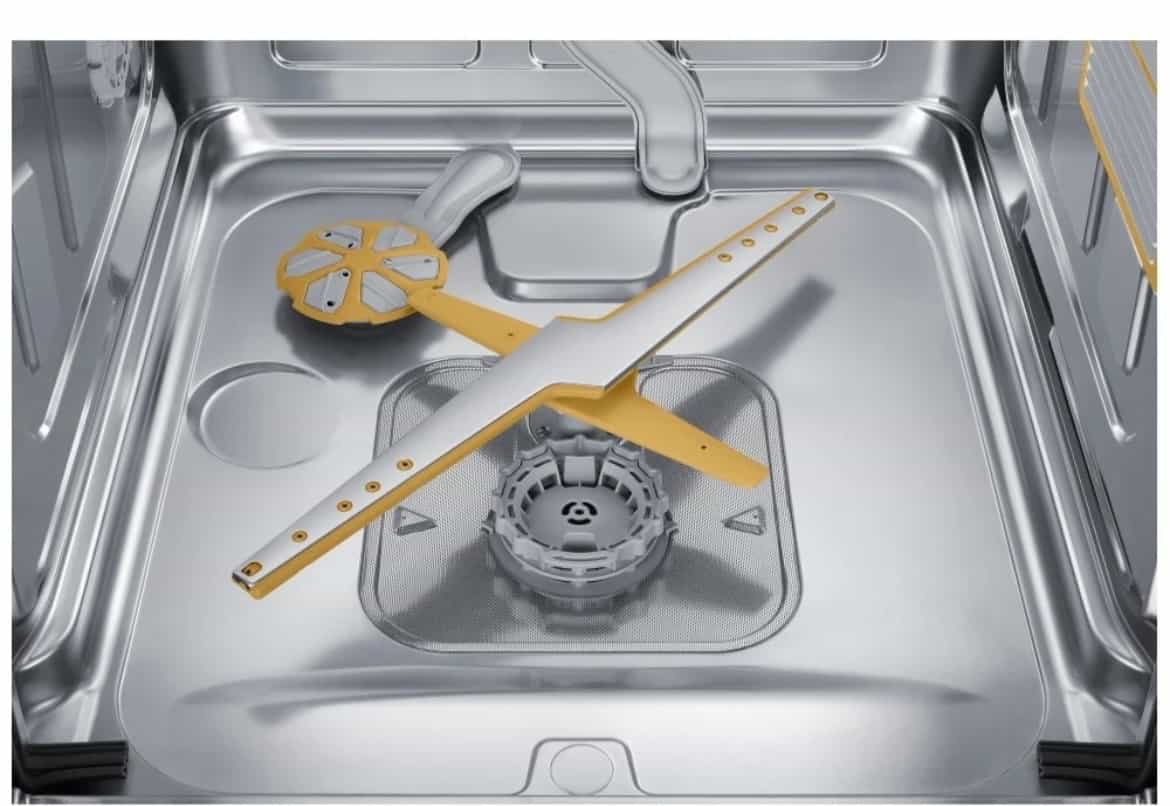

| Number of Wash Arms | 3 (Upper / Mid / Low) |
| Wash System | StormWash+™ (dual wash arms + rotating spray jet) |
| Washing Type | StormWash+™ |
| Number of Programs (Cycles) | 7 |
| Wash Cycles | Auto, Normal, Heavy, Delicate, Express 60, Pre Blast, Download Cycle |
| Number of Options | 8 |
| Options (examples) | StormWash+, Hi-Temp Wash, Sanitize, Delay Start, Control Lock, Half Load, etc. |
| Dry System | Smart Dry with AutoRelease™ Door |
| Smart AutoRelease™ Door Drying | Yes |
| Ventilation Drying System | Fan-assisted |
| Noise Level | 42 dBA |
| Silence Rating | 42 dBA (Whisper Quiet / Nearly Silent) |
| Energy Star Certification | Yes (ENERGY STAR® Certified) |
| ENERGY STAR® Most Efficient | Yes |
| Annual Energy Usage | 239 kWh/year |
| Water Consumption per Cycle | 3.2 gallons per cycle |
| Cycle Time (Normal, min) | Approx. 111–128 minutes |
| Electrical Requirements | 120 V / 60 Hz / 15 A |
| Heater Watts | 1100 W |
| Circulation Motor Watts | 60–100 W |
| Drain Pump | Yes |
| Drain Pump Watts | 35 W |
| Digital Leak Sensor | Yes |
| Self-Cleaning Filter System | Yes |
| Kickplate Color | Black |
| Fingerprint Resistant | Yes |
| Wi-Fi Connectivity | Yes (SmartThings app compatible) |
| Smart Features | Remote start/stop/delay, Smart Reorder, SmartThings Energy / AI Energy mode (where available) |
| App Compatibility | Yes (SmartThings) |
| Alexa Compatibility | Yes (via SmartThings) |
| Control Lock (Child Lock) | Yes |
| Delay Start | Yes (1–24 hours) |
| High Temperature Wash (Hi-Temp) | Yes |
| Sanitize / NSF Certified Rinse | Yes (NSF sanitize option) |
| Heavy Duty Cycle | Yes (Heavy) |
| Express 60 Cycle | Yes (1-hour wash & dry for lighter loads) |
| Pre Blast | Yes (pre-rinse at start of any cycle) |
| Half Load Option | Yes |
| Leak Protection | Yes (Digital Leak Sensor) |
| Rinse Aid Dispenser | Yes |
| Rinse Refill Indicator | Yes |
| Cancel & Drain Button | Yes |
| Start & Pause Button | Yes |
| LED Time Display | Yes (remaining time indicator) |
| Whisper Quiet | Yes (42 dBA) |
| Optimal Cycle Detection | Yes (sensor wash) |
| ADA Compliant | No (per manufacturer; some retailers list ADA but manufacturer spec takes precedence) |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
