Description

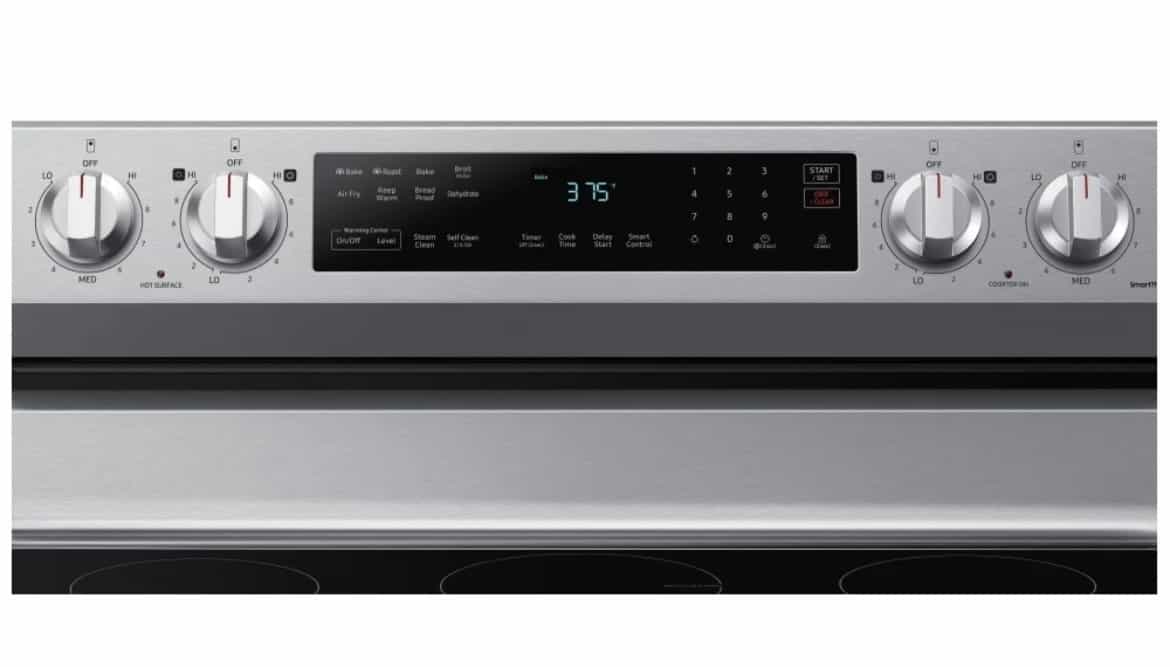

Samsung Electric Range 6.3 cu ft 30 Width Convection, Self Clean, Stainless Steel NE63A6511SS
New Open Box
| Specification | Details |
|---|---|
| Capacity | 6.3 cu. ft |
| Drawer Capacity | 0.8 cu. ft |
| Range Type | Freestanding electric range |
| Fuel Type | Electric |
| Cavity Type | Single oven |
| Color / Finish | Fingerprint Resistant Stainless Steel |
| Model Number | NE63A6511SS (NE63A6511SS/AA – US, NE63A6511SS/AC – Canada) |
| Width | 29 15/16 inches (approx. 29.94″) |
| Height | 46 5/16 – 47 1/16 inches (adjustable) |
| Depth (cabinet to front of door, incl. handle) | 28 11/16 inches (approx. 28.69″) |
| Depth (without handle) | 26 7/16 inches (approx. 26.44″) |
| Depth with door open 90° | 49 1/4 inches (approx.) |
| Oven Interior Dimensions (W x H x D) | 24 13/16″ W x 22 7/16″ H x 19 3/4″ D |
| Shipping Dimensions (W x H x D) | 33 1/16″ W x 50 9/16″ H x 30 5/16″ D |
| Product Weight | 148 lb (67.3 kg) |
| Shipping Weight | 172 lb (78 kg) |
| Oven Capacity Type | Fan convection electric oven |
| Cooking System | Convection (Convection Bake & Convection Roast) |
| Air Fry | Yes (No-Preheat Air Fry) |
| Self Clean | Yes (High-heat Self Clean) |
| Steam Clean | Yes |
| Wi-Fi Connectivity | Yes (Wi-Fi embedded) |
| SmartThings App Support | Yes |
| Voice Control Compatibility | Bixby, Amazon Alexa, Google Assistant (via SmartThings) |
| Number of Cooktop Elements | 5 radiant elements |
| Cooktop Type | Electric radiant smoothtop (glass ceramic) |
| Left Front Element | 6″/9″ dual element, 1400 / 3300 W Rapid Boil |
| Left Rear Element | 6″ element, 1200 W |
| Right Front Element | 9″/12″ dual element, 1900 / 3000 W |
| Right Rear Element | 6″ element, 1200 W |
| Center Element | Warming Center, 100 W |
| Hot Surface Indicator Light | Yes |
| Cooktop Controls | Stainless knobs |
| Oven Controls | Touch controls |
| Display Type / Color | LED display, Ice Blue |
| Drawer Type | Storage drawer |
| Oven Bake Element Power | 3000 W (hidden bake element) |
| Oven Broil Element Power | 4200 W (top broil) |
| Bake Temperature Range | 175°F – 550°F (80°C – 285°C) |
| Convection Bake Temperature Range | 175°F – 550°F (80°C – 285°C) |
| Convection Roast Temperature Range | 175°F – 550°F (80°C – 285°C) |
| Oven Cooking Modes | Bake, Convection Bake, Convection Roast, Air Fry, Variable Broil (Low–High), Keep Warm, Proof, Dehydrate |
| Total Number of Racks | 2 |
| Rack Type | 2 wire racks |
| Number of Rack Positions | 7 |
| Interior Oven Light | 1 x 40 W incandescent (rear) |
| Wide View Oven Window | Yes |
| Door Type | Single door, 2-layer stainless steel with glass |
| Soft-Close Door | No |
| Kitchen Timer | Yes |
| Clock | Yes |
| Delay Start | Yes |
| Child Safety Lock | Yes |
| Sound On/Off | Yes |
| Sabbath Mode | Yes (Star-K certified) |
| Favorite Cook | Yes (via SmartThings app) |
| Bread Proof | Yes |
| Keep Warm Function | Yes |
| Dehydrate Function | Yes |
| Hidden Bake Element | Yes |
| Anti-Tip Bracket Included | Yes |
| Electrical Requirements | 240/208 V, 60 Hz, 40 A |
| Power Cord / Connection | 120/240 V or 120/208 V, 3‑wire; 40 A range cord recommended; 4‑prong connection, approx. 39.4″ cord length (where supplied) |
| Installation Type | Freestanding, 30″ class width |
| Certifications | Star-K Sabbath compliant |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
