Description

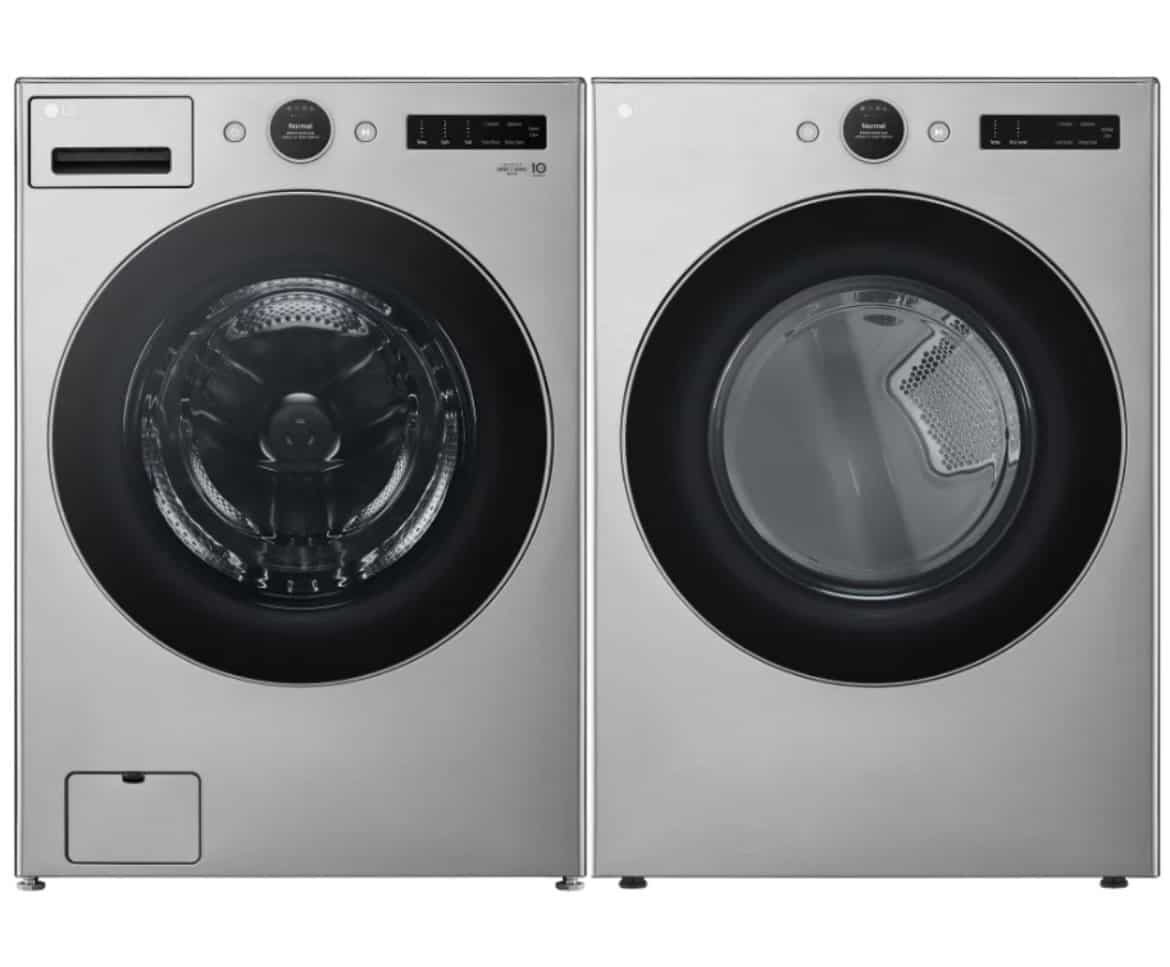

LG Washer and Dryer Set Front Load Stackable 27″ Width . Washer 5.2 cu ft Dryer 7.4 cu ft WM5500HVA/DLEX5500V
New Open Box
Specifications

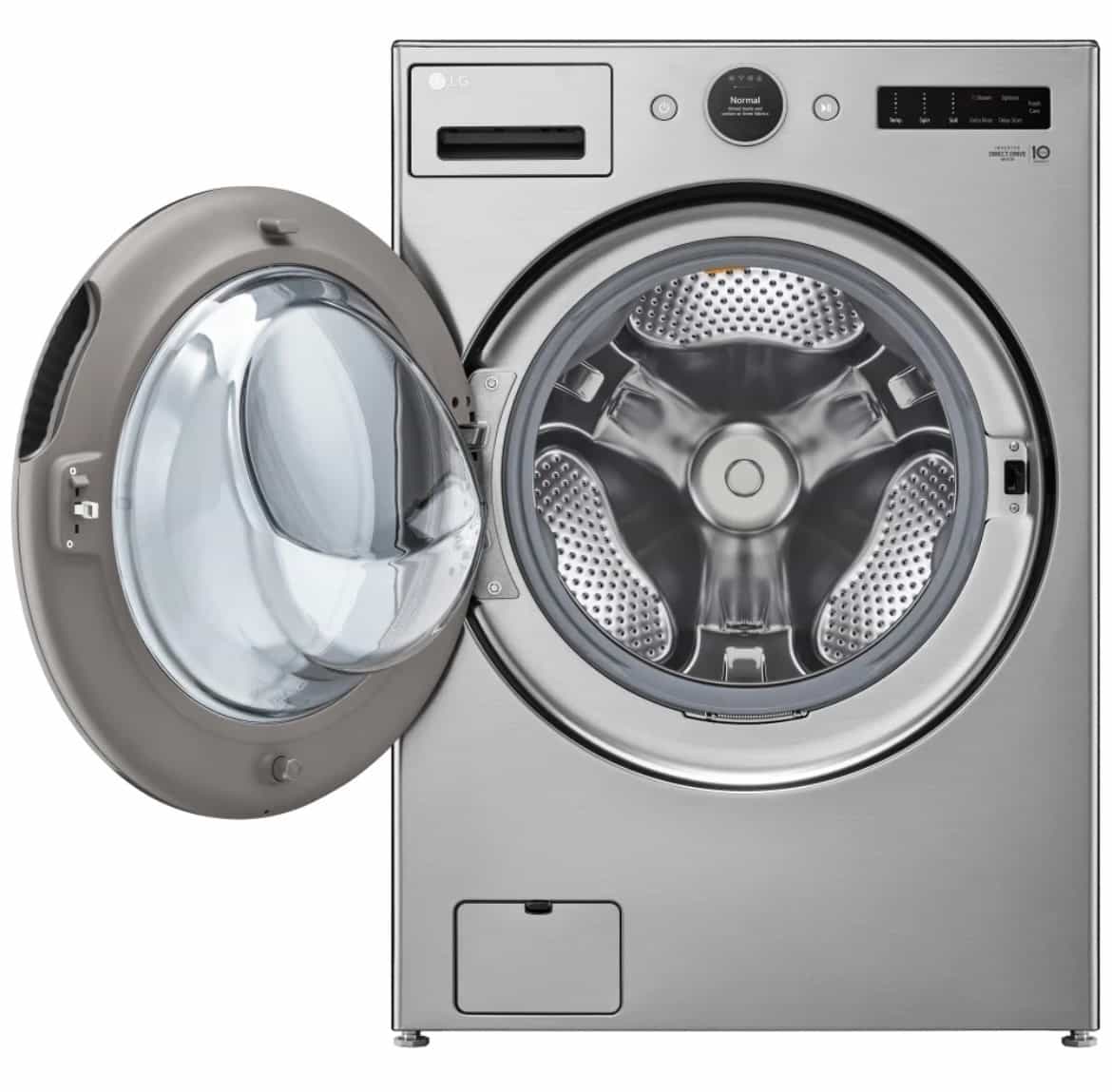

WASHER WM5500HVA
| Specification | Value |
|---|---|
| Capacity | 5.2 cu. ft. (IEC, Canada) / 4.5 cu. ft. (DOE, USA) |
| Product Type | Front Load Washer |
| Configuration | Stackable |
| Color / Finish | Graphite Steel |
| Series | LG Front Load |
| Energy Certification | ENERGY STAR Certified; ENERGY STAR Most Efficient (USA) |
| AAFA Certified | Yes |
| Width | 27 inches |
| Height | 39 inches |
| Depth | 30 1/4 inches (30.25 in) |
| Depth with Door Open | 55 inches |
| Carton Dimensions (WxHxD) | 29 1/2″ x 42 1/8″ x 31 1/2″ |
| Product Weight | Approx. 200.8 lbs |
| Shipping Weight | Approx. 214.4 lbs |
| Drum Material | Stainless Steel (NeveRust® Drum) |
| Axis | Horizontal |
| Motor Type | Inverter Direct Drive Motor |
| Maximum Spin Speed | Up to 1300 RPM |
| TrueBalance® Anti-Vibration System | Yes |
| Cabinet Vibration Sensor | Yes |
| Leveling Legs | 4 Adjustable Legs |
| Door Type | Tinted, tempered glass door |
| Interior Drum Light | Yes |
| Control Type | Digital Dial Control with LCD Display and Touch Button Panel |
| Location of Controls | Front Console |
| End of Cycle Signal | Yes |
| Control Lock | Yes |
| LoadSense | Yes (Load Sensing Water Levels) |
| Auto Suds Removal | Yes |

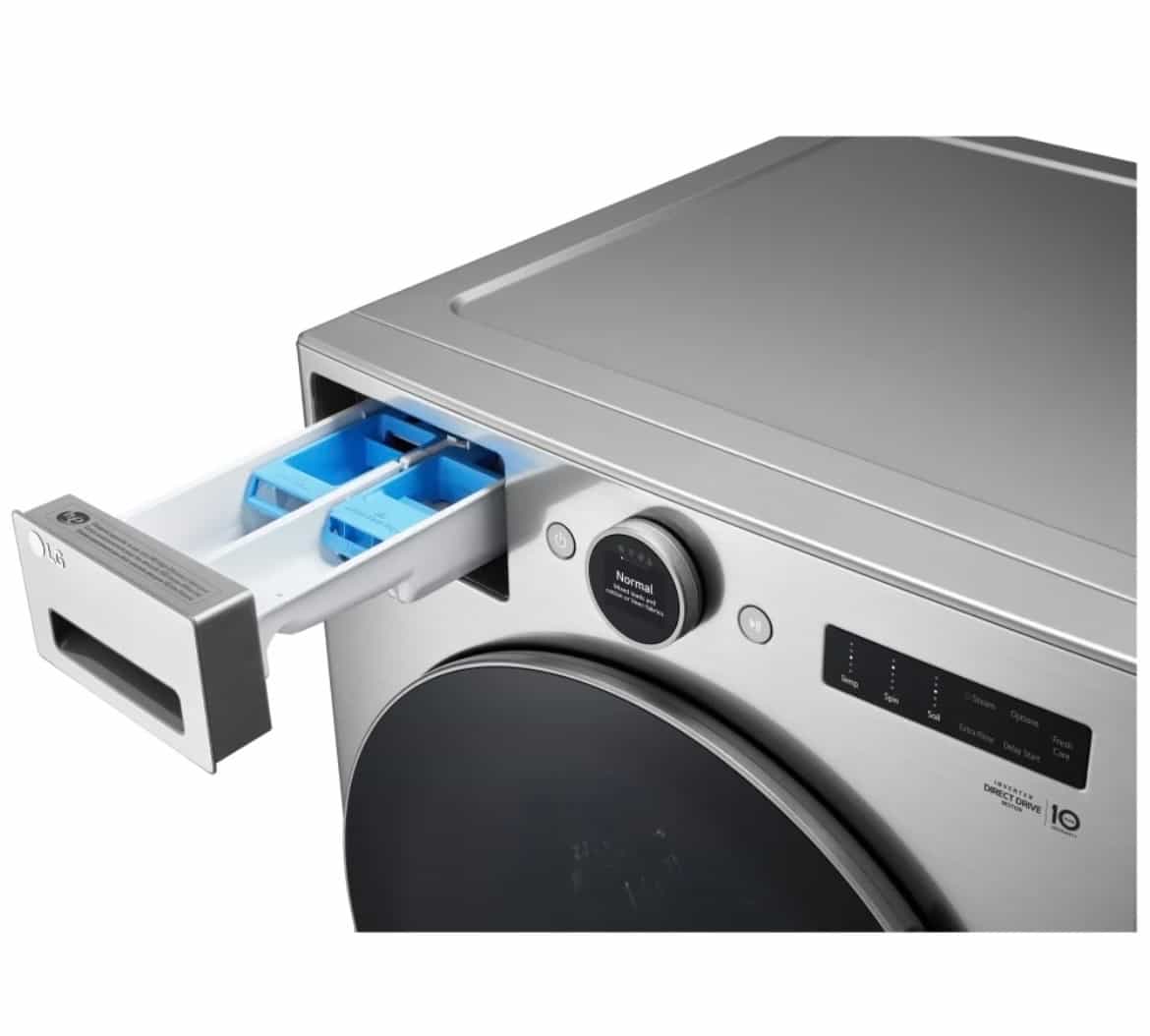

| Detergent / Dispenser System | 4-tray dispenser: Prewash, Main Wash (with liquid detergent cup or ezDispense cartridge), Bleach, Fabric Softener |
| ezDispense® | Yes, automatic detergent and softener dispensing |
| Washer Programs (Number) | 25 Wash Cycles |
| Washer Programs (List) | Allergiene®, Rinse+Spin, Perm. Press, Bright Whites™, Active Wear, AI Wash, Bedding, Color Care, Delicates, Dresses, Hand/Wool, Heavy Duty, Jeans, Kids Wear, Large Load, Normal, Quick Wash, Sanitary, Small Load, Spin Only, Sweat Stains, Swimwear, Towels, Tub Clean, X Large Load |
| Washer Options (Number) | 15 Options |
| Washer Options (List) | Cycle Customization, Cycle List Edit, Drum Light, Signal, Control Lock, TurboWash®, Add Item, Cold Wash, Delay Wash, Extra Rinse, Fresh Care, Pre-wash, Remote Start, Steam, Wi-Fi |
| Number of Wash/Rinse Temperatures | 5 |
| Temperature Selections | Extra Hot, Hot, Warm, Cold, Tap Cold |
| Number of Spin Speeds | 5 |
| Spin Speed Options | Extra High, High, Medium, Low, No Spin |
| Number of Soil Levels | 5 |
| Water Levels | Automatic, Load Sensing |
| TurboWash® | Yes, TurboWash® 360° |
| AI DD® (Artificial Intelligence Direct Drive) | Yes, fabric and weight sensing with Smart Pairing |
| Allergiene® Cycle | Yes (AAFA Certified) |
| Sanitary Cycle | Yes |
| Steam Technology | Yes (Steam, Allergiene®, Sanitary) |
| ColdWash™ Option | Yes |
| Fresh Care Option | Yes |
| TurboWash® 360° Clean Time | Power clean big loads in under 30 minutes (approx. 10 lb load) |
| Smart Connectivity | LG ThinQ® Wi-Fi Enabled |
| Remote Start & Monitoring | Yes, via ThinQ® app |
| Smart Pairing | Yes, washer can communicate optimal cycle to compatible LG dryer |
| Voice Control Compatibility | Works with select voice assistants via ThinQ® (where available) |
| Power Source | Electric |
| Electrical Requirements | 120V / 60Hz |
| CEE Tier | Tier 2 |
| IMEF | 2.92 |
| IWF | 3.0 |
| Stacking | Stackable with matching LG dryer |
| Compatible Electric Dryer | DLEX5500V (matching graphite steel) |
| Compatible Gas Dryer | DLGX5501V (matching graphite steel) |
| Pedestal Compatibility | Compatible with LG pedestal and LG SideKick® pedestal washer |
| Standard Pedestal Dimensions (WxHxD) | 27″ x 13 5/8″ x 28″ (approx. 43 7/8″ D with door open) |
| SideKick® Pedestal Washer Dimensions (WxHxD) | 27″ x 14 1/8″ x 30 3/4″ (approx. 50 1/2″ D with drawer open) |
| Door Swing | Left swing (reversible with compatible kit on some installations, check local listing) |
| Cycle Status Display | Remaining time, status indicators on LCD |
| Signal (End of Cycle / Alerts) | Yes, adjustable |
| Add Item Function | Yes (pause and add items where cycle allows) |
| Delay Wash | Yes |
| Extra Rinse | Yes |
| Drum Light Option | Yes (selectable) |
| Cycle Customization | Yes (via controls and ThinQ® app) |
| Cycle List Edit / Optimization | Yes |
| Tub Clean Cycle | Yes |
| Normal / Cotton Cycle | Yes |
| Heavy Duty Cycle | Yes |
| Quick Wash Cycle | Yes |
| Delicates / Hand Wash / Wool Cycles | Yes (Delicates; Hand/Wool) |
| Bedding / Towels Cycles | Yes (Bedding; Towels) |
| Active Wear / Sportswear Cycles | Yes (Active Wear; Sweat Stains; Swimwear) |
| Color Care / Bright Whites™ Cycles | Yes (Color Care; Bright Whites™) |
| Kids Wear / Jeans / Dresses Cycles | Yes (Kids Wear; Jeans; Dresses) |
| Small / Large / X Large Load Cycles | Yes (Small Load; Large Load; X Large Load) |
| Rinse+Spin / Spin Only | Yes |

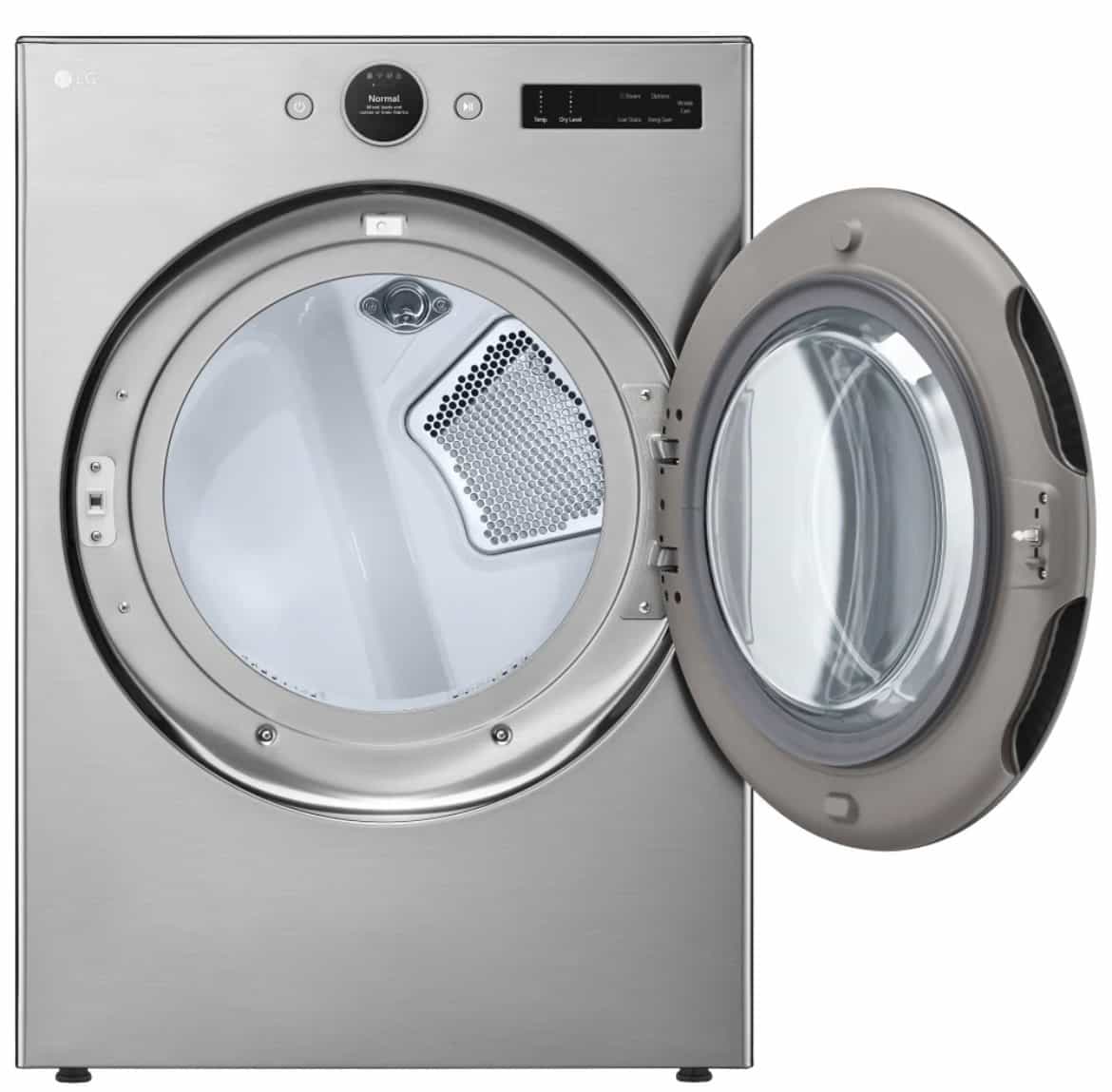

DRYER DLEX5500V
-
Specification Value Model DLEX5500V Product Type Front Load Electric Dryer Venting Type Vented Capacity 7.4 cu ft Capacity (Metric) 0.21 cu m Width 27 inches Height 39 inches Depth 29 3/4 inches Depth (Decimal) 29.75 inches Depth with Door Open 51 3/8 inches Carton Width 28 7/8 inches Carton Height 43 1/8 inches Carton Depth 31 3/8 inches Pedestal Dimensions (WxHxD) 27 inches x 13 5/8 inches x 28 inches (43 7/8 inches D with door open) Product Weight 124.3 lbs Shipping Weight 136.5 lbs Colour Graphite Steel (V) Cabinet Finish Painted Steel Door Type Tempered Glass Door Drum Material NeveRust Stainless Steel Drum Reversible Door Yes Closet-Depth Design Yes Stackable Yes (with stacking kit, compatible with WM5500HVA washer) Matching Washer WM5500HVA Pedestal Compatibility Yes (27-inch LG pedestal) Power Source Electric Electrical Requirements 120/240V, 60Hz, 26A (120/208V, 60Hz, 23A) Ratings / Certification Body CSA Listed ENERGY STAR Certified Yes CEF (Combined Energy Factor) 3.94 Steam Function Yes Steam Technologies TurboSteam, SteamFresh, SteamSanitary AI Sensor Dry Yes Sensor Dry Yes Manual Dry Yes Precise Temperature Control with Variable Heater Yes Wi-Fi Enabled Yes Smart Platform LG ThinQ Technology with ThinQ Care Remote Start & Cycle Monitoring Yes Energy Monitoring (via App) Yes Smart Diagnosis Yes (LG Smart Diagnosis) Voice Control Compatibility Yes (works with Google Assistant and Amazon Alexa) App Compatibility Yes (iOS and Android) Control Type Electronic controls with LCD display and Dial-A-Cycle Display Type LCD Display End of Cycle Signal Yes Cycle Status Indicators Yes Remaining Time Display Yes Drum Light Yes 3 Minute Installation Check Yes FlowSense Duct Clogging Indicator Yes Lint Filter Full Indicator Yes Wrinkle Care Option / Wrinkle Free Cycle Yes Control Lock Yes Venting Options 4-way venting Adjustable Legs 4 adjustable legs Number of Dry Cycles (Total) 23 Core / Common Cycles Normal, AI Dry, Bedding, Delicates, Towels, Quick Dry, Timed Dry, Power Dry, Perm Press, Heavy Duty Steam / Specialty Cycles SteamFresh, Steam Sanitary, Super Dry, Active Wear, Jeans, Blanket Refresh, Low Temp Dry, Overnight Dry, Easy Ironing, Small Load, Large Load Dry, X Large Load Dry, Air Dry Options Cycle Optimization, Damp Dry Signal, Wrinkle Care, Control Lock, Wi-Fi, Energy Saver, TurboSteam, Reduce Static, Remote Start, Drum Light Signal, Cycle Edit List Electric Dryer Type Vented Exhaust Options 4-way venting ADA Compliant No Check Lint Screen Light Yes Air Dry / Air Fluff Cycle Yes (Air Dry) Delicate Cycle Yes Dryer Rack Included No Portable No Custom Program Cycle Yes (via options and app) Control Panel Language English Bluetooth Compatibility No Works with Apple HomeKit No Works with SmartThings No Works with Sonos No Appliance Colour / Finish Description Metallic look, Graphite Steel
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
