Description

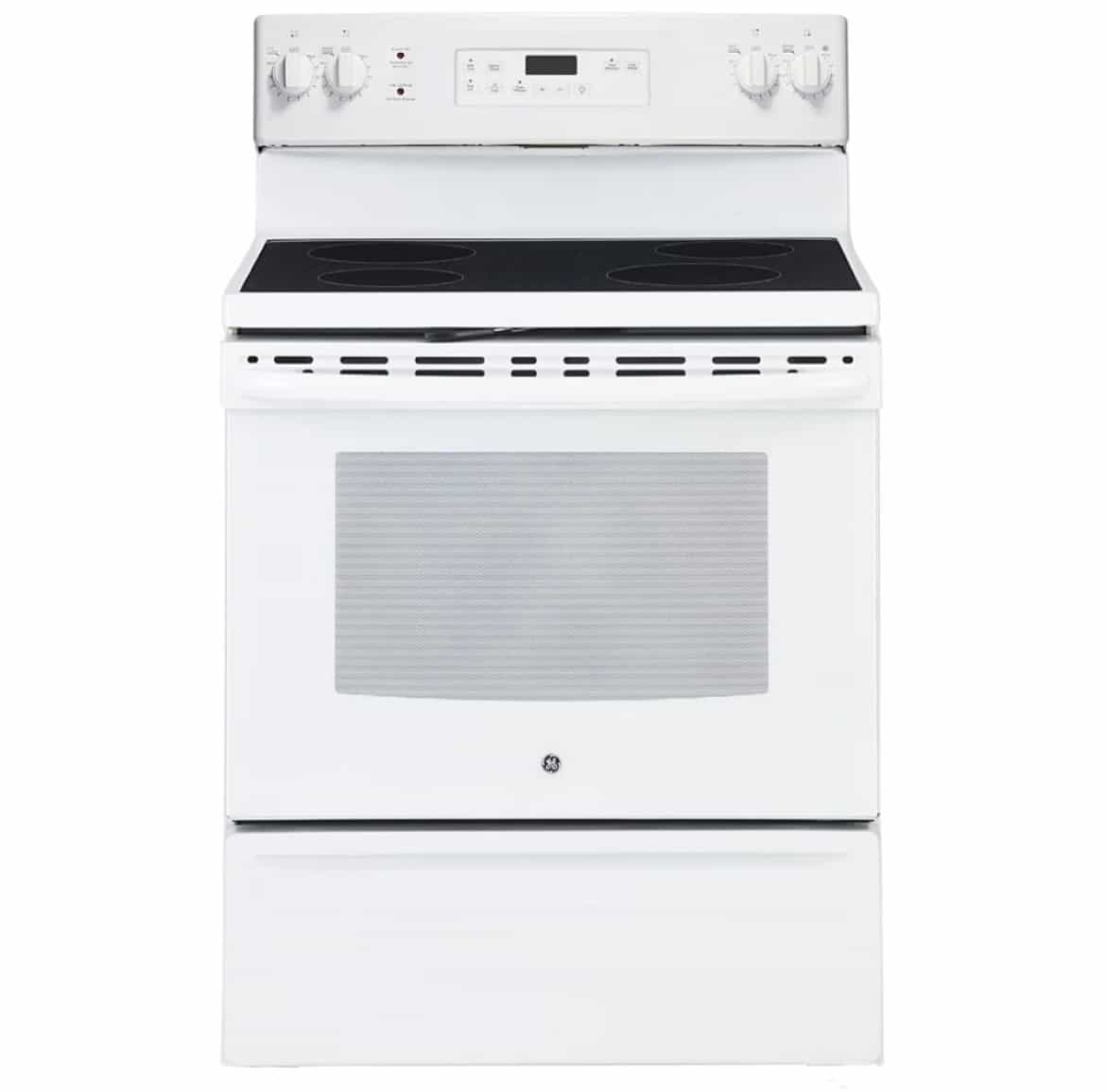

GE Electric Range 5 cu ft 30″ Width White JCB630DKWW
New Open Box
| Specification | Value |
|---|---|
| Product Type | Freestanding electric range |
| Fuel Type | Electric |
| Style | Single oven, smoothtop |
| Colour / Finish | White / White-on-White |
| Cooktop Surface | Glass-ceramic smoothtop |
| Number of Elements / Burners | 4 |
| Front Left Element | 6″ 1500 W radiant |
| Front Right Element | 8″ 2000 W radiant |
| Rear Left Element | 8″ 2000 W radiant |
| Rear Right Element | 6″ 1500 W radiant |
| Maximum Element Power | 2000 W |
| Hot Surface Indicator Light | Yes |
| Warming Zone | No |
| Lift-Up Cooktop | No |
| Oven Capacity | 5.0 cu ft |
| Total Oven Capacity | 5.0 cu ft |
| Oven Type | Self-cleaning, non-convection |
| Cleaning Type | Self-Clean |
| Bake Element Type | 4-pass |
| Broil Element Type | 4-pass |
| Bake Power | 2585 W |
| Broil Power | 3410 W |
| Oven Racks | 2 chrome racks |
| Rack Positions | 6 |
| Interior Oven Light | Yes |
| Oven Window | Big / Grand ClearView window |
| Oven Controls | Electronic, QuickSet III |
| Digital Display | Yes |
| Timer | Yes |
| Clock | Yes |
| Delay Bake / Start | Yes (listed on several retailer specs) |
| Preheat Signal | Audible preheat signal |
| Auto Shut-Off with Override | Yes |
| Automatic Self-Clean Door Lock | Yes |
| Sabbath Mode | Yes |
| Child / Safety Lock | Yes (control lock) |
| Drawer Type | Full-width storage drawer (QuickClean design) |
| Overall Width | 29.92 in (approx. 30 in class) |
| Class Width | 30 in |
| Overall Height | 47.24–47.75 in (backsplash top) |
| Height to Cooktop | 35.75–36.5 in (adjustable) |
| Overall Depth (including handle) | 28.74 in (some retailers list 27.75–28 in) |
| Depth (without handle) | 25.5 in |
| Depth (door open) | 47.875 in |
| Approx. Product Weight | ~158–176 lb (varies by listing) |
| Interior Oven Dimensions (W x H x D) | 23-15/16″ x 18-11/16″ x 18-5/8″ |
| Electrical Requirements | 208–240 V / 60 Hz / 40 A |
| Connected Load @ 240 V | ~10.5 kW |
| Connected Load @ 208 V | ~7.9 kW |
| Estimated Annual Energy Use | ~495–563 kWh/year (EnerGuide) |
| Wi-Fi / Smart Connectivity | No |
| Chef Connect | No |
| Air Fry | No |
| Convection | No |
| Induction | No |
| Downdraft Ventilation | No |
| Warming Drawer | No (storage drawer only) |
| Power Outlet on Range | No |
| Installation Type | Free-standing |
| ADA Compliant | No |
| Commercial Use Approved | No |
WARRANTY
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
