Description

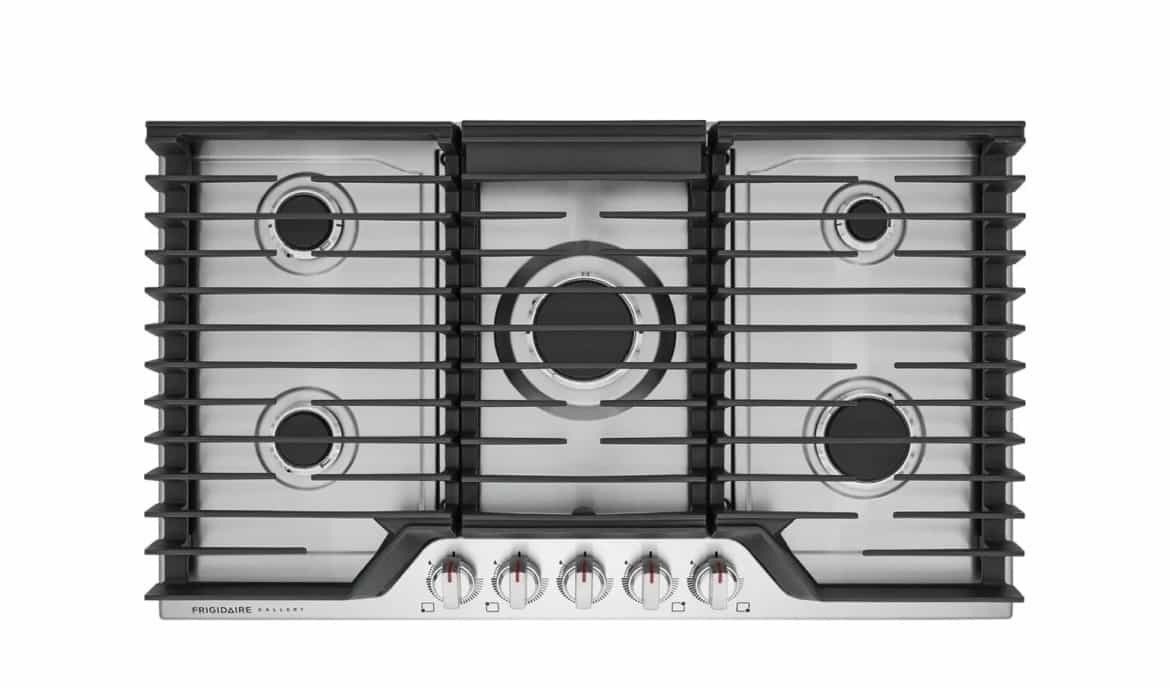

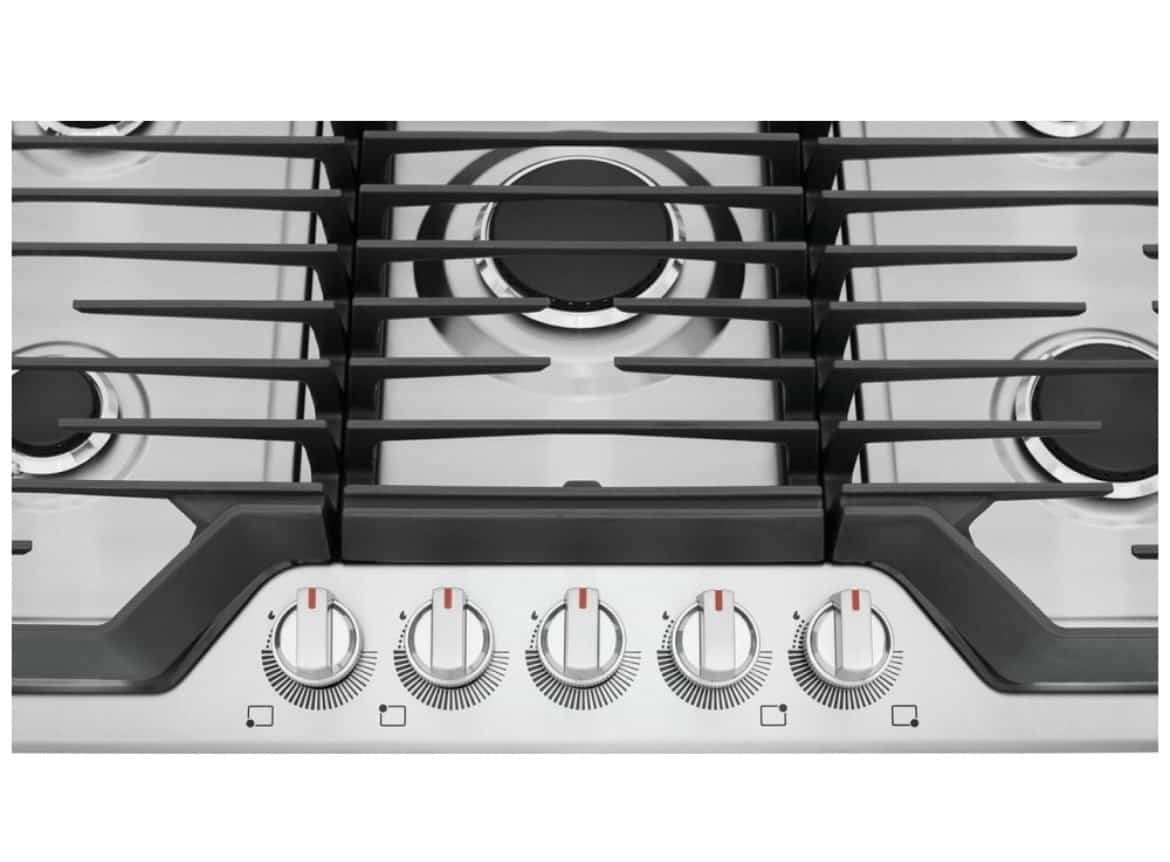

Frigidaire Gallery Gas Cooktop 36″ Width 5 Burners GCCG3648AS
| Product Line | Gas Cooktop |
| Power Type | NG |
| Size | 36″ |
| Installation Type | Built-In |
| Factory | Rayong |
| Color | Stainless Steel |
| Cooktop | |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Cooktop Performance | |
| Right Front Element Burner | 12000 BTU |
| Right Rear Element Burner | 5000 BTU |
| Left Front Element Burner | 9500 BTU |
| Left Rear Element Burner | 9500 BTU |
| Center Front Element Burner | 18000 BTU |
| Display | |
| Control Location | Front |
| Exterior | |
| Backlit Knobs | Yes |
| Dimensions and Volume | |
| Height | 2 7/16″ |
| Width | 36″ |
| Depth | 21″ |
| Cutout Height | 7 1/2″ |
| Minimum Cutout Width | 33 7/8″ |
| Minimum Cutout Depth | 19″ |
| Maximum Cutout Width | 35 5/8″ |
| Maximum Cutout Depth | 20″ |
| Electrical Specifications | |
| Minimum Circuit Required | 5 Amps |
| Voltage Rating | 120 V |
| Installation | |
| Gas Supply Connection Location | Top Right |
| Installed Over a Wall Oven | Yes |
| LP Conversion Kit Included | Yes |
| Power Cord Included | Yes |
| Power Supply Connection Location | Right Center |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 51 lbs |
| Prop 65 Label | Yes |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
WARRANTYÂ Â
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
