Description

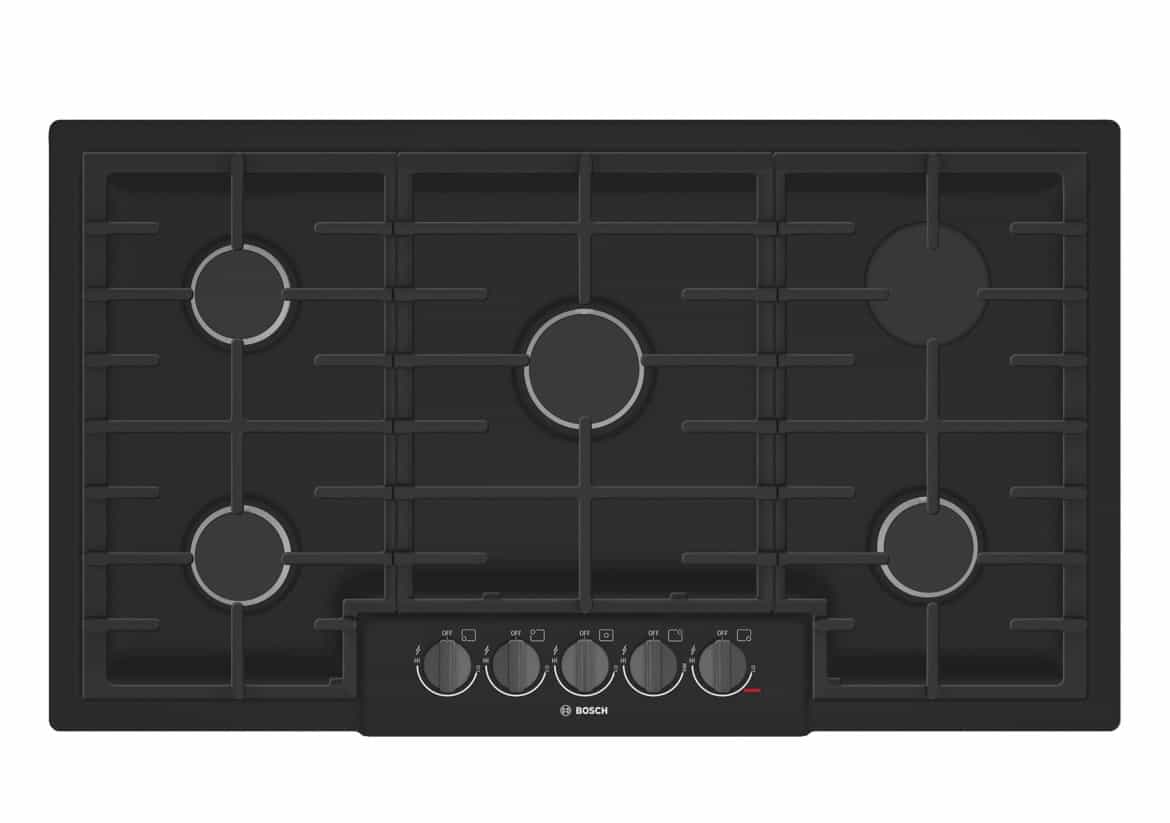

Bosch 800 Series Gas Cooktop 36″ Width Black Stainless Steel NGM8646UC
New Open Box
| Specifications | |
| General | |
| Total NG BTUs | 52400 |
| Total LP BTUs | 47300 |
| ExtraLow® Burners | No |
| Installation | |
| Overall Appliance Dimensions (HxWxD) (in) | 3 13/16” x 37” x 21 1/4” |

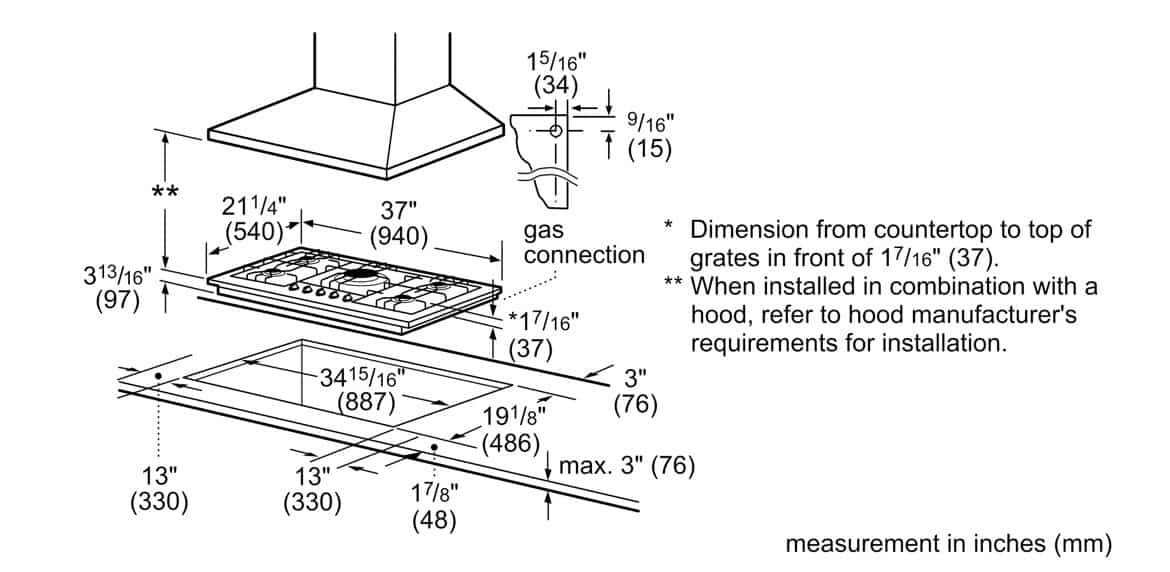

| Required Cutout Size (HxWxD) (in) | 3 13/16” x 34 15/16” x 19 1/8” |
| Gas type | Natural gas 15 mbar (USA) |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27,5 mbar (USA) |
| Plug Type | 120V-3 prong |
| Power Cord Length | 60” |
| Fuse protection | 15 |
| Volts | 120 |
| Product Packaging Dimensions (HxWxD) | 8 3/8” x 43 1/8” x 24 3/4” |
| Design | |
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |
| Comfort and Convenience | |
| Number of Gas Burners | 5 |
| Pedestal Star® Burners | No |
| Sealed Burners | Yes |
| ExtraLow® Burners | No |
| Special Features | Reignition |
| Griddle | No |
| ADA Compliant (When Installed to ADA requirements) | No |
| Connectivity | |
| Home Connect™ | No |
| Safety | |
| Safety | Electronic |
| Accessories | |
| Included Accessories | 1 x nozzle set for liquid gas, 3 x cast iron pan support |
- Powerful 19,000 BTU Burner for Boiling, Searing and Stir-Frying
- STAR-K Sabbath compliant
- Sealed Burners Prevent Spills from Entering the Burner Box

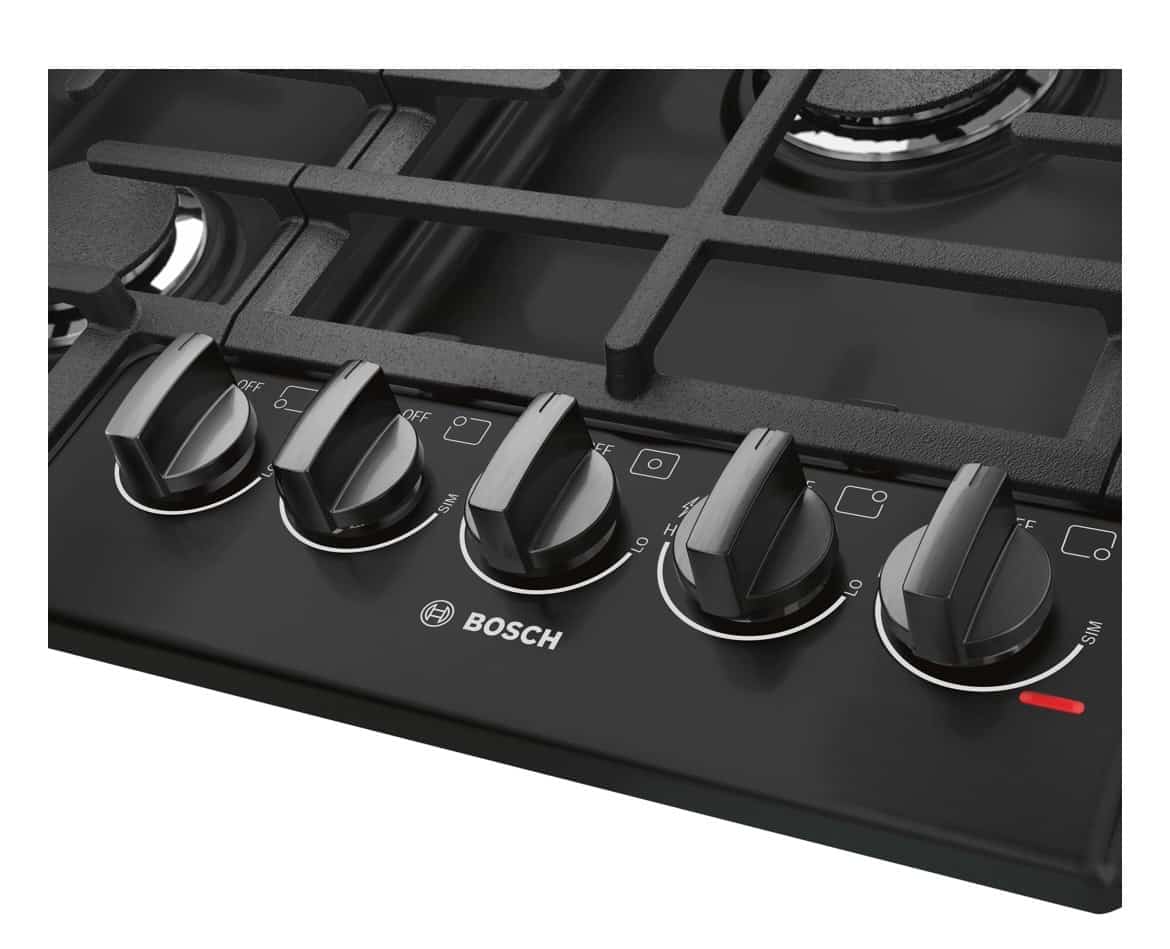

- Push-to-Turn Knobs
- Automatic Electronic Re-Ignition – In Case Flame Goes Out, the Burner is Automatically Re-Ignited
- Distinctive Single Red LED Light Indicates Burners Are On
- LP Conversion Kit Included for Conversion from Natural Gas to Liquid Propane
- Heavy-Duty Black Stainless Steel Finish Metal Knobs for a Premium Look and Feel
- Low-Profile Design for an Integrated Appearance
- Perfect Results are Within Reach With Up-Front Centralized Controls
- Cooktop Design Coordinates with Bosch Black Stainless Steel Ovens and Ventilation
| Energy source | Gas |
|---|---|
| Type of control | sword knobs |
| Safety device | automatic reignition |
| Home Connect |
|---|
| Color of frame | Black, Stainless steel |
|---|---|
| Color of surface | Black, Stainless steel |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Overall appliance dimensions (HxWxD) (mm) | 97 x 940 x 540 mm |
|---|---|
| Net weight (kg) | 20.933 kg |
| Location of 1st heating element | front left |
|---|---|
| Type of heating element | Gas |
| Location of 2nd heating element | center left |
|---|
| Location of 3rd heating element | back left |
|---|---|
| Type of 3rd heating element | Gas |
| Location of 4th heating element | middle back |
|---|
| Location of 5th heating element | back right |
|---|---|
| Type of 5th heating element | Gas |
| Location of 6th heating element | center right |
|---|
| Location of 7th heating element | front right |
|---|---|
| Type of 7th heating element | Gas |
| Location of 8th heating element | front middle / central |
|---|
| Location of 9th heating element | front centre/cent |
|---|
| Type of safety device for gas | Without |
|---|---|
| Power on indicator | |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Main on/off switch |
| Power cord length (cm) | 152 cm |
|---|---|
| Watts (W) | 360 W |
| Energy source | Gas |
| Frequency (Hz) | 60 Hz |
| Location of gas connection | bottom, rear, right |
| Gas connection rating (W) | 15,360 W |
| 1 YEAR PARTS & LABOUR WARRANTY | Yes |
